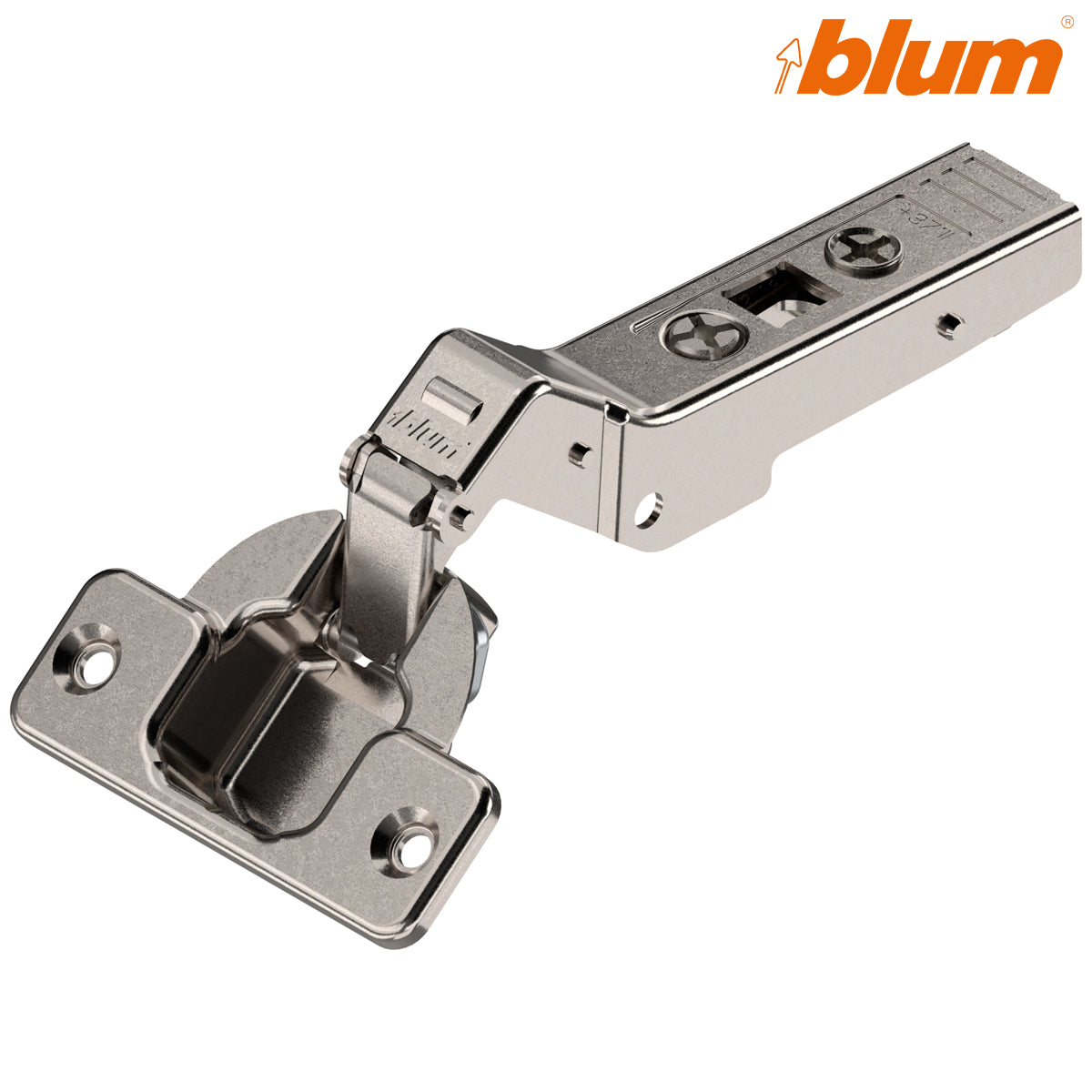

Name: Blum CLIP top 79A9557.T +37° Type II Overlay Hinge – 95°, Sprung, Screw-On
Brand: JULIUS BLUM UK LTD
SKU: HI79A9557T
Price: 2.09 GBP
Availability: InStock

PRODUCT DESCRIPTION

Blum CLIP top 79A9557.T +37° Type II Overlay Screw-On Hinge

The Blum 79A9557.T is a specialised sprung CLIP top concealed hinge for +37° Type II overlay angled-cabinet applications. Its hinge-arm geometry allows a door to operate correctly on a strongly angled or diagonal cabinet construction while providing a controlled 95° opening angle.

This version has a conventional screw-on 35mm hinge cup and a self-closing spring. The hinge attaches to a separately purchased Blum CLIP mounting plate, allowing the door to be fitted and removed from the cabinet without tools.

Blum CLIP top concealed cabinet hinge
Manufacturer part number: 79A9557.T
Hart SKU: HI79A9557T
Blum item number: 03824603
+37° Type II angled-cabinet application
Overlay hinge-arm configuration
95° opening angle
Sprung, self-closing action
Screw-on 35mm steel hinge cup
12.3mm hinge-cup drilling depth
Tool-free CLIP connection to mounting plate
Nickel-plated steel construction
Mounting plate sold separately

Technical specification

Manufacturer	Blum
Product system	CLIP top
Manufacturer part number	79A9557.T
Hart SKU	HI79A9557T
Blum item number	03824603
EAN-13	9002617452235
Cabinet angle	+37° Type II
Application	Overlay angled-cabinet door
Opening angle	95°
Closing action	Sprung/self-closing
Integrated BLUMOTION	No
Cup fixing	Screw-on
Cup diameter	35mm
Cup drilling depth	12.3mm
Fixing-hole centres	45mm
Fixing-hole offset	9.5mm from cup centreline
Drilling distance	3–7mm
Factory-set fixed dimension	0mm
Factory-set gap	1.5mm
Side adjustment	±2mm
Depth adjustment	±2mm
Height adjustment	Via selected mounting plate
Mounting-plate connection	Tool-free CLIP connection
Material	Steel
Finish	Nickel plated
Quantity supplied	One hinge

Screw-on cup drilling

The hinge requires a 35mm cup hole drilled 12.3mm deep. Its two screw-fixing positions are arranged on 45mm centres, with the fixing line positioned 9.5mm from the centreline of the cup. Blum specifies a drilling distance of 3–7mm.

Choosing the mounting plate

A compatible Blum CLIP mounting plate is required and sold separately. The correct plate height depends on the cabinet construction, door thickness, drilling position and required overlay. Because this is a specialised +37° application, confirm the complete hinge and plate geometry before production drilling.

Browse the Blum CLIP top mounting-plate range or view all Blum CLIP top hinges.

Frequently asked questions

Is the Blum 79A9557.T sprung?

Yes. Blum specifies a spring closing mechanism, making this a self-closing hinge. It should not be described as unsprung.

Does this hinge have integrated soft closing?

No. The 79A9557.T is a sprung CLIP top hinge without integrated BLUMOTION.

Is this hinge suitable for TIP-ON?

This sprung version is not the normal hinge specification for a TIP-ON handleless door. TIP-ON applications generally require an unsprung hinge.

Is the hinge completely tool-free?

No. The hinge cup is secured to the door with screws. Once installed, the hinge arm connects to and disconnects from the CLIP mounting plate without tools.

What does +37° Type II mean?

It describes the cabinet angle and the hinge-arm geometry. This is a specialised Type II overlay hinge and should not be substituted with a Type I or Type III hinge solely because the opening angle is similar.

Is a mounting plate included?

No. One hinge is supplied. The correct Blum CLIP mounting plate must be selected and ordered separately.

TECHNICAL DETAILS

Application: Overlay
Finish: Nickel Plated
Colour: Nickel
Material: Steel
