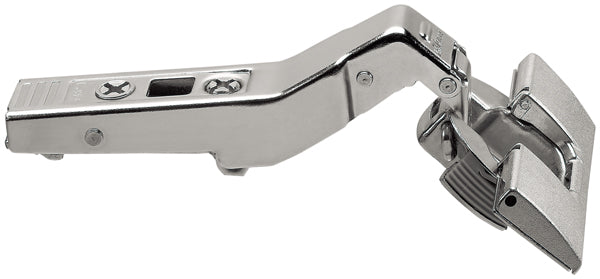

Blum CLIP top 79A9698BT +45° Type I Half-Overlay Hinge – 95°, Sprung, INSERTA

Blum CLIP top 79A9698BT +45° Type I Half-Overlay Hinge – 95°, Sprung, INSERTA

Stock Code: HI79A9698BT

£3.05 GBP
Sale
View full details

PRODUCT DESCRIPTION

Blum CLIP top 79A9698BT +45° Type I Half-Overlay INSERTA Hinge

The Blum 79A9698BT is a sprung CLIP top concealed hinge designed for +45° Type I half-overlay angled-cabinet applications. This specialist hinge geometry is commonly used on corner cabinets with set-back fronts where a door partially overlays a shared cabinet panel.

The hinge provides a 95° opening angle and uses Blum's tool-free INSERTA cup fixing. Once the door has been correctly drilled, the expanding INSERTA mechanism secures the hinge without conventional cup-fixing screws.

This version is self-closing but does not contain integrated BLUMOTION. For integrated, switchable soft closing, see the Blum 79B9698 +45° Type I BLUMOTION INSERTA hinge.

  • Blum CLIP top concealed cabinet hinge
  • Manufacturer part number: 79A9698BT
  • Hart SKU: HI79A9698BT
  • Blum item number: 06919693
  • +45° Type I angled-cabinet application
  • Half-overlay or dual hinge-arm configuration
  • Suitable for corner cabinets with set-back fronts
  • 95° opening angle
  • Sprung, self-closing action
  • Tool-free INSERTA hinge-cup fixing
  • 35mm cup with approximately 13mm drilling depth
  • Tool-free CLIP connection to mounting plate
  • Nickel-plated steel construction
  • Mounting plate sold separately

Technical specification

Manufacturer Blum
Product system CLIP top
Manufacturer part number 79A9698BT
Hart SKU HI79A9698BT
Blum item number 06919693
EAN-13 9002617648195
Cabinet angle +45° Type I
Application Half overlay/dual angled-cabinet door
Typical cabinet construction Corner cabinet with set-back fronts
Opening angle 95°
Closing action Sprung/self-closing
Integrated BLUMOTION No
Cup fixing Tool-free INSERTA
Cup diameter 35mm
Cup drilling depth Approximately 13mm
Additional drilling Two 8mm INSERTA fixing holes
Side adjustment ±1.8mm
Depth adjustment ±2mm
Height adjustment Via selected mounting plate
Mounting-plate connection Tool-free CLIP connection
Material Steel
Finish Nickel plated
Quantity supplied One hinge

INSERTA drilling requirements

Installation requires a 35mm hinge-cup hole and two accurately positioned 8mm auxiliary holes for the INSERTA expanding fixings. The door should be drilled using the Blum INSERTA pattern before the hinge is pressed and locked into place.

Mounting-plate selection

A compatible Blum CLIP mounting plate is required and sold separately. Blum's current +45° Type I planning examples for application numbers 53 and 60 use a 0mm plate such as 173H7100. The correct plate must still be checked against the door thickness, cabinet construction, drilling position and required half overlay.

Browse the Blum CLIP top mounting-plate range or view all Blum CLIP top hinges.

Frequently asked questions

Is the Blum 79A9698BT sprung?

Yes. It has a self-closing spring and should not be described as an unsprung or free-swing hinge.

What is an INSERTA hinge?

INSERTA is Blum's tool-free cup-fixing system. Expanding fixings secure the hinge in a correctly prepared 35mm cup and two-hole drilling pattern without separate cup screws.

Is this an overlay or half-overlay hinge?

It has half-overlay hinge-arm geometry. Hart may also describe this application as dual because the door partially covers a shared cabinet panel.

Does this hinge include BLUMOTION?

No. For integrated, switchable soft closing, use the Blum 79B9698 +45° Type I BLUMOTION INSERTA hinge.

Is this hinge suitable for TIP-ON?

This sprung version is not the normal specification for a TIP-ON handleless door. TIP-ON applications generally require a corresponding unsprung hinge.

What is the difference between 79A9698BT and 79A9658.T?

Both are sprung +45° Type I half-overlay hinges. The 79A9698BT uses tool-free INSERTA cup fixing, while the 79A9658.T uses a conventional screw-on cup.

Is the mounting plate included?

No. One hinge is supplied and the compatible Blum CLIP mounting plate must be ordered separately.
