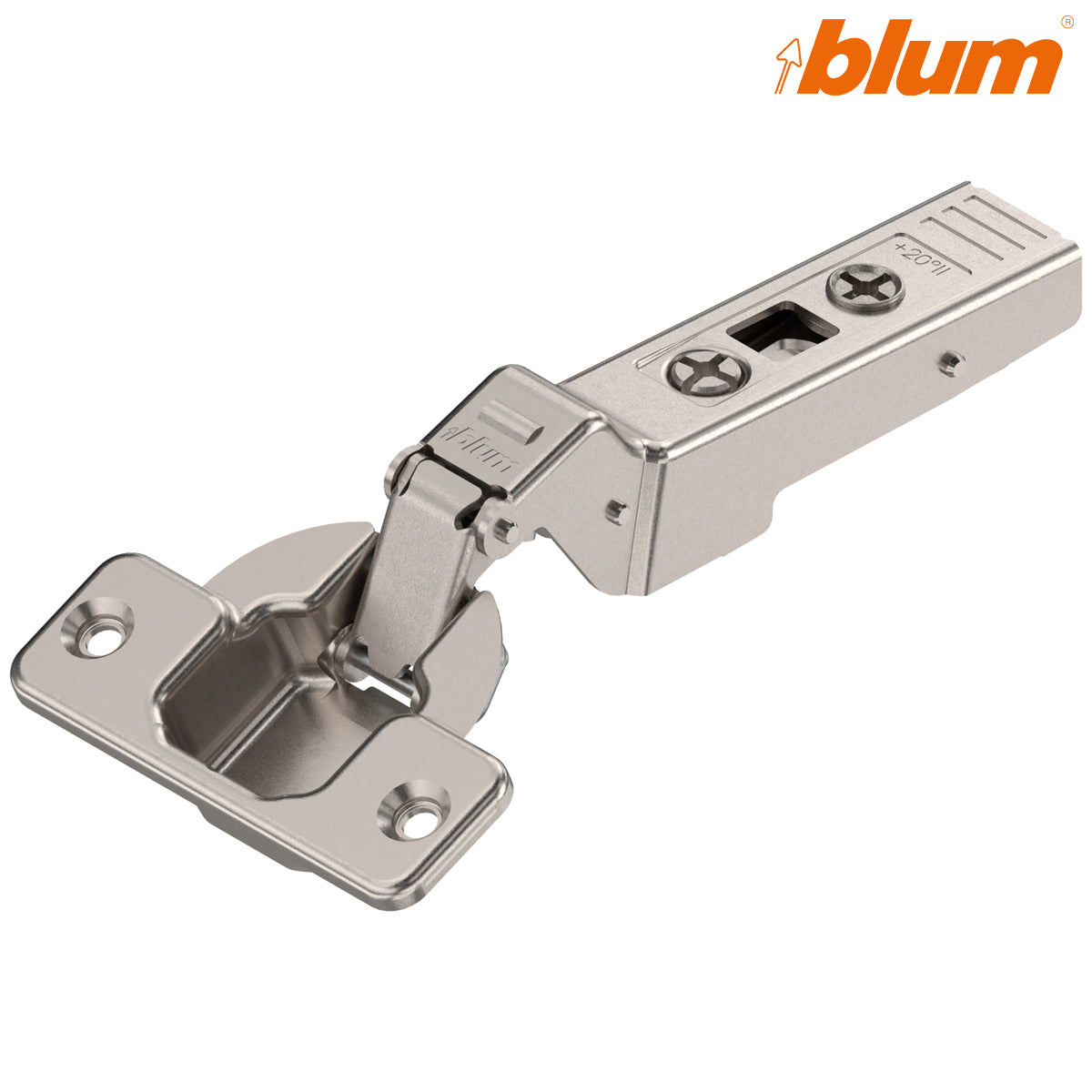

  • Blum 79A9555.T CLIP top +20° Type II overlay sprung screw-on hinge in nickel
1 1

Blum CLIP top 79A9555.T +20° Type II Overlay Hinge – 95°, Sprung, Screw-On, Nickel

Blum CLIP top 79A9555.T +20° Type II Overlay Hinge – 95°, Sprung, Screw-On, Nickel

Stock Code: HI79A9555T

£2.41 GBP
Sale
View full details

PRODUCT DESCRIPTION

Blum CLIP top 79A9555.T +20° Type II Overlay Hinge

The Blum 79A9555.T is a sprung CLIP top concealed hinge for overlay doors on cabinets with a +20° Type II angled application. Its 95° opening angle makes it suitable for angled, diagonal and specialist cabinet constructions where a conventional straight-arm hinge cannot provide the required geometry.

This version has a self-closing spring and a screw-on 35mm hinge cup. It does not contain integrated BLUMOTION. For an equivalent sprung hinge with integrated soft close, see the Blum 79B9555 +20° Type II BLUMOTION hinge.

  • Blum part number: 79A9555.T
  • Hart stock code: HI79A9555T
  • Application: +20° Type II angled cabinet
  • Door configuration: Overlay
  • Opening angle: 95°
  • Closing mechanism: Sprung/self-closing
  • Hinge cup fixing: Screw-on
  • Hinge cup diameter: 35mm
  • Hinge cup drilling depth: 12.3mm
  • Finish: Nickel plated
  • Tool-free CLIP connection to the mounting plate
  • Mounting plate sold separately

Technical details

Product system Blum CLIP top
Cabinet angle +20° Type II
Application Overlay angled hinge
Opening angle 95°
Closing mechanism With spring
Integrated soft close No
Cup assembly Screw-on
Cup diameter 35mm
Cup drilling pattern 45mm
Cup drilling depth 12.3mm
Cup fixing-hole offset 9.5mm
Drilling distance 3–7mm
Factory-set fixed dimension 5.81mm
Side adjustment ±1.8mm
Depth adjustment ±2mm, using spiral screw
Maximum height adjustment ±3mm, depending on mounting plate
Finish Nickel plated

Mounting-plate selection

A compatible Blum CLIP mounting plate is required and is sold separately. For Blum planning application No. 4 at a 20° cabinet angle, Blum specifies the 0mm 173H7100 mounting plate. Other cabinet constructions can require a different plate spacing, so confirm the application against Blum's planning information before drilling.

Browse our Blum CLIP top mounting plates or view the complete Blum CLIP top hinge range.

Frequently asked questions

Is the Blum 79A9555.T hinge sprung?

Yes. Blum's product specification identifies the 79A9555.T as a hinge with a closing spring, providing self-closing action.

Does this hinge have integrated BLUMOTION?

No. This is a standard CLIP top sprung hinge. Choose the Blum 79B9555 if integrated BLUMOTION soft close is required for the same +20° Type II overlay geometry.

Is 79A9555.T the same as 78A9555.T?

No. The 79A9555.T is sprung, while the current 78A9555.T catalogue version is unsprung. They should not be treated as interchangeable when the closing action matters.

Is the mounting plate included?

No. The hinge is supplied individually and requires a compatible Blum CLIP mounting plate, selected according to the cabinet construction.

What size hinge-cup hole is required?

A 35mm hinge-cup hole with a drilling depth of 12.3mm is required. The screw-fixing holes use a 45mm pattern.

TECHNICAL DETAILS

  • Application: Overlay
  • Finish: Nickel Plated
  • Colour: Nickel
  • Material: Steel
