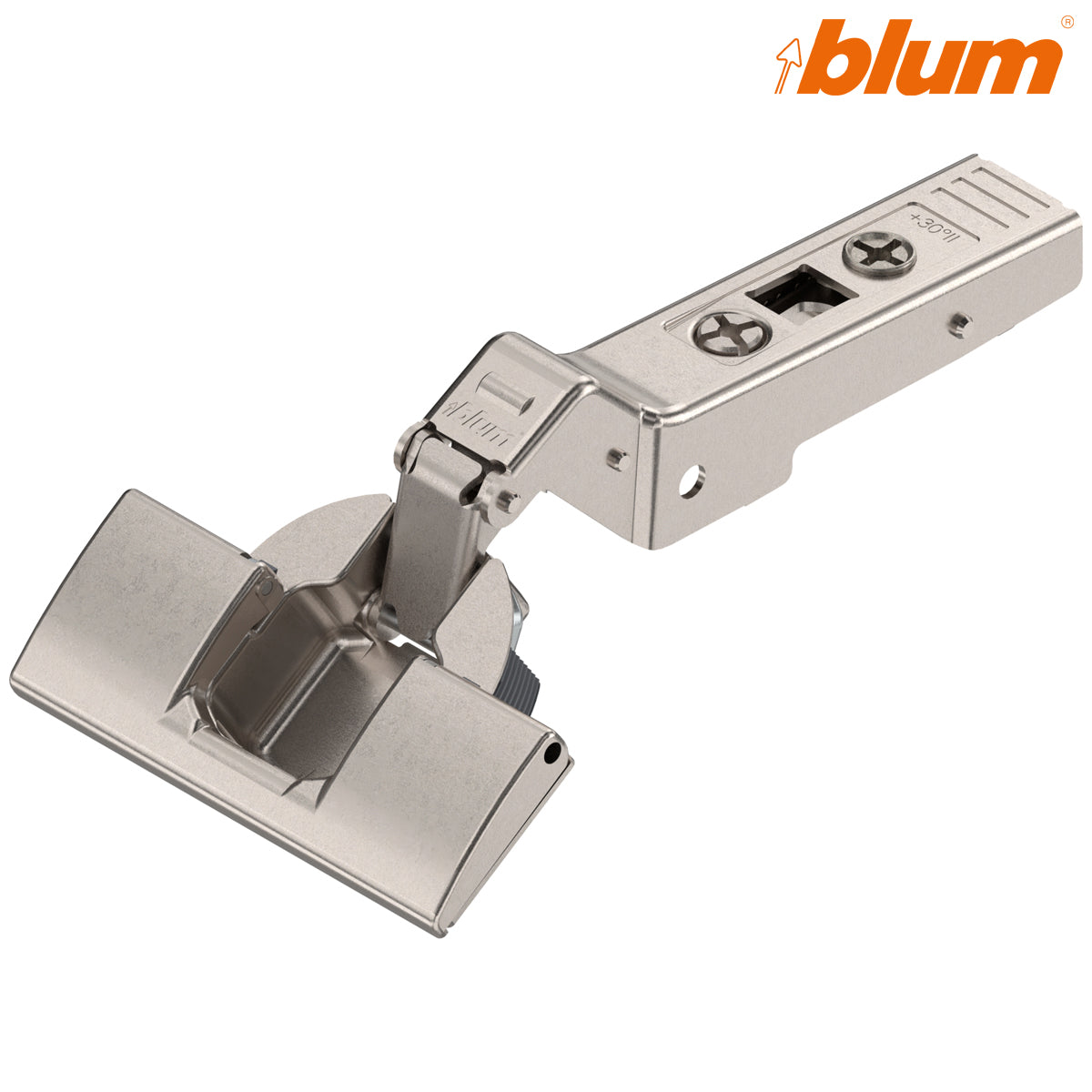

  • Blum 79A9596BT1 CLIP top +30° Type II overlay sprung INSERTA hinge in nickel
1 1

Blum CLIP top 79A9596BT1 +30° Type II Overlay Hinge – 95°, Sprung, INSERTA

Blum CLIP top 79A9596BT1 +30° Type II Overlay Hinge – 95°, Sprung, INSERTA

Stock Code: HI79A9596BT

£3.05 GBP
Sale
View full details

PRODUCT DESCRIPTION

Blum CLIP top 79A9596BT1 +30° Type II Overlay INSERTA Hinge

The Blum 79A9596BT1 is a sprung CLIP top concealed hinge for +30° Type II overlay angled-cabinet applications. It combines a 95° opening angle with Blum's tool-free INSERTA cup fixing, making it suitable for efficiently assembling pre-drilled cabinet doors.

This hinge has a self-closing spring but does not contain integrated BLUMOTION. It is compatible with Blum's optional clip-on BLUMOTION 973A damping system. For a hinge with integrated, switchable soft closing, see the Blum 79B9596 +30° Type II BLUMOTION INSERTA hinge.

  • Blum CLIP top concealed cabinet hinge
  • Manufacturer part number: 79A9596BT1
  • Hart SKU: HI79A9596BT
  • Blum item number: 07369033
  • +30° Type II angled-cabinet application
  • Overlay hinge-arm configuration
  • 95° opening angle
  • Sprung, self-closing action
  • Tool-free INSERTA hinge-cup fixing
  • 35mm cup with 12.6mm drilling depth
  • Compatible with optional clip-on BLUMOTION 973A
  • Tool-free CLIP connection to mounting plate
  • Nickel-plated steel construction
  • Mounting plate sold separately

Technical specification

Manufacturer Blum
Product system CLIP top
Manufacturer part number 79A9596BT1
Hart SKU HI79A9596BT
Blum item number 07369033
EAN-13 9002617673197
Cabinet angle +30° Type II
Application Overlay angled-cabinet door
Opening angle 95°
Closing action Sprung/self-closing
Integrated BLUMOTION No
Optional damping Compatible with clip-on BLUMOTION 973A
Cup fixing Tool-free INSERTA
Cup diameter 35mm
Cup drilling depth 12.6mm
INSERTA fixing holes 2 × 8mm diameter
Fixing-hole centres 45mm
Fixing-hole offset 9.5mm from cup centreline
Drilling distance 3–7mm
Side adjustment ±1.8mm
Depth adjustment ±2mm
Mounting-plate connection Tool-free CLIP connection
Material Steel
Finish Nickel plated
Quantity supplied One hinge

INSERTA drilling pattern

INSERTA installation requires a 35mm hinge-cup hole and two accurately positioned 8mm fixing holes on 45mm centres. Once the door is correctly drilled, the expanding INSERTA mechanism secures the hinge without separate cup-fixing screws.

Mounting-plate selection

A compatible Blum CLIP mounting plate is required and sold separately. Plate height depends on the cabinet construction, door position and required overlay.

Blum planning application Plate height Example mounting plate
No. 21 18mm 175H7190.22
No. 51 9mm 175H7190
No. 6 0mm 173H7100
No. 58 3mm 173H7130

Confirm the mounting plate against the actual cabinet dimensions before drilling. Browse the Blum CLIP top mounting-plate range or view all Blum CLIP top hinges.

Frequently asked questions

Is the Blum 79A9596BT1 sprung?

Yes. The hinge contains a closing spring and is self-closing. The current description should not identify it as unsprung.

What is an INSERTA hinge?

INSERTA is Blum's tool-free hinge-cup fixing system. Expanding fixings secure the hinge in a correctly prepared 35mm cup and two-hole drilling pattern without separate cup screws.

Does this hinge have integrated BLUMOTION?

No. It is compatible with optional clip-on BLUMOTION 973A. For integrated, switchable soft closing, use the Blum 79B9596.

Is this hinge suitable for TIP-ON?

This sprung version is not the normal specification for a TIP-ON handleless door. TIP-ON applications generally require the corresponding unsprung hinge.

What is the difference between 79A9596BT1 and 79A9556.T1?

Both are sprung +30° Type II overlay hinges. The 79A9596BT1 uses tool-free INSERTA cup fixing, while the 79A9556.T1 uses a conventional screw-on cup.

Is this a +30° Type III hinge?

No. This is the Type II overlay configuration. A Type III maximum-overlay hinge uses different arm geometry and should not be substituted without checking the application.

Is the mounting plate included?

No. One hinge is supplied and the correct CLIP mounting plate must be ordered separately.

TECHNICAL DETAILS

  • Application: Overlay
  • Finish: Nickel Plated
  • Colour: Nickel
  • Material: Steel
