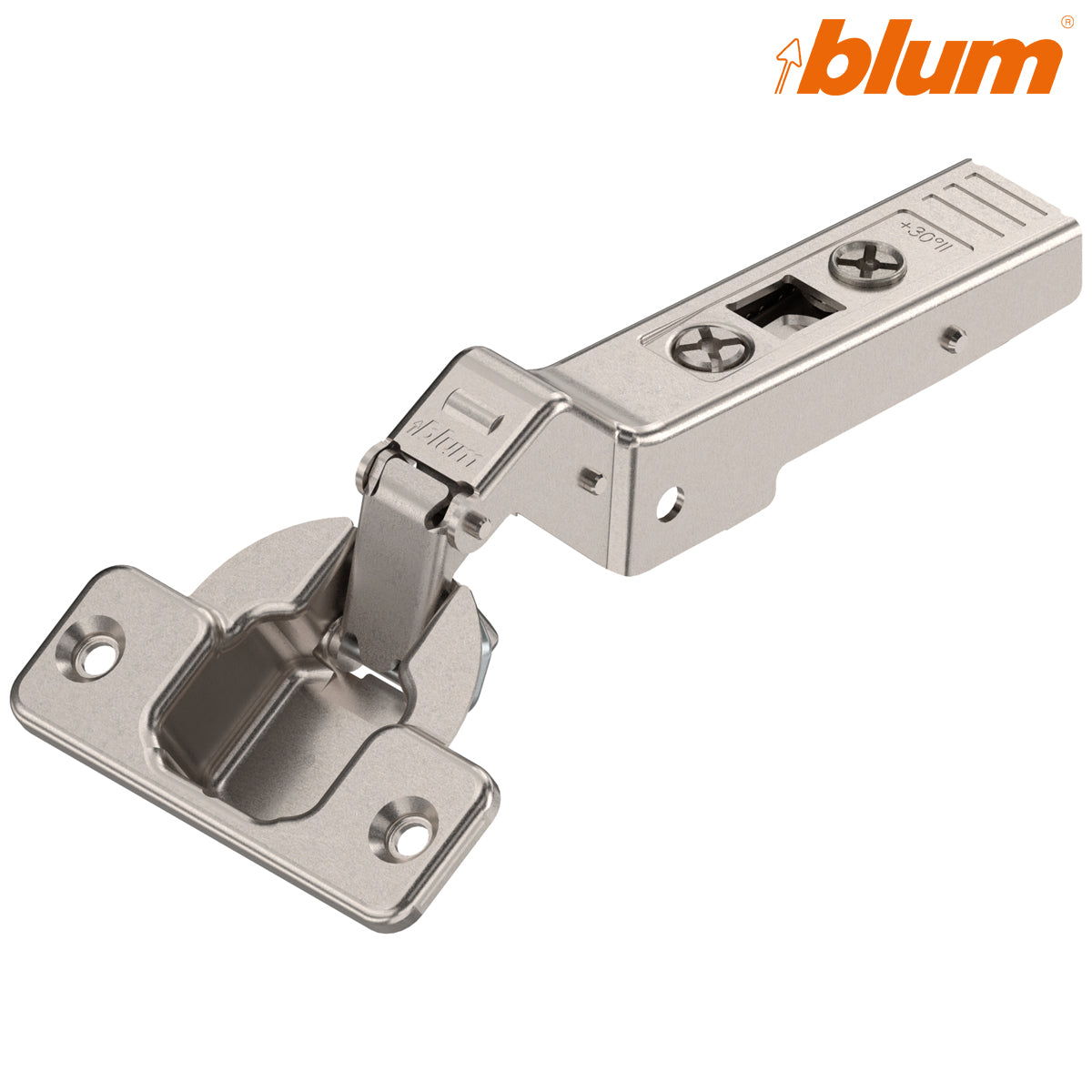

  • Blum 79A9556.T1 CLIP top +30° Type II overlay sprung screw-on hinge in nickel
1 1

Blum CLIP top 79A9556.T1 +30° Type II Overlay Hinge – 95°, Sprung, Screw-On

Blum CLIP top 79A9556.T1 +30° Type II Overlay Hinge – 95°, Sprung, Screw-On

Stock Code: HI79A9556.T

£2.63 GBP
Sale
View full details

PRODUCT DESCRIPTION

Blum CLIP top 79A9556.T1 +30° Type II Overlay Screw-On Hinge

The Blum 79A9556.T1 is a sprung CLIP top concealed hinge designed for +30° Type II overlay angled-cabinet applications. It provides a 95° opening angle and allows an angled or diagonal cabinet door to close securely against the carcass.

This version has a screw-on 35mm hinge cup and a sprung, self-closing mechanism. It does not contain integrated BLUMOTION. For the corresponding integrated soft-close hinge, see the Blum 79B9556 +30° Type II BLUMOTION hinge.

  • Blum CLIP top concealed cabinet hinge
  • Manufacturer part number: 79A9556.T1
  • Hart SKU: HI79A9556.T
  • Blum item number: 07368653
  • +30° Type II angled-cabinet application
  • Overlay hinge-arm configuration
  • 95° opening angle
  • Sprung, self-closing action
  • Screw-on 35mm steel hinge cup
  • 12.3mm hinge-cup drilling depth
  • Tool-free CLIP connection to mounting plate
  • Nickel-plated finish
  • Mounting plate sold separately

Technical specification

Manufacturer Blum
Product system CLIP top
Manufacturer part number 79A9556.T1
Hart SKU HI79A9556.T
Blum item number 07368653
EAN-13 9002617673166
Cabinet angle +30° Type II
Application Overlay angled-cabinet door
Opening angle 95°
Closing action Sprung/self-closing
Integrated BLUMOTION No
Cup fixing Screw-on
Cup diameter 35mm
Cup drilling depth 12.3mm
Fixing-hole centres 45mm
Drilling distance 3–7mm
Side adjustment ±1.8mm
Depth adjustment ±2mm
Mounting-plate connection Tool-free CLIP connection
Material Steel
Finish Nickel plated
Quantity supplied One hinge

Mounting-plate selection

A compatible Blum CLIP mounting plate is required and must be ordered separately. Plate height depends on the cabinet construction, door position and required overlay.

Blum planning application Example plate height Example mounting plate
No. 21 18mm 175H7190.22
No. 51 9mm 175H7190
No. 6 0mm 173H7100
No. 58 3mm 173H7130

Always confirm the required plate using the actual cabinet dimensions before drilling. Browse the Blum CLIP top mounting-plate range or view all Blum CLIP top hinges.

Frequently asked questions

Is the Blum 79A9556.T1 sprung?

Yes. Blum specifies a spring closing mechanism, so this is a self-closing hinge. It should not be described as unsprung.

Is the hinge cup screw-on?

Yes. The 35mm cup is fixed to the door using screws. The hinge arm then connects to a compatible mounting plate using Blum's tool-free CLIP system.

Does this hinge include BLUMOTION?

No. Use the Blum 79B9556 if an integrated, switchable BLUMOTION soft-close mechanism is required.

Is this hinge suitable for TIP-ON?

This sprung version is not the standard specification for a TIP-ON handleless door. TIP-ON applications normally require Blum's corresponding unsprung hinge specification.

What is the difference between Type II and Type III?

Type II and Type III hinges use different hinge-arm geometry. This 79A9556.T1 is the +30° Type II overlay version; it should not be substituted with a +30° Type III maximum-overlay hinge without checking the cabinet design.

Is the mounting plate included?

No. One hinge is supplied. The correct CLIP mounting plate must be selected and ordered separately.

TECHNICAL DETAILS

  • Application: Overlay
  • Finish: Nickel Plated
  • Colour: Nickel
  • Material: Steel
