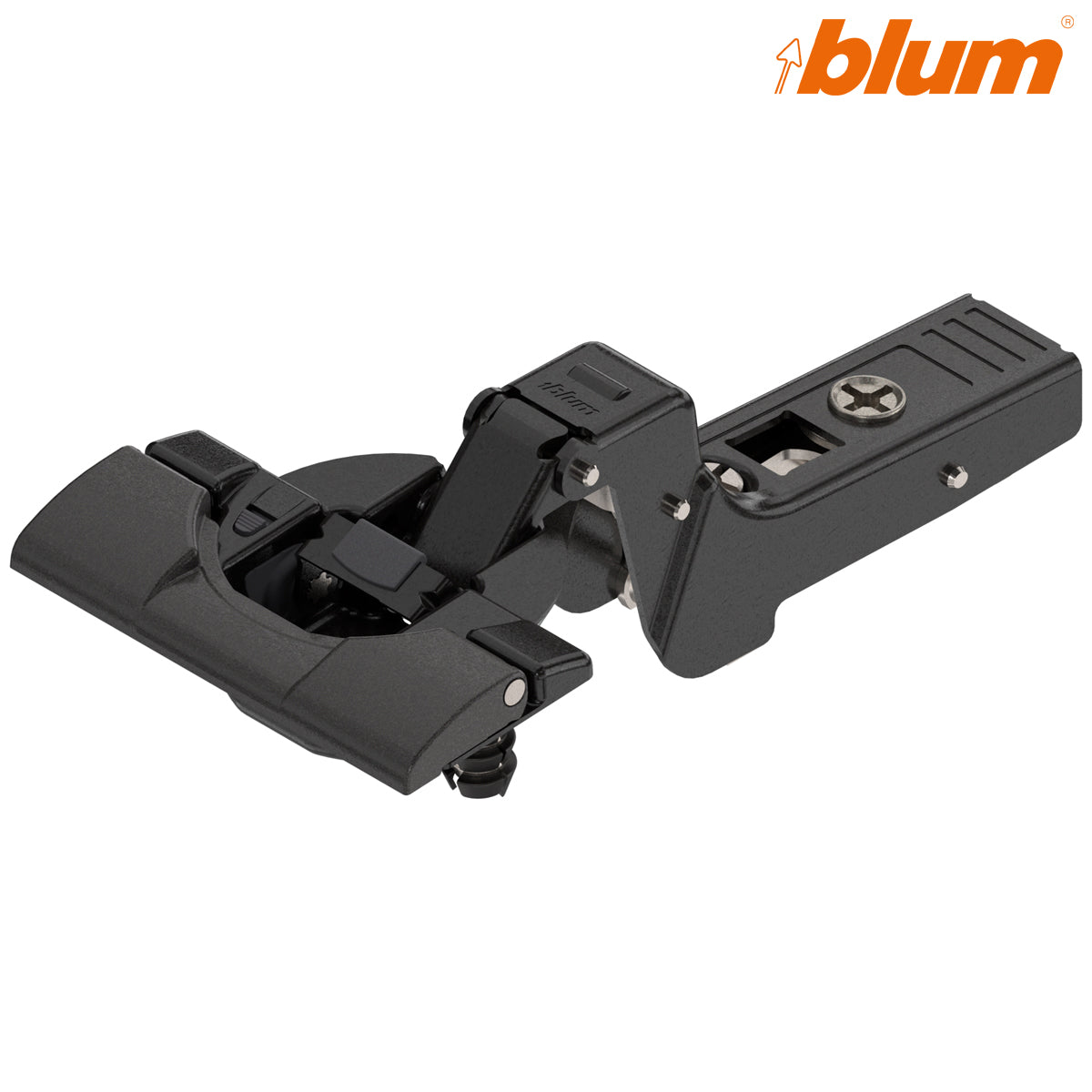

BLUM CLIP BLUMOTION PROFILE HINGE 95deg INSET INSERTA ONYX

BLUM CLIP BLUMOTION PROFILE HINGE 95deg INSET INSERTA ONYX

Stock Code: HIO71B9790

£4.68 GBP
Sale
View full details

PRODUCT DESCRIPTION

Blum CLIP top BLUMOTION 95° Inset Profile Door Hinge – INSERTA, Onyx Black

The Blum 71B9790 CLIP top BLUMOTION hinge is engineered for inset profile and thicker cabinet doors from 16–32mm thick. Unlike a conventional overlay hinge, its full-cranked arm positions the door inside the cabinet opening, producing the correct inset geometry and a neat, flush appearance.

The specialist 95° opening angle provides controlled movement for thicker doors while helping reduce the possibility of the door edge contacting the cabinet. It is suitable for kitchens, bedrooms, fitted furniture, display cabinets and bespoke cabinetry requiring an inset profile-door hinge.

Integrated BLUMOTION soft close

BLUMOTION soft-close technology is integrated inside the hinge boss, delivering a smooth, quiet and controlled closing action without needing a separate damper. The BLUMOTION function can be deactivated on individual hinges when required, which can improve the closing action on particularly small or lightweight doors.

Tool-free INSERTA installation

Blum's INSERTA fixing system allows the hinge boss to be secured without conventional fixing screws. Insert the hinge into the correctly prepared 35mm cup boring and close the INSERTA locking lever to secure it firmly in position. This provides fast, repeatable installation for cabinet production and replacement work.

Key features

  • Genuine Blum CLIP top BLUMOTION concealed hinge
  • Designed for inset profile and thick cabinet doors
  • Suitable for door thicknesses from 16–32mm
  • 95° opening angle
  • Integrated, switchable BLUMOTION soft-close mechanism
  • Tool-free INSERTA hinge-boss fixing
  • Full-cranked hinge arm for inset applications
  • CLIP attachment for quick connection to the mounting plate
  • Three-dimensional adjustment with a suitable mounting plate
  • Contemporary Onyx Black finish
  • Supplied individually

Technical specification

Manufacturer Blum
Blum part number 71B9790
Hart stock code HIO71B9790
Application Inset profile or thick cabinet door
Door thickness 16–32mm
Opening angle 95°
Closing action Sprung with integrated, switchable BLUMOTION
Boss fixing Tool-free INSERTA
Hinge-cup diameter 35mm
Cup drilling depth 13mm
Fixing-hole diameter 8mm
Fixing-hole centres 45mm
Boring distance 3–7mm
Side adjustment ±2mm
Depth adjustment +3/-2mm
Material Steel
Finish Onyx Black
GTIN/EAN 9009494216905
Quantity One hinge

Mounting plate and accessories

This product is supplied as one hinge only. The mounting plate must be purchased separately, and the correct plate height should be selected according to the door thickness, cabinet construction and required door gap.

Important: This is a specialist 95° inset profile-door hinge, not a standard 110° cabinet hinge. Check the door application, drilling position and mounting-plate height before ordering it as a replacement.

Frequently asked questions

What doors is the Blum 71B9790 intended for?

It is designed for inset profile and thicker cabinet doors from 16–32mm thick. An inset door closes inside the cabinet opening rather than covering the cabinet side.

Does this hinge include a mounting plate?

No. It is supplied as one hinge, and the appropriate Blum CLIP mounting plate must be ordered separately.

What does INSERTA mean?

INSERTA is Blum's tool-free hinge-boss fixing system. The hinge is inserted into the prepared cup boring and secured using the integrated locking lever.

Can the BLUMOTION soft-close function be switched off?

Yes. BLUMOTION can be deactivated on individual hinges, which can be useful on particularly small or lightweight cabinet doors.

What drilling pattern does this hinge require?

It requires a 35mm hinge-cup boring, 13mm deep, together with two 8mm fixing holes positioned on 45mm centres.

Can it directly replace a standard 110° inset hinge?

Not automatically. This model has specialist profile-door geometry and a 95° opening angle, so the application, drilling dimensions and mounting-plate height must be checked first.

TECHNICAL DETAILS

  • Application: Inset
  • Colour: Onyx Black
  • Material: Steel
