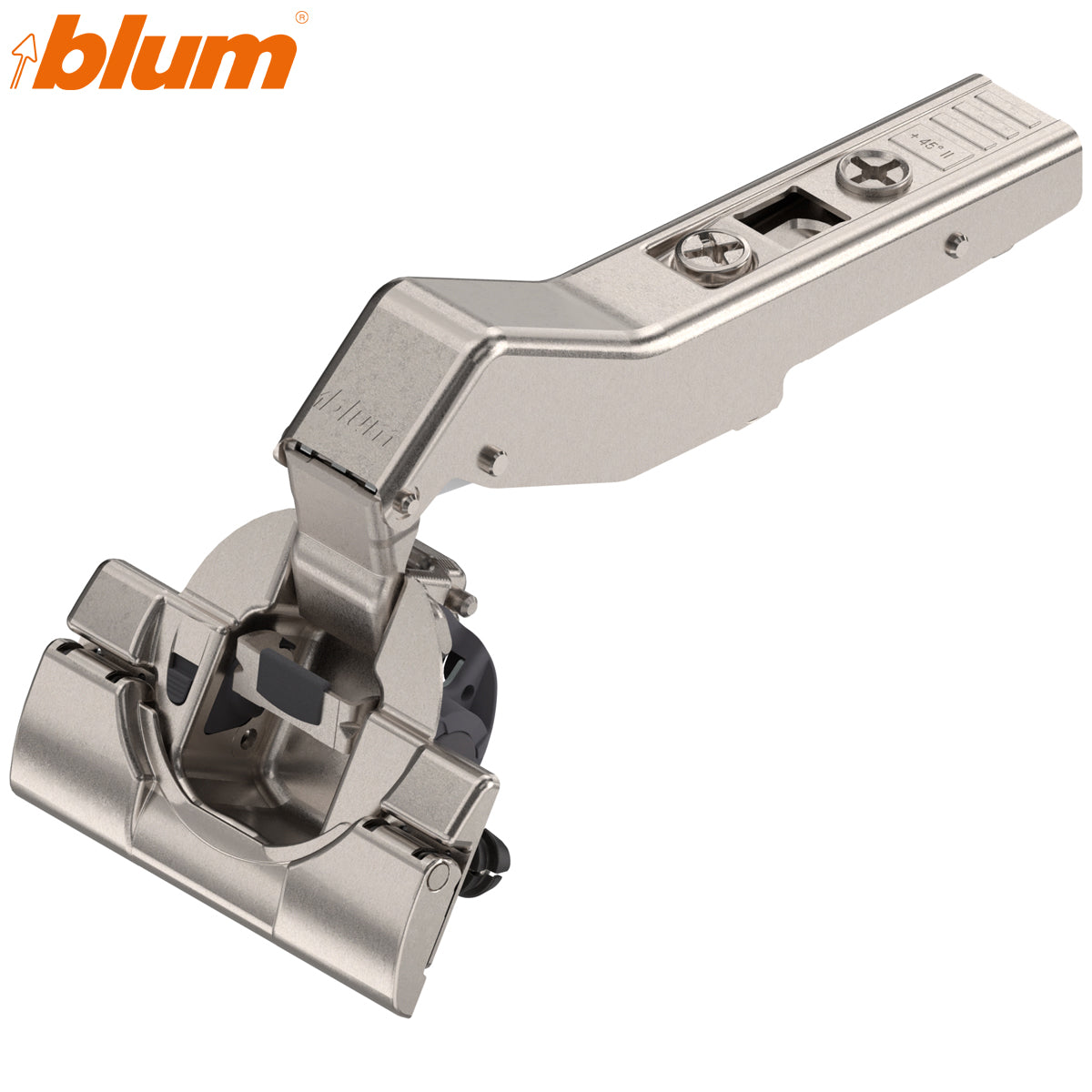

  • Blum 79B3598 CLIP top BLUMOTION +45° Type II overlay INSERTA hinge in nickel
1 1

Blum CLIP top BLUMOTION 79B3598 +45° Type II Overlay Hinge – 110°, INSERTA

Blum CLIP top BLUMOTION 79B3598 +45° Type II Overlay Hinge – 110°, INSERTA

Stock Code: HI79B3598

£4.67 GBP
Sale
View full details

PRODUCT DESCRIPTION

Blum CLIP top BLUMOTION 79B3598 +45° Type II Overlay INSERTA Hinge

The Blum 79B3598 is a CLIP top BLUMOTION concealed hinge designed for +45° Type II overlay angled-cabinet applications. Its specialised hinge-arm geometry allows an overlay door to operate correctly on a strongly angled or diagonal cabinet construction.

The hinge provides a 110° opening angle and a sprung closing action. Integrated BLUMOTION slows the door during closing for smooth, controlled movement and can be switched off on an individual hinge when less damping is required.

The INSERTA cup uses expanding fixings for quick, tool-free installation in a correctly prepared door. For the same hinge geometry with a conventional screw-on cup, see the Blum 79B3558 +45° Type II BLUMOTION screw-on hinge.

  • Blum CLIP top BLUMOTION concealed hinge
  • Manufacturer part number: 79B3598
  • Hart SKU: HI79B3598
  • Blum item number: 09349163
  • +45° Type II angled-cabinet application
  • Overlay hinge-arm configuration
  • 110° opening angle
  • Sprung closing mechanism
  • Integrated, switchable BLUMOTION soft close
  • Tool-free INSERTA hinge-cup fixing
  • 35mm cup with 13mm drilling depth
  • Tool-free CLIP connection to mounting plate
  • Nickel-plated steel construction
  • Mounting plate sold separately

Technical specification

Manufacturer Blum
Product system CLIP top BLUMOTION
Manufacturer part number 79B3598
Hart SKU HI79B3598
Blum item number 09349163
EAN-13 9002617794663
Cabinet angle +45° Type II
Application Overlay angled-cabinet door
Opening angle 110°
Closing action Sprung
Soft close Integrated, switchable BLUMOTION
Cup fixing Tool-free INSERTA
Cup diameter 35mm
Cup drilling depth 13mm
INSERTA fixing holes 2 × 8mm diameter
Fixing-hole centres 45mm
Fixing-hole offset 9.5mm from cup centreline
Drilling distance 3–7mm
Factory-set fixed dimension −1.5mm
Factory-set gap 1mm
Side adjustment ±1.8mm
Depth adjustment ±2mm
Height adjustment Via selected mounting plate
Mounting-plate connection Tool-free CLIP connection
Material Steel
Finish Nickel plated
Quantity supplied One hinge

INSERTA drilling requirements

Installation requires a 35mm hinge-cup hole drilled 13mm deep and two accurately positioned 8mm auxiliary holes on 45mm centres. The INSERTA mechanism expands inside these holes to secure the hinge without conventional cup-fixing screws.

Mounting-plate selection

A compatible Blum CLIP mounting plate is required and sold separately. For Blum's standard +45° Type II overlay application number 9, the current planning information specifies a 0mm mounting plate such as 173H7100.

Final selection must be checked against the door thickness, cabinet dimensions, drilling position and required overlay before production drilling.

Browse the Blum CLIP top mounting-plate range or view all Blum CLIP top hinges.

Frequently asked questions

What is the opening angle of the Blum 79B3598?

The hinge has a 110° opening angle.

Does the hinge include soft closing?

Yes. BLUMOTION is integrated into the hinge arm and can be switched off individually if less damping is required.

What is an INSERTA hinge?

INSERTA is Blum's tool-free cup-fixing system. Expanding fixings secure the hinge in a correctly prepared 35mm cup and two-hole drilling pattern without separate cup screws.

What does +45° Type II mean?

It identifies the cabinet angle and the specialised overlay hinge-arm geometry. Type I, Type II and Type III hinges should not be interchanged without checking the cabinet application.

What is the difference between 79B3598 and 79B3558?

Both are +45° Type II overlay BLUMOTION hinges. The 79B3598 uses tool-free INSERTA cup fixing, while the 79B3558 uses a conventional screw-on cup.

Is this hinge suitable for TIP-ON?

No. This sprung BLUMOTION hinge is intended for self-closing, soft-close doors. Blum identifies 78T3558 as the corresponding unsprung hinge for TIP-ON applications.

Is a mounting plate included?

No. One hinge is supplied and the compatible CLIP mounting plate must be ordered separately.

TECHNICAL DETAILS

  • Application: Overlay
  • Finish: Nickel Plated
  • Colour: Nickel
  • Material: Steel
