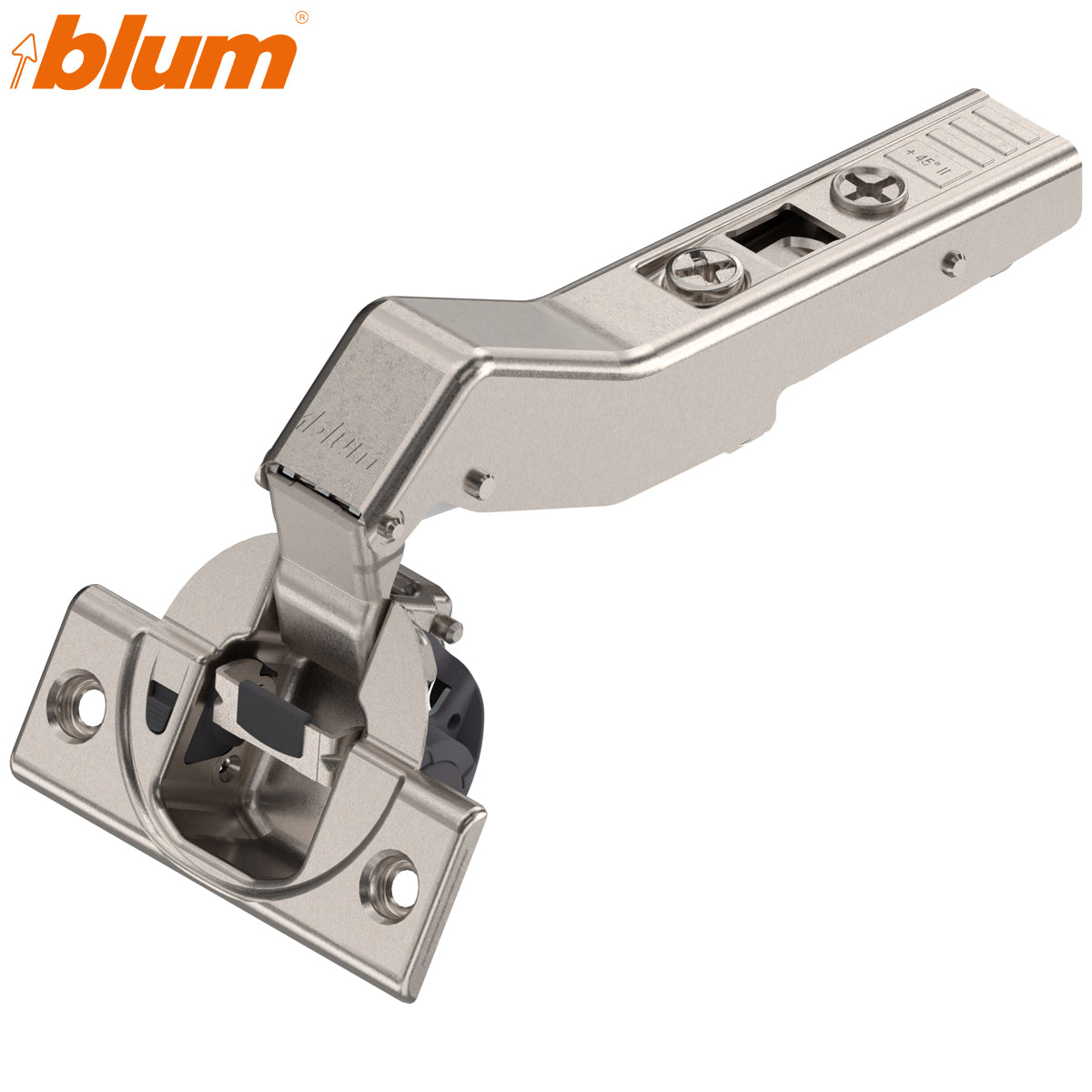

  • Blum 79B3558 CLIP top BLUMOTION +45° Type II overlay screw-on hinge in nickel
1 1

Blum CLIP top BLUMOTION 79B3558 +45° Type II Overlay Hinge – 110°, Screw-On

Blum CLIP top BLUMOTION 79B3558 +45° Type II Overlay Hinge – 110°, Screw-On

Stock Code: HI79B3558

£4.39 GBP
Sale
View full details

PRODUCT DESCRIPTION

Blum CLIP top BLUMOTION 79B3558 +45° Type II Overlay Screw-On Hinge

The Blum 79B3558 is a CLIP top BLUMOTION concealed hinge designed for +45° Type II overlay angled-cabinet applications. Its specialised hinge-arm geometry allows an overlay door to operate correctly on a strongly angled or diagonal cabinet construction.

The hinge provides a generous 110° opening angle and a sprung closing action. Integrated BLUMOTION slows the door during closing for smooth, controlled movement and can be switched off on an individual hinge when less damping is required.

For the same +45° Type II geometry with tool-free INSERTA cup fixing, see the Blum 79B3598 +45° Type II BLUMOTION INSERTA hinge.

  • Blum CLIP top BLUMOTION concealed hinge
  • Manufacturer part number: 79B3558
  • Hart SKU: HI79B3558
  • Blum item number: 09349093
  • +45° Type II angled-cabinet application
  • Overlay hinge-arm configuration
  • 110° opening angle
  • Sprung closing mechanism
  • Integrated, switchable BLUMOTION soft close
  • Screw-on 35mm steel hinge cup
  • 13mm hinge-cup drilling depth
  • Tool-free CLIP connection to mounting plate
  • Nickel-plated steel construction
  • Mounting plate sold separately

Technical specification

Manufacturer Blum
Product system CLIP top BLUMOTION
Manufacturer part number 79B3558
Hart SKU HI79B3558
Blum item number 09349093
EAN-13 9002617794656
Cabinet angle +45° Type II
Application Overlay angled-cabinet door
Opening angle 110°
Closing action Sprung
Soft close Integrated, switchable BLUMOTION
Cup fixing Screw-on
Cup diameter 35mm
Cup drilling depth 13mm
Fixing-hole centres 45mm
Fixing-hole offset 9.5mm from cup centreline
Drilling distance 3–7mm
Factory-set fixed dimension −1.5mm
Factory-set gap 1mm
Side adjustment ±1.8mm
Depth adjustment ±2mm
Height adjustment Via selected mounting plate
Mounting-plate connection Tool-free CLIP connection
Material Steel
Finish Nickel plated
Quantity supplied One hinge

Screw-on cup drilling

The hinge requires a 35mm cup hole drilled 13mm deep. The two screw-fixing positions are arranged on 45mm centres, with the fixing line positioned 9.5mm from the centreline of the hinge cup. Blum specifies a drilling distance of 3–7mm.

Mounting-plate selection

A compatible Blum CLIP mounting plate is required and sold separately. For Blum's standard +45° Type II overlay application number 9, the current planning information specifies a 0mm mounting plate such as 173H7100.

Final selection must be checked against the door thickness, cabinet dimensions, cup-drilling position and required overlay before production drilling.

Browse the Blum CLIP top mounting-plate range or view all Blum CLIP top hinges.

Frequently asked questions

What is the opening angle of the Blum 79B3558?

The hinge has a 110° opening angle.

Does the hinge include soft closing?

Yes. BLUMOTION is integrated into the hinge arm and can be switched off individually if less damping is required.

Is the Blum 79B3558 sprung?

Yes. It contains a closing spring combined with integrated BLUMOTION.

What does +45° Type II mean?

It identifies the cabinet angle and the specialised overlay hinge-arm geometry. Type I, Type II and Type III hinges use different geometry and should not be interchanged without checking the application.

What is the difference between 79B3558 and 79B3598?

Both are +45° Type II overlay BLUMOTION hinges. The 79B3558 uses a conventional screw-on cup, while the 79B3598 uses tool-free INSERTA cup fixing.

Is this hinge suitable for TIP-ON?

No. This sprung BLUMOTION hinge is designed for self-closing, soft-close doors. Blum identifies 78T3558 as the corresponding unsprung hinge for TIP-ON applications.

Is the hinge completely tool-free?

No. The hinge cup is secured to the door with screws. The CLIP connection between the hinge arm and mounting plate is tool-free.

Is a mounting plate included?

No. One hinge is supplied and the compatible CLIP mounting plate must be ordered separately.

TECHNICAL DETAILS

  • Application: Overlay
  • Finish: Nickel Plated
  • Colour: Nickel
  • Material: Steel
