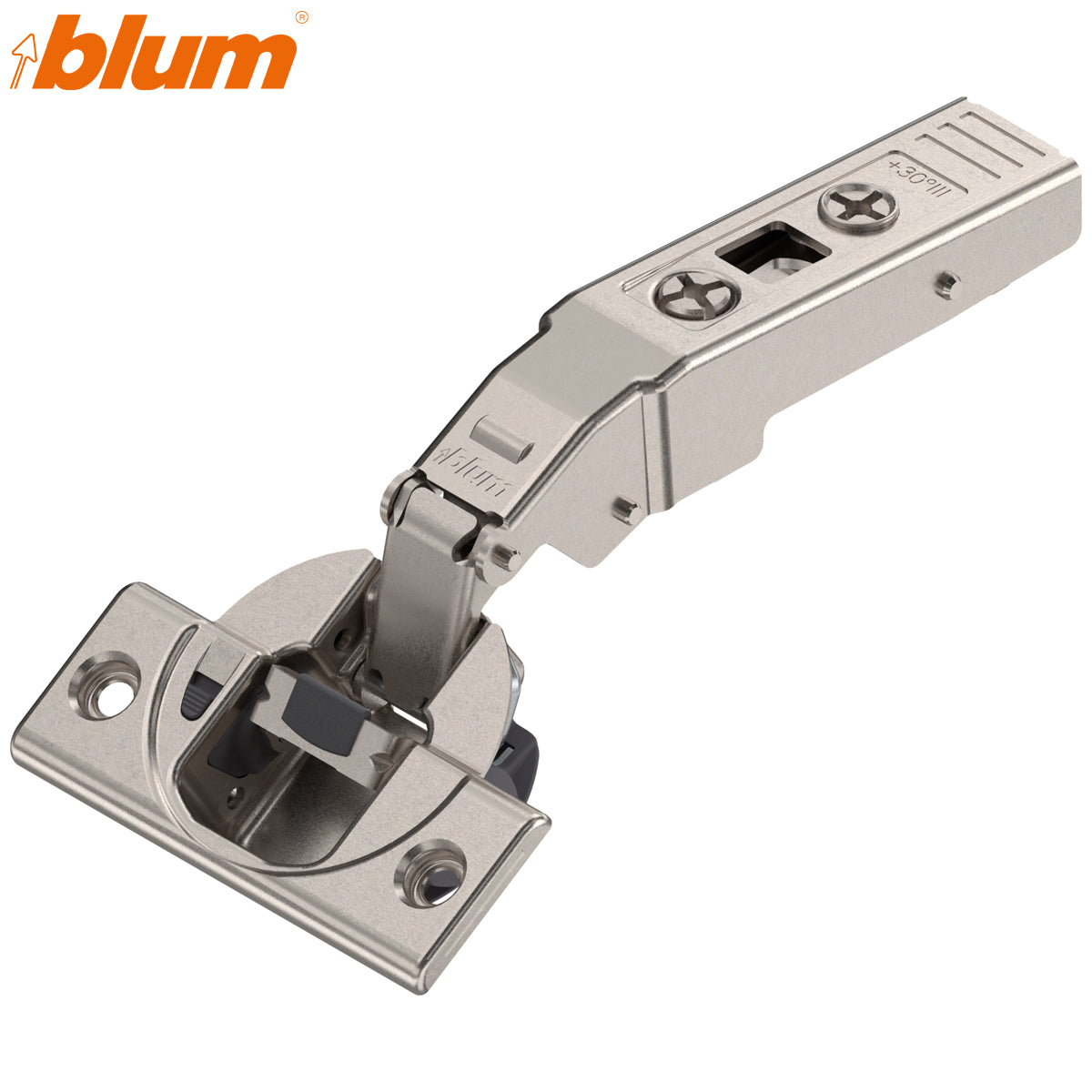

  • Blum 79B9456 CLIP top BLUMOTION +30° Type III maximum-overlay screw-on hinge in nickel
1 1

Blum CLIP top BLUMOTION 79B9456 +30° Type III Maximum-Overlay Hinge – 95°, Screw-On

Blum CLIP top BLUMOTION 79B9456 +30° Type III Maximum-Overlay Hinge – 95°, Screw-On

Stock Code: HI79B9456

£4.20 GBP
Sale
View full details

PRODUCT DESCRIPTION

Blum CLIP top BLUMOTION 79B9456 +30° Type III Maximum-Overlay Hinge

The Blum 79B9456 is a specialised CLIP top BLUMOTION concealed hinge for +30° Type III maximum-overlay angled-cabinet applications. Its hinge-arm geometry provides increased door coverage on angled or diagonal cabinet fronts.

The hinge provides a 95° opening angle and a sprung closing action. Integrated BLUMOTION slows the door during closing for smooth, controlled movement and can be switched off on an individual hinge when less damping is required.

  • Blum CLIP top BLUMOTION concealed hinge
  • Manufacturer part number: 79B9456
  • Hart SKU: HI79B9456
  • Blum item number: 09348243
  • +30° Type III angled-cabinet application
  • Maximum-overlay hinge-arm configuration
  • 95° opening angle
  • Sprung closing mechanism
  • Integrated, switchable BLUMOTION soft close
  • Screw-on 35mm steel hinge cup
  • 13mm hinge-cup drilling depth
  • Tool-free CLIP connection to mounting plate
  • Nickel-plated steel construction
  • Mounting plate sold separately

Technical specification

Manufacturer Blum
Product system CLIP top BLUMOTION
Manufacturer part number 79B9456
Hart SKU HI79B9456
Blum item number 09348243
EAN-13 9002617794571
Cabinet angle +30° Type III
Application Maximum-overlay angled-cabinet door
Opening angle 95°
Closing action Sprung
Soft close Integrated, switchable BLUMOTION
Cup fixing Screw-on
Cup diameter 35mm
Cup drilling depth 13mm
Fixing-hole centres 45mm
Fixing-hole offset 9.5mm from cup centreline
Drilling distance 3–7mm
Factory-set fixed dimension 17.93mm
Factory-set gap 1.5mm
Side adjustment ±2mm
Depth adjustment ±2mm
Height adjustment Via selected mounting plate
Mounting-plate connection Tool-free CLIP connection
Material Steel
Finish Nickel plated
Quantity supplied One hinge

Screw-on cup drilling

The hinge requires a 35mm cup hole drilled 13mm deep. Its two screw-fixing positions are arranged on 45mm centres, with the fixing line positioned 9.5mm from the centreline of the hinge cup. Blum specifies a drilling distance of 3–7mm.

Mounting-plate selection

A compatible Blum CLIP mounting plate is required and sold separately. For Blum's +30° Type III maximum-overlay application number 41, the current planning information specifies a 6mm mounting plate such as 175H9160.

Final selection must be checked against the actual door thickness, cabinet dimensions, drilling position and required maximum overlay before production drilling.

Browse the Blum CLIP top mounting-plate range or view all Blum CLIP top hinges.

Frequently asked questions

What is the opening angle of the Blum 79B9456?

The hinge has a 95° opening angle.

Does the hinge include soft closing?

Yes. BLUMOTION is integrated into the hinge arm and can be switched off individually if less damping is required.

Is the Blum 79B9456 sprung?

Yes. It contains a closing spring combined with integrated BLUMOTION.

What does +30° Type III mean?

It identifies the cabinet angle and the specialised maximum-overlay hinge-arm geometry. A +30° Type II overlay hinge uses different geometry and is not an automatic substitute.

Is an INSERTA version available?

Blum identifies 79B9496 as the corresponding +30° Type III BLUMOTION hinge with tool-free INSERTA cup fixing. Check availability before specifying it.

Is this hinge suitable for TIP-ON?

No. This sprung BLUMOTION hinge is intended for self-closing, soft-close doors. Blum identifies 78A9456.T as the corresponding unsprung hinge for TIP-ON applications.

Is the hinge completely tool-free?

No. The hinge cup is secured to the door with screws. The CLIP connection between the hinge arm and mounting plate is tool-free.

Is a mounting plate included?

No. One hinge is supplied and the compatible CLIP mounting plate must be ordered separately.

TECHNICAL DETAILS

  • Application: Overlay
  • Finish: Nickel Plated
  • Colour: Nickel
  • Material: Steel
