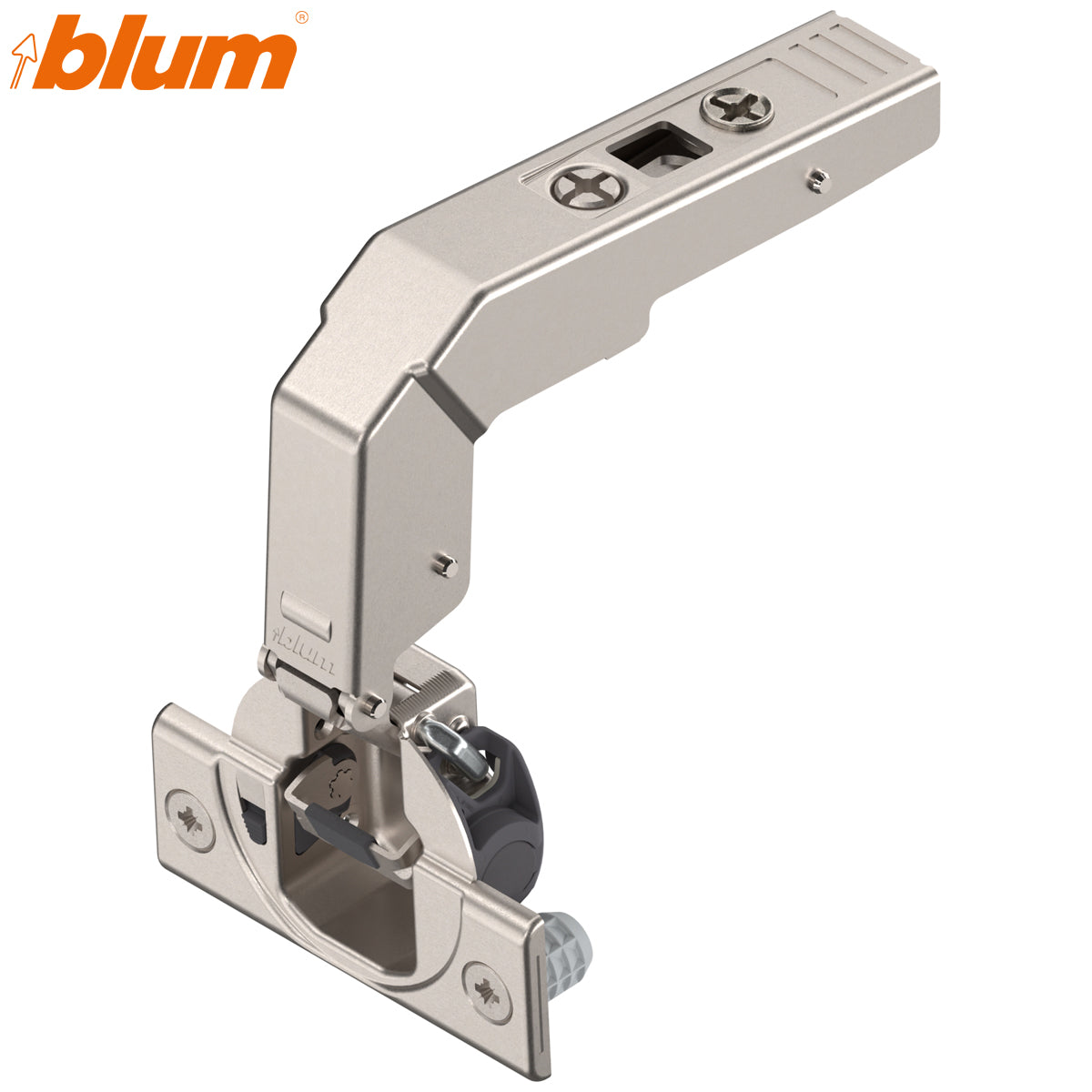

  • Blum 79B9980 CLIP top BLUMOTION 95° overlay blind-corner knock-in hinge in nickel
1 1

Blum 79B9980 CLIP top BLUMOTION 95° Overlay Blind-Corner Knock-In Hinge – Nickel

Blum 79B9980 CLIP top BLUMOTION 95° Overlay Blind-Corner Knock-In Hinge – Nickel

Stock Code: HI79B9980

£6.22 GBP
Sale
View full details

PRODUCT DESCRIPTION

Blum 79B9980 CLIP top BLUMOTION 95° Overlay Blind-Corner Hinge

The Blum 79B9980 is a specialist 95° overlay blind-corner hinge with a knock-in hinge-cup fixing. It is designed for cabinet doors that overlay the supporting blind-corner frame or muntin and features a 37mm dimension A.

Integrated BLUMOTION provides smooth, controlled soft closing and can be switched off at an individual hinge when necessary. The sprung mechanism pulls the door closed, while the CLIP connection allows the door to be attached to or removed from the mounting plate without tools.

Key features

  • Specialist hinge for overlay blind-corner cabinets
  • 95° opening angle
  • Integrated, switchable BLUMOTION soft close
  • Sprung self-closing mechanism
  • Knock-in 35mm hinge-cup fixing
  • Two pre-mounted dowels for prepared 8mm fixing holes
  • 37mm dimension A
  • Nickel-plated steel hinge cup and arm
  • CLIP attachment for tool-free door installation and removal
  • Three-dimensional adjustment with a suitable mounting plate

Technical specifications

Manufacturer Blum
Manufacturer part number 79B9980
Blum item number 05213288
Hart SKU HI79B9980
Application Overlay blind-corner door
Opening angle 95°
Closing mechanism Sprung with integrated, switchable BLUMOTION
Hinge-cup fixing Knock-in
Hinge-cup diameter 35mm
Hinge-cup drilling depth 13mm
Fixing-hole diameter 8mm
Fixing-hole spacing 45mm
Fixing-hole offset 9.5mm
Permitted cup drilling distance 3–7mm
Dimension A 37mm
Factory-set fixed dimension 9mm
Side adjustment ±2.5mm
Depth adjustment ±1mm
Height adjustment ±3mm through the mounting plate
Finish Nickel plated
GTIN/EAN 9002617813883
Pack contents 1 hinge

Knock-in hinge-cup preparation

The door requires a 35mm hinge-cup hole drilled to a depth of 13mm. Two additional 8mm fixing holes are required at 45mm centres, positioned with a 9.5mm offset from the hinge-cup centre line.

The pre-mounted knock-in dowels are pressed into the prepared fixing holes. Suitable Blum assembly equipment or an appropriate insertion method should be used to ensure that the hinge cup is seated squarely and without damage.

Mounting-plate selection

For the overlay blind-corner application, mounting-plate spacing is determined by the thickness of the supporting frame or muntin:

Frame or muntin thickness Mounting-plate spacing
16mm 6mm
19mm 3mm
22mm 0mm

Door thickness, cup drilling distance and the required minimum gap must also be considered during planning. Blum provides calculation values for fronts from 16–32mm thick and recommends trial fitting for certain thicker-front combinations.

Please note: The mounting plate is not included. Select the mounting-plate spacing according to the actual frame thickness before drilling.

79B9980 or 79B9950?

Both hinges have the same 95° overlay blind-corner geometry and integrated BLUMOTION. Choose the 79B9980 for knock-in hinge-cup fixing or the 79B9950 where a conventional screw-on hinge cup is preferred.

Related hinges

Frequently asked questions

Is this a knock-in or knock-on hinge?

The correct Blum description is knock-in. The hinge cup has two pre-mounted dowels that fit into prepared 8mm holes in the door.

Does the hinge include BLUMOTION?

Yes. BLUMOTION soft closing is integrated into the hinge and can be switched off individually when required.

Is the knock-in hinge cup tool-free?

The cup has pre-mounted fixing dowels, but it should be pressed into the prepared door holes using suitable assembly equipment. The separate CLIP connection between the hinge arm and mounting plate is the tool-free door attachment.

Which mounting plate should I use?

Plate spacing depends on the frame thickness. Blum specifies 6mm spacing for a 16mm frame, 3mm for a 19mm frame and 0mm for a 22mm frame at the factory setting.

What is the correct hinge-cup drilling depth?

The 35mm hinge-cup hole requires a drilling depth of 13mm.

TECHNICAL DETAILS

  • Application: Overlay
  • Finish: Nickel Plated
  • Colour: Nickel
  • Material: Steel
