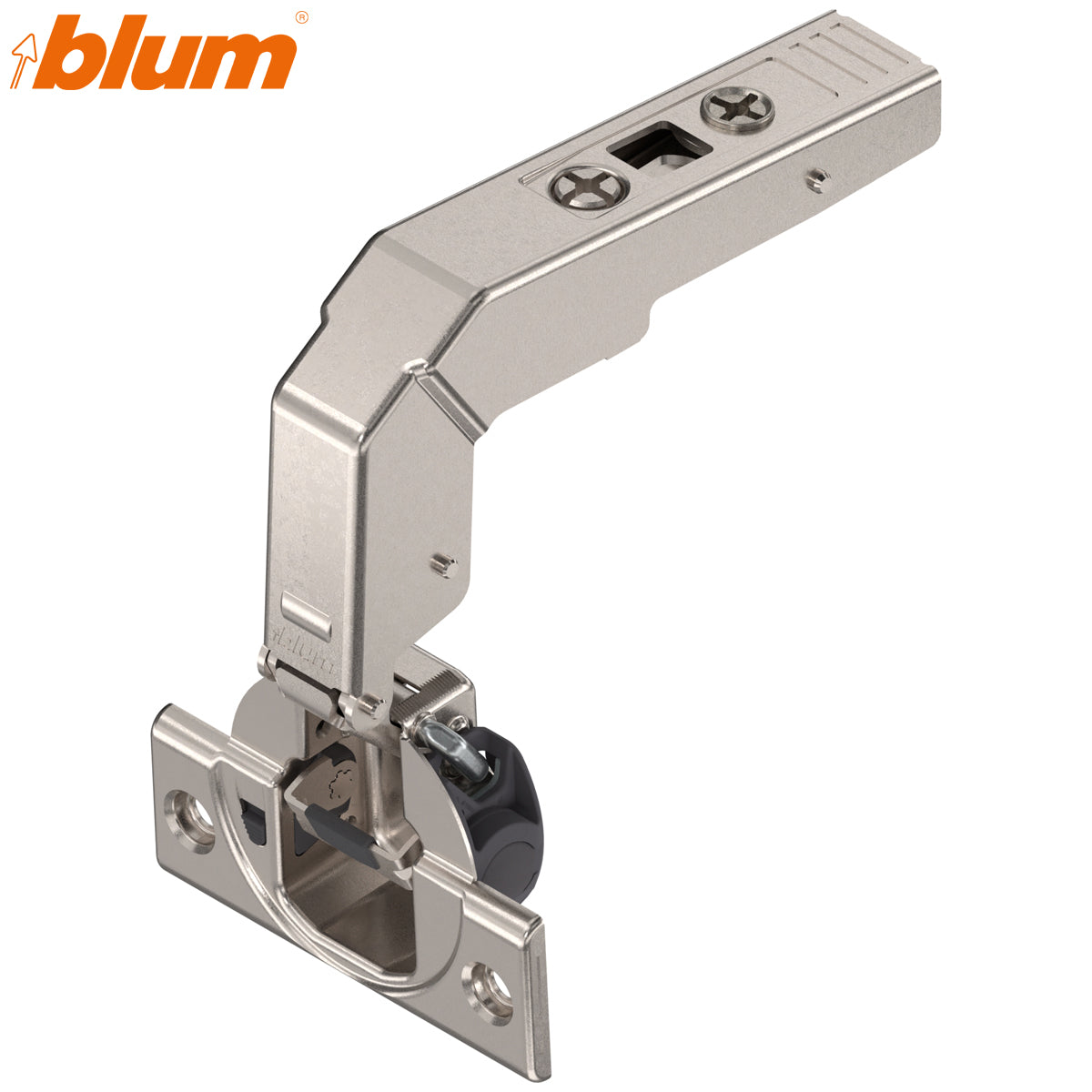

Name: Blum 79B9950 CLIP top BLUMOTION 95° Overlay Blind-Corner Screw-On Hinge – Nickel
Brand: JULIUS BLUM UK LTD
SKU: HI79B9950
Price: 6.39 GBP
Availability: InStock

PRODUCT DESCRIPTION

Blum 79B9950 CLIP top BLUMOTION 95° Overlay Blind-Corner Hinge

The Blum 79B9950 is a specialist 95° overlay blind-corner hinge for cabinet doors that overlay the supporting frame or muntin. Its purpose-designed geometry, including a 37mm dimension A, distinguishes it from the 79B9550 inset blind-corner hinge.

Integrated BLUMOTION provides smooth, controlled soft closing and can be switched off at an individual hinge when required. The sprung mechanism pulls the door closed, while the CLIP connection allows the door to be attached to or removed from the mounting plate without tools.

Key features

Specialist hinge for overlay blind-corner cabinet applications
95° opening angle
Integrated, switchable BLUMOTION soft close
Sprung self-closing mechanism
Screw-on 35mm hinge-cup fixing
37mm dimension A
Nickel-plated steel hinge cup and arm
CLIP attachment for tool-free door installation and removal
Three-dimensional adjustment with a suitable mounting plate

Technical specifications

Manufacturer	Blum
Manufacturer part number	79B9950
Blum item number	05439828
Hart SKU	HI79B9950
Application	Overlay blind-corner door
Opening angle	95°
Closing mechanism	Sprung with integrated, switchable BLUMOTION
Hinge-cup fixing	Screw-on
Hinge-cup diameter	35mm
Hinge-cup drilling depth	13mm
Hinge-cup fixing-hole spacing	45mm
Fixing-hole offset	9.5mm
Permitted cup drilling distance	3–7mm
Dimension A	37mm
Factory-set fixed dimension	9mm
Side adjustment	±2.5mm
Depth adjustment	±1mm
Height adjustment	±3mm through the mounting plate
Finish	Nickel plated
GTIN/EAN	9002617844832
Pack contents	1 hinge

Mounting-plate selection

The correct mounting-plate spacing is determined by the thickness of the frame or muntin being overlaid. Blum provides the following factory-setting combinations:

Frame or muntin thickness	Mounting-plate spacing
16mm	6mm
19mm	3mm
22mm	0mm

Door thickness, hinge-cup drilling distance and the required minimum gap must also be considered during planning. Blum provides calculation values for fronts from 16–32mm thick and recommends trial fitting for certain thicker-front combinations.

Please note: The mounting plate and hinge-cup fixing screws are not included unless stated separately. Select the mounting-plate spacing to suit the actual frame thickness before drilling.

79B9950 or 79B9550?

Choose the 79B9950 when the door overlays a blind-corner frame or muntin. Choose the 79B9550 for an inset blind-corner door. Although the part numbers are similar, they have different hinge-arm geometry and are not interchangeable applications.

Related hinges

Frequently asked questions

Is 79B9950 the correct Blum part number?

Yes. Blum 79B9950 is the screw-on CLIP top BLUMOTION hinge for an overlay blind-corner application. It should not be confused with 79B9550, which is intended for an inset blind-corner application.

Does the hinge include soft closing?

Yes. BLUMOTION soft closing is integrated into the hinge and can be switched off individually when necessary.

What does screw-on mean?

It means the 35mm hinge cup is secured to the cabinet door with screws. It does not refer to the separate mounting plate.

Which mounting plate should I use?

Plate spacing depends on the frame thickness. Blum specifies 6mm spacing for a 16mm frame, 3mm for a 19mm frame and 0mm for a 22mm frame at the factory setting.

What is the correct cup drilling depth?

The 35mm hinge cup requires a drilling depth of 13mm.

TECHNICAL DETAILS

Application: Overlay
Finish: Nickel Plated
Colour: Nickel
Material: Steel
