Name: Blum 71B9690 BLUMOTION 95° Thick-Door Half Overlay INSERTA Hinge – Nickel
Brand: JULIUS BLUM UK LTD
SKU: HI71B9690
Price: 4.32 GBP
Availability: InStock

PRODUCT DESCRIPTION

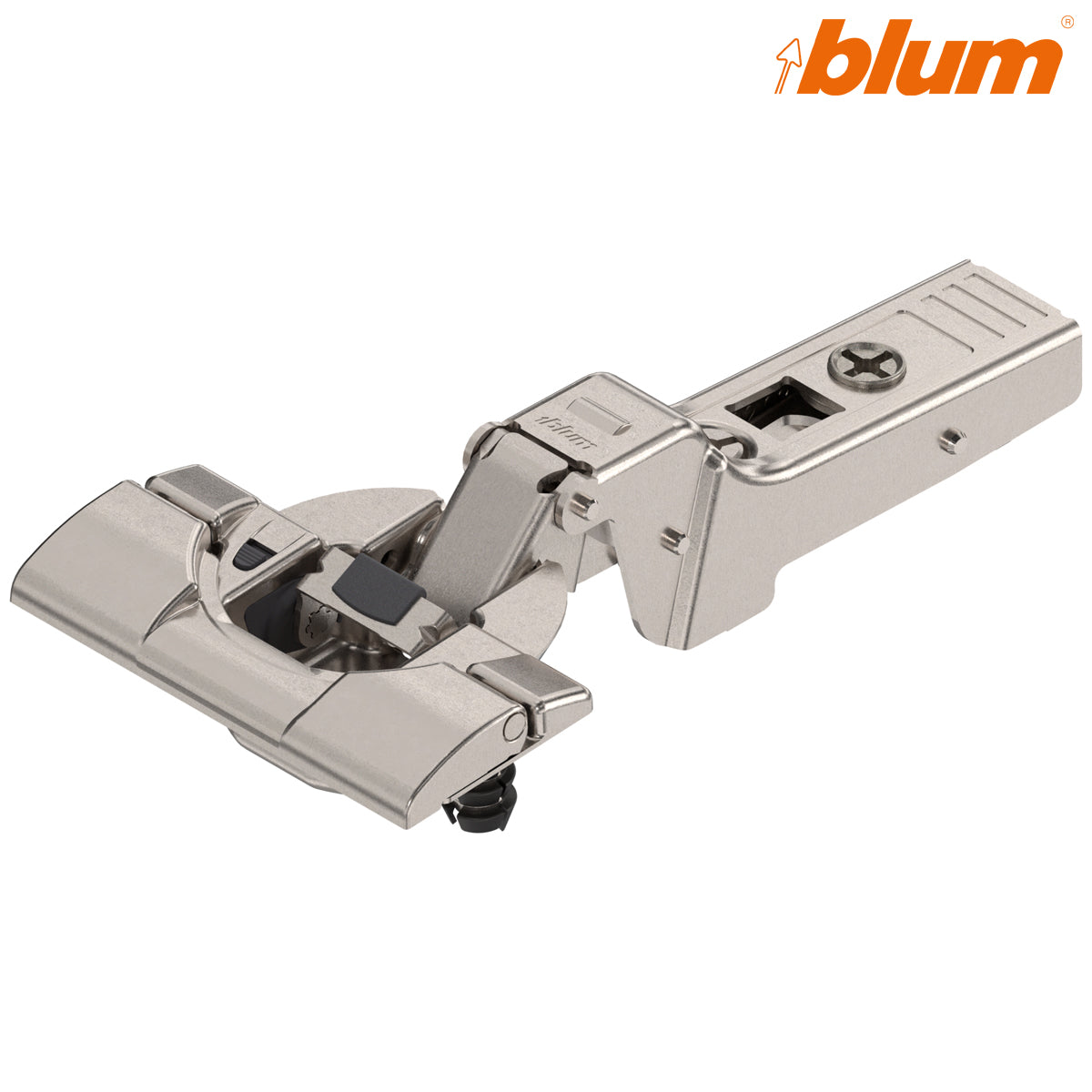

Blum 71B9690 CLIP top BLUMOTION 95° Half Overlay INSERTA Hinge

The Blum 71B9690 is a nickel-plated CLIP top BLUMOTION hinge designed for thick and profiled cabinet doors. Its dual, commonly called half-overlay, hinge arm is intended for installations where two doors share the same central cabinet partition.

The hinge opens to 95° and features Blum's integrated BLUMOTION mechanism for controlled, quiet door closing. Its INSERTA hinge cup provides fast, tool-free attachment to a correctly prepared door drilling pattern.

Key features

95° opening angle
Dual or half-overlay cabinet-door application
Designed for thick and profiled furniture doors
Suitable for front thicknesses from approximately 16mm to 32mm, subject to application planning
Integrated BLUMOTION soft-close mechanism
BLUMOTION can be deactivated for smaller or lightweight doors
Tool-free INSERTA hinge-cup installation
35mm diameter hinge cup
Approximately 13mm cup drilling depth
Tool-free CLIP connection between the hinge and mounting plate
Three-dimensional door adjustment
Sprung, self-closing hinge action
Nickel-plated steel construction
Supplied as one hinge

What is a dual or half-overlay hinge?

A dual or half-overlay hinge is typically used when two cabinet doors are mounted to opposite sides of the same central partition. Each closed door covers only part of the cabinet panel edge. This differs from a full-overlay hinge, where a single door covers most of the panel edge, and an inset hinge, where the door sits inside the cabinet opening.

INSERTA tool-free cup fixing

The INSERTA mechanism secures the hinge cup to the door without conventional fixing screws. The door must be machined with the correct 35mm cup hole and INSERTA fixing pattern. Once positioned, the INSERTA locking mechanism is pressed into place to secure the hinge.

INSERTA describes the hinge-to-door fixing; it does not replace the separate cabinet mounting plate.

Adjustment and planning

Height adjustment: up to approximately ±3mm, depending on the mounting plate
Side adjustment: approximately ±2mm
Depth adjustment: approximately +3/−2mm
Recommended cup drilling distance: 3–7mm, subject to the door profile and required overlay

Door thickness alone does not confirm compatibility. The cup distance, door-edge profile, mounting-plate height, overlay, minimum reveal and clearance at the 95° opening position should all be checked during planning.

Please note: A compatible Blum CLIP mounting plate is required and sold separately. Blum advises that CLIP top BLUMOTION and standard CLIP top hinges should not be combined on the same door.

Frequently asked questions

What door application is the Blum 71B9690 designed for?

It is a dual or half-overlay hinge for applications where two doors share a central cabinet partition.

Is the 71B9690 suitable for thick cabinet doors?

Yes. Blum's planning information covers door fronts from approximately 16mm to 32mm. The door profile, cup position and required opening clearance must also be checked.

What does INSERTA mean?

INSERTA is Blum's tool-free method of securing the hinge cup into a correctly drilled door. It does not refer to the separate cabinet mounting plate.

Is the mounting plate included?

No. A compatible Blum CLIP mounting plate must be selected and ordered separately.

Can the BLUMOTION soft-close mechanism be switched off?

Yes. The integrated BLUMOTION mechanism can be deactivated when less closing resistance is required for a small or lightweight door.

Is this the Onyx Black version?

No. Hart stock code HI71B9690 is the nickel-plated version of the Blum 71B9690 hinge.

TECHNICAL DETAILS

Application: Dual
Finish: Nickel Plated
Colour: Nickel
Material: Steel
