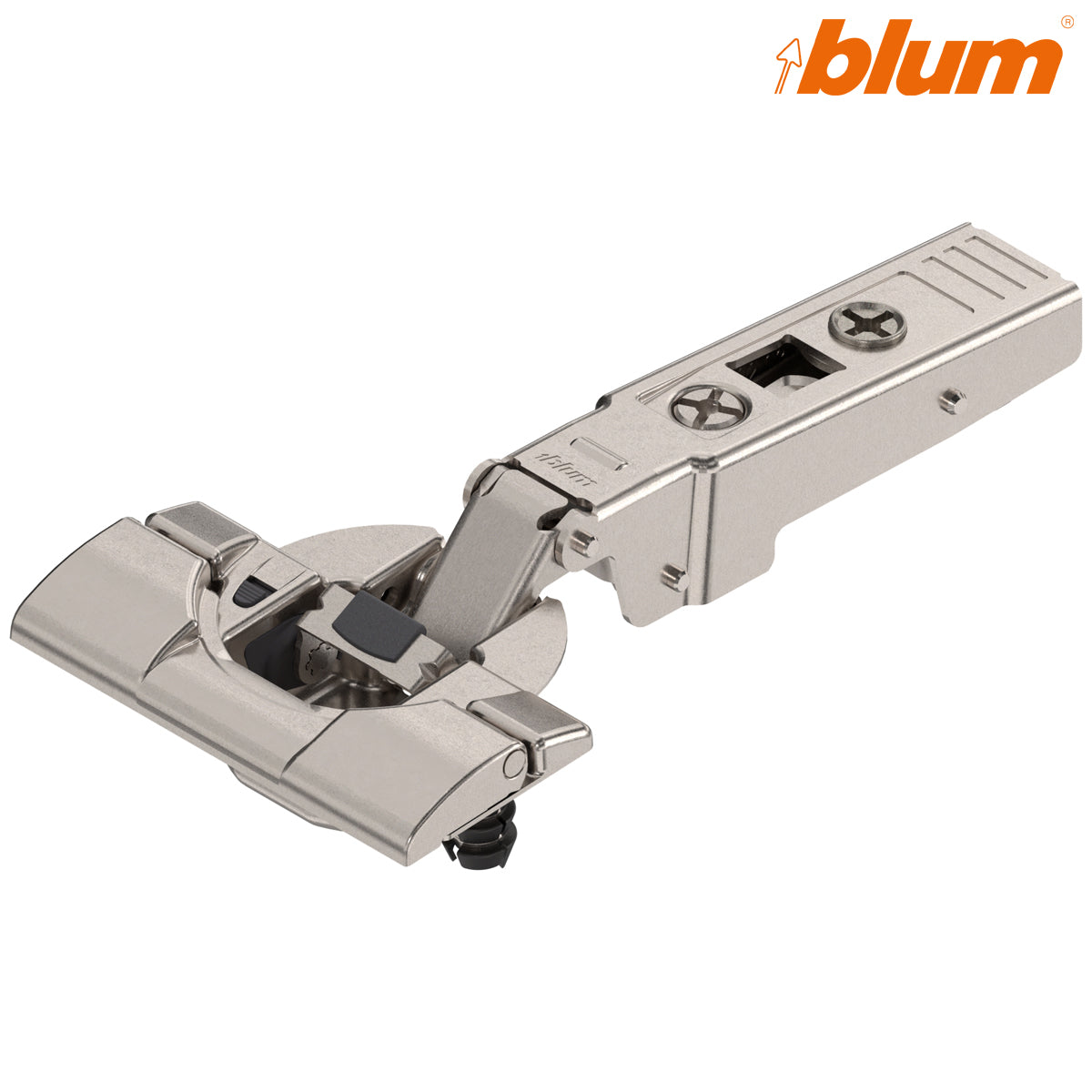

  • Blum 71B9590 95 degree overlay BLUMOTION INSERTA thick-door hinge in nickel
1 1

Blum 71B9590 BLUMOTION 95° Thick-Door Overlay INSERTA Hinge – Nickel

Blum 71B9590 BLUMOTION 95° Thick-Door Overlay INSERTA Hinge – Nickel

Stock Code: HI71B9590

£4.04 GBP
Sale
View full details

PRODUCT DESCRIPTION

Blum 71B9590 CLIP top BLUMOTION 95° Overlay INSERTA Hinge

The Blum 71B9590 is a nickel-plated CLIP top BLUMOTION overlay hinge designed for thick and profiled cabinet doors. Its straight hinge arm positions the closed door over the cabinet side panel, while the controlled 95° opening angle helps prevent excessive door travel in restricted installations.

Integrated BLUMOTION technology provides smooth, quiet soft closing without requiring a separate damper. Blum's INSERTA tool-free hinge cup also allows fast installation into a correctly prepared door drilling pattern without conventional cup-fixing screws.

Key features

  • 95° opening angle
  • Overlay cabinet-door application
  • Straight hinge arm
  • Designed for thick and profiled furniture fronts
  • Suitable for front thicknesses from approximately 16mm to 32mm, subject to application planning
  • Integrated BLUMOTION soft-close mechanism
  • BLUMOTION can be deactivated for small or lightweight doors
  • Tool-free INSERTA hinge-cup installation
  • Tool-free CLIP connection between the hinge and mounting plate
  • Three-dimensional door adjustment
  • Sprung, self-closing hinge action
  • Nickel-plated steel construction
  • Supplied as one hinge

Overlay-door application

An overlay hinge positions the closed cabinet door over the front edge of the cabinet side panel. It is often described as a full-overlay application, although the final amount of overlay depends on the cup drilling distance and selected mounting-plate height.

The Blum 71B9590 should be planned according to the required overlay, cabinet construction, door thickness, edge profile and minimum clearance needed throughout the 95° opening movement.

INSERTA tool-free fixing

Blum's INSERTA mechanism secures the hinge cup to the door without conventional fixing screws. The hinge cup is placed into the prepared 35mm cup hole and two 8mm fixing holes before the locking mechanism is closed.

INSERTA describes the hinge-cup connection to the door. A compatible Blum CLIP mounting plate is still required on the cabinet and must be ordered separately.

Technical specifications

Blum part number 71B9590
Blum item number 09349783
EAN/GTIN 9002617794205
Application Overlay
Opening angle 95°
Hinge cup diameter 35mm
Cup drilling depth 13mm
Fixing-hole diameter 8mm
Distance between fixing holes 45mm
Fixing-hole offset 9.5mm
Cup drilling distance 3–7mm
Side adjustment Approximately ±2mm
Depth adjustment Approximately +3/−2mm
Finish Nickel plated

Please note: A compatible Blum CLIP mounting plate is required and sold separately. The mounting-plate height must be selected according to the required door overlay and cabinet construction.

Blum advises that CLIP top BLUMOTION and standard non-BLUMOTION CLIP top hinges should not be combined on the same door.

Related products

Frequently asked questions

What is an overlay cabinet hinge?

An overlay hinge positions the closed door over the cabinet side panel. The final overlay dimension depends on the hinge geometry, cup drilling distance and mounting-plate height.

Is the Blum 71B9590 suitable for thick doors?

Yes. It is designed specifically for thick and profiled fronts. Blum's planning information covers thicknesses from approximately 16mm to 32mm, subject to the door profile and required clearance.

Is this hinge only for aluminium-framed doors?

No. The 71B9590 is a profile and thick-door hinge. It is not restricted to aluminium profile-frame cabinet doors.

What does INSERTA mean?

INSERTA is Blum's tool-free method of securing the hinge cup into a correctly prepared door. It does not refer to the cabinet mounting plate.

Is the mounting plate included?

No. A compatible Blum CLIP mounting plate must be selected and ordered separately.

Can the BLUMOTION mechanism be switched off?

Yes. The integrated BLUMOTION mechanism can be deactivated when reduced closing resistance is required for a smaller or lightweight door.

TECHNICAL DETAILS

  • Application: Overlay
  • Finish: Nickel Plated
  • Colour: Nickel
  • Material: Steel
