BLUM CLIP THIN DOOR HINGE 107deg DUAL EXPANDO

BLUM CLIP THIN DOOR HINGE 107deg DUAL EXPANDO

Stock Code: HI75T168E

£1.31 GBP
Sale
View full details
Previous
BLUM CLIP THIN DOOR HINGE 107deg DUAL KNOCK-IN
Next
BLUM CLIP THIN DOOR HINGE 107deg DUAL INSERTA

PRODUCT DESCRIPTION

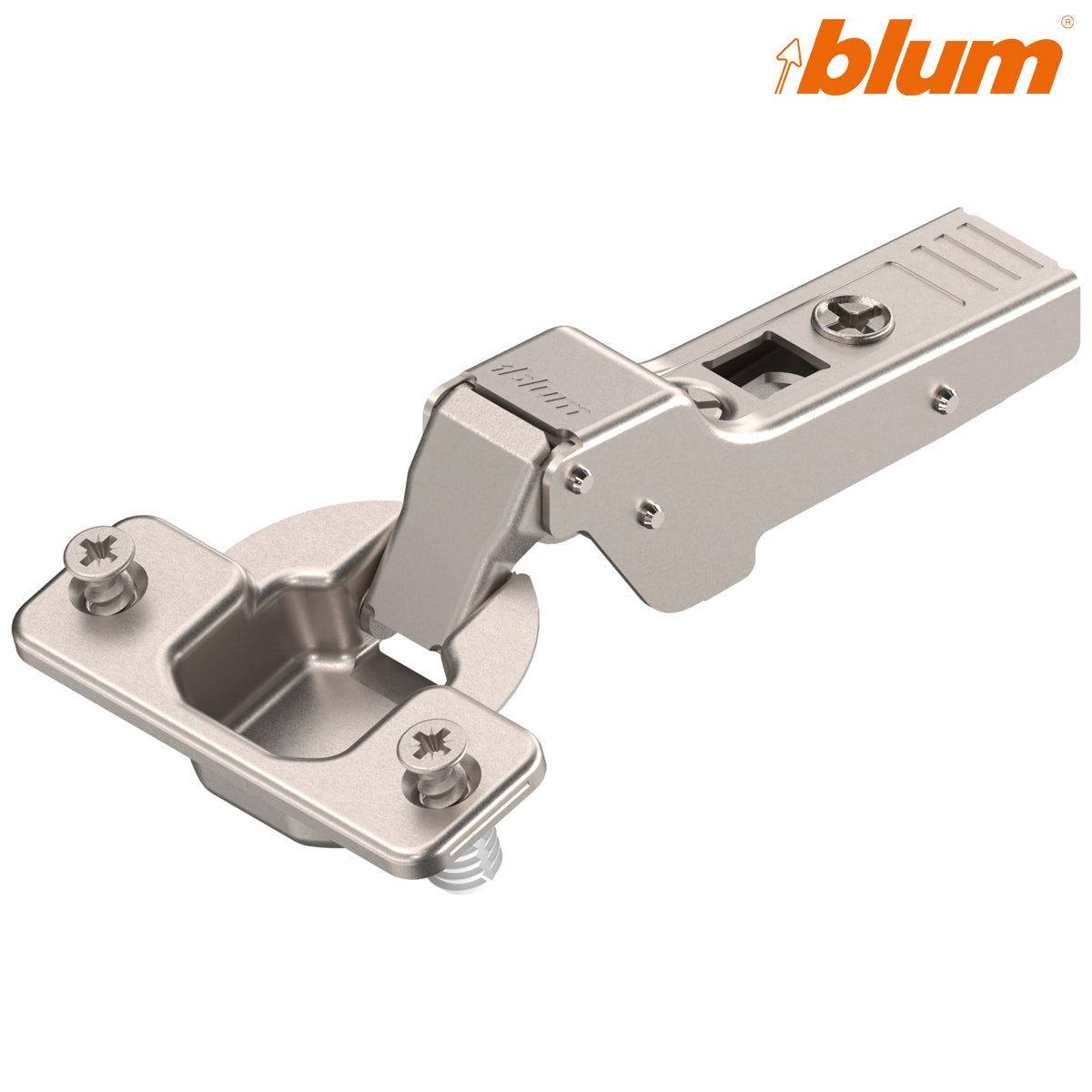

Blum Clip Top Thin Door Hinge 107° — Dual (Half-Overlay), Sprung, EXPANDO, Nickel

A Blum Clip Top hinge with a 107° opening angle for dual (half-overlay) cabinet doors, where two doors share a central cabinet partition. Requires only an 11.5mm deep hinge cup hole — ideal where door thickness is limited. Sprung with integrated soft-close mechanism. EXPANDO boss expands on insertion for a secure, tool-free fit without drilling a fixing hole. Suitable for front thicknesses 15–24mm.

  • SKU: HI75T168E
  • Blum part number: 75T168E
  • Opening angle: 107°
  • Application: Dual (half-overlay)
  • Soft-close: Sprung (integrated)
  • Fixing: EXPANDO (tool-free expanding boss)
  • Hinge cup depth: 11.5mm only
  • Suitable for front thicknesses 15–24mm
  • 3-dimensional front adjustment
  • Depth adjustment with spiral screw
  • Tool-free door-to-cabinet assembly and removal
  • Finish: Nickel
  • Blum Lifetime Guarantee
  • Supplied as 1 piece

Supplied as a single hinge. Back plates sold separately.

TECHNICAL DETAILS

  • Application: Overlay
  • Colour: Nickel
