BLUM CLIP BLUMOTION HINGE 0-PROTRUSION 155deg 1/2OVERLAY INSERTA

BLUM CLIP BLUMOTION HINGE 0-PROTRUSION 155deg 1/2OVERLAY INSERTA

Stock Code: HI71T7640N

£4.73 GBP
Sale
View full details
Previous
BLUM CLIP PROFILE HINGE 95deg DUAL INSERTA
Next
BLUM CLIP WIDE HINGE 170deg OVERLAY INSERTA

PRODUCT DESCRIPTION

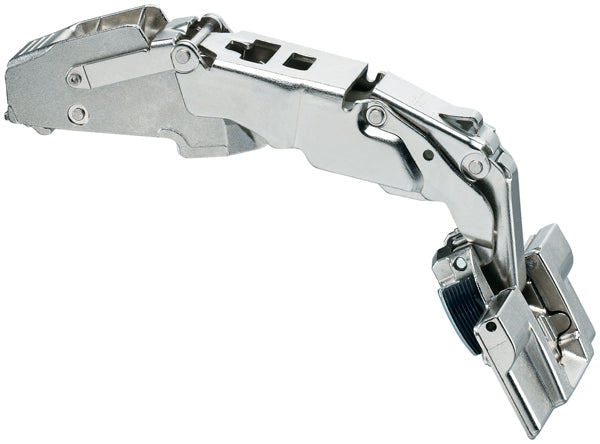

Blum Clip Top Zero-Protrusion Hinge 155° — Dual (Half-Overlay), Sprung, INSERTA, Nickel

A Blum Clip Top zero-protrusion hinge opening to 155° for dual (half-overlay) applications, where two doors share a central cabinet partition. The zero-protrusion design means the open door does not protrude beyond the cabinet front — so pull-out drawers, baskets, and internal fittings can be accessed without obstruction even with the door fully open. Sprung with integrated soft-close mechanism. Features the INSERTA tool-free press-in back plate system. Suits cabinet doors up to 31mm thick.

  • SKU: HI71T7640N
  • Blum part number: 71T7640N
  • Opening angle: 155°
  • Application: Dual (half-overlay)
  • Soft-close: Sprung (integrated)
  • Fixing: INSERTA (tool-free press-in back plate)
  • Zero-protrusion — open door does not obstruct pull-out drawers or baskets
  • 3-dimensional front adjustment
  • Tool-free door-to-cabinet assembly and removal
  • Suits cabinet doors up to 24mm thick
  • Finish: Nickel
  • Blum Lifetime Guarantee
  • Supplied as 1 piece

Supplied as a single hinge. INSERTA back plates sold separately.

TECHNICAL DETAILS

  • Application: Overlay
  • Colour: Nickel
