ECLIPSE EXTERNAL BALL BEARING HINGE G13 102x76x3 316PSS PR

ECLIPSE EXTERNAL BALL BEARING HINGE G13 102x76x3 316PSS PR

Stock Code: HI1252H5

£11.83 GBP
Sale
View full details
Previous
ECLIPSE EXTERNAL BALL BEARING HINGE G13 102x76x3 316SSS PR
Next
ECLIPSE PREMIUM BALL BEARING HINGE G13 102x76x3 DBZ PR

PRODUCT DESCRIPTION

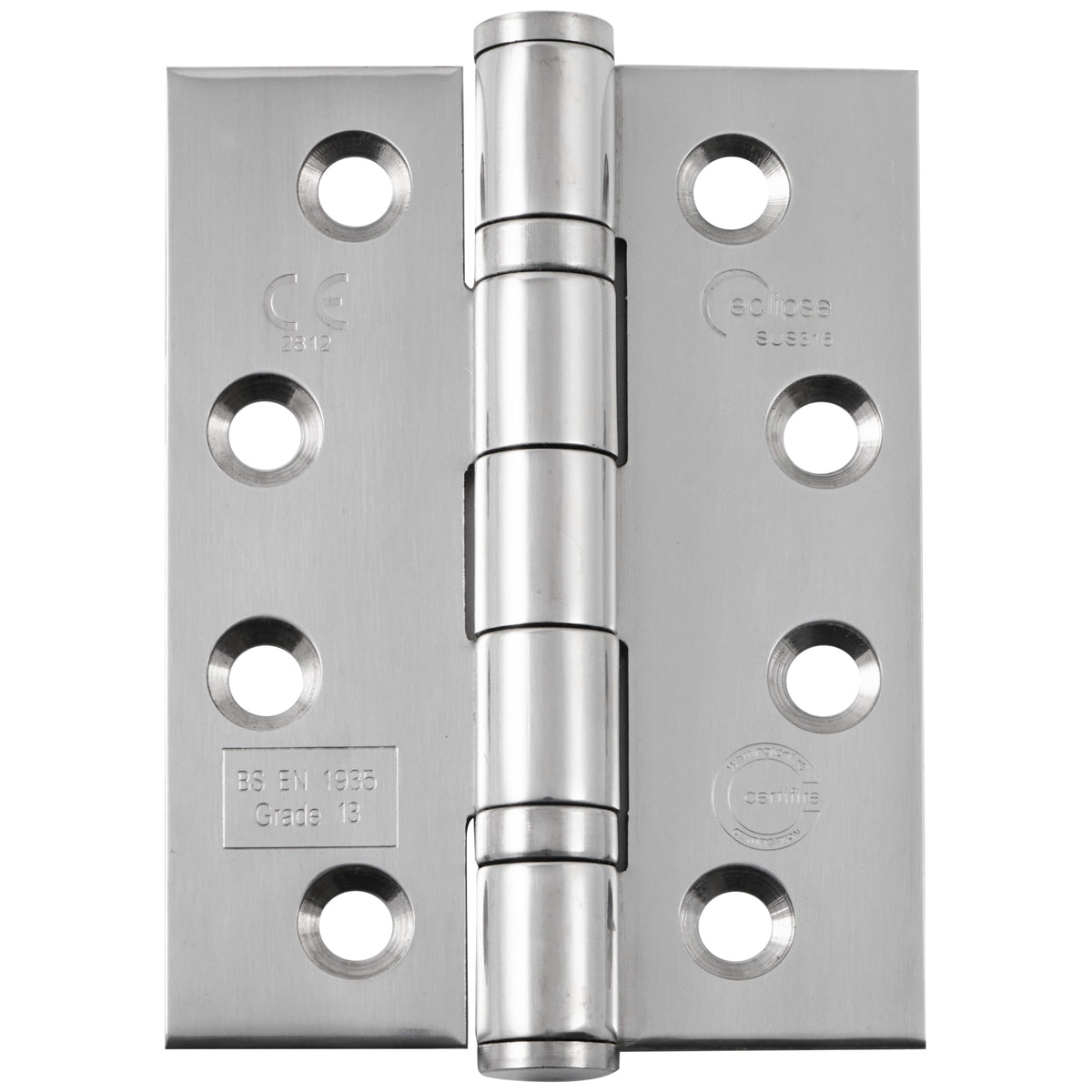

Eclipse External Ball Bearing Hinge — Grade 13 | 102x76x3mm | 316 Polished Stainless Steel

A heavy-duty Grade 13 ball bearing hinge from the Eclipse External range, manufactured from grade 316 stainless steel with a Polished Stainless Steel finish. Grade 316 offers superior corrosion resistance, making this hinge the ideal choice for external doors, coastal environments, high-humidity settings, and fire-rated applications up to 120kg.

Tested to 200,000 cycles to BS EN 1935 Grade 13, and fire-tested to FD30, FD60, FD90, FD120 timber and FD240 steel doors under BS EN 1634. Certified to CE 2812, UKCA 1121, and Certifire CF336.

Key Features

  • Grade 13 performance — rated for doors up to 120kg total mass
  • Grade 316 stainless steel — superior corrosion resistance for external use
  • Polished Stainless Steel finish
  • Size: 102 x 76 x 3mm
  • 12-gauge countersunk fixing holes
  • Fire tested: FD30/60/90/120 timber & FD240 steel (BS EN 1634)
  • Cycle tested: 200,000 cycles (BS EN 1935 Grade 13)
  • Certifications: CE 2812 | UKCA 1121 | Certifire CF336
  • Supplied with 12 × 1½" Pozi Drive threaded screws
  • Sold as a pack of 2 hinges

Specifications

  • SKU: HI1252H5
  • Size: 102 x 76 x 3mm
  • Material: Grade 316 Stainless Steel
  • Finish: Polished Stainless Steel (316PSS)
  • Grade: BS EN 1935 Grade 13
  • Fire Rating: FD30/60/90/120 timber | FD240 steel (BS EN 1634)
  • Pack Quantity: 2 hinges (1 pair)
  • Fixings: 12 × 1½" Pozi Drive screws included

Browse the full Eclipse range or explore all hinges at Hart Wholesale.

TECHNICAL DETAILS

  • Application: External Door Hinges
  • Size: 102 x 76 x 3mmmm
  • Width: 76mmmm
  • Height: 102mmmm
  • Finish: Polished Stainless Steel
  • Colour: Polished Stainless Steel
  • Load capacity: 120kg (Grade 13)
  • Material: Grade 316 Stainless Steel
