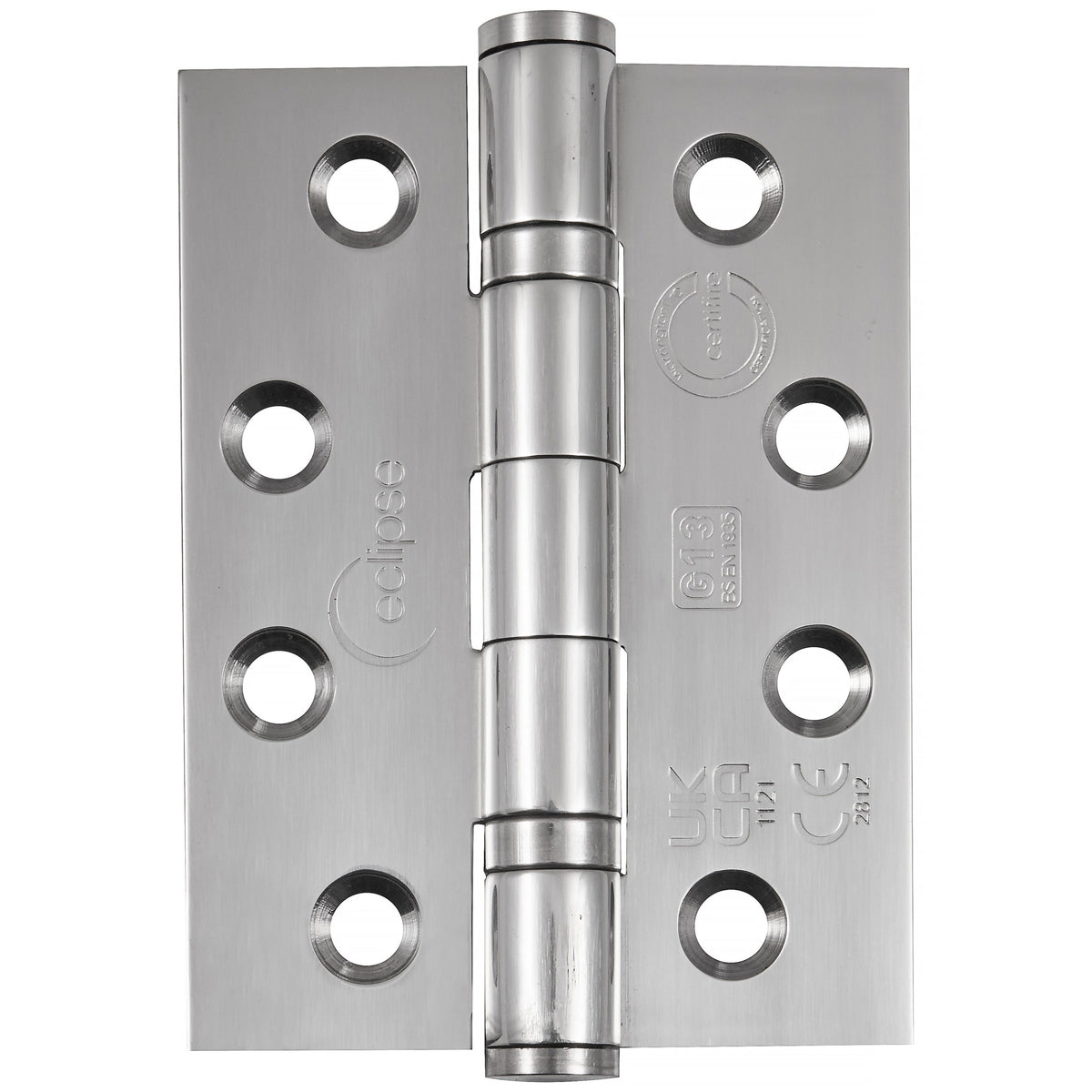

Eclipse Premium Ball Bearing Hinge — Grade 13 | 102x76x3mm | Polished Stainless Steel | Pack of 3

A heavy-duty Grade 13 ball bearing hinge from the Eclipse Premium range, finished in Polished Stainless Steel. Sold as a pack of 3, this is the trade-preferred pack for fitting a full set of hinges to a single door. Manufactured from SUS 201 stainless steel and engineered for high-traffic, heavy timber and steel fire doors up to 120kg.

Tested to 200,000 cycles to BS EN 1935 Grade 13, and fire-tested to FD30, FD60, FD90, FD120 timber and FD240 steel doors under BS EN 1634. Certified to CE 2812, UKCA 1121, and Certifire CF336.

Key Features

• Grade 13 performance — rated for doors up to 120kg total mass
• SUS 201 stainless steel construction
• Polished Stainless Steel finish
• Size: 102 x 76 x 3mm
• 12-gauge countersunk fixing holes
• Fire tested: FD30/60/90/120 timber & FD240 steel (BS EN 1634)
• Cycle tested: 200,000 cycles (BS EN 1935 Grade 13)
• Certifications: CE 2812 | UKCA 1121 | Certifire CF336
• Supplied with 12 × 1¼" Pozi Drive threaded screws
• Sold as a pack of 3 hinges

Specifications

• SKU: HI1252I1
• Size: 102 x 76 x 3mm
• Material: SUS 201 Stainless Steel
• Finish: Polished Stainless Steel (PSS)
• Grade: BS EN 1935 Grade 13
• Fire Rating: FD30/60/90/120 timber | FD240 steel (BS EN 1634)
• Pack Quantity: 3 hinges
• Fixings: 12 × 1¼" Pozi Drive screws included

Also available as a pair (SKU: HI1252I). Browse the full Eclipse range or explore all hinges at Hart Wholesale.
