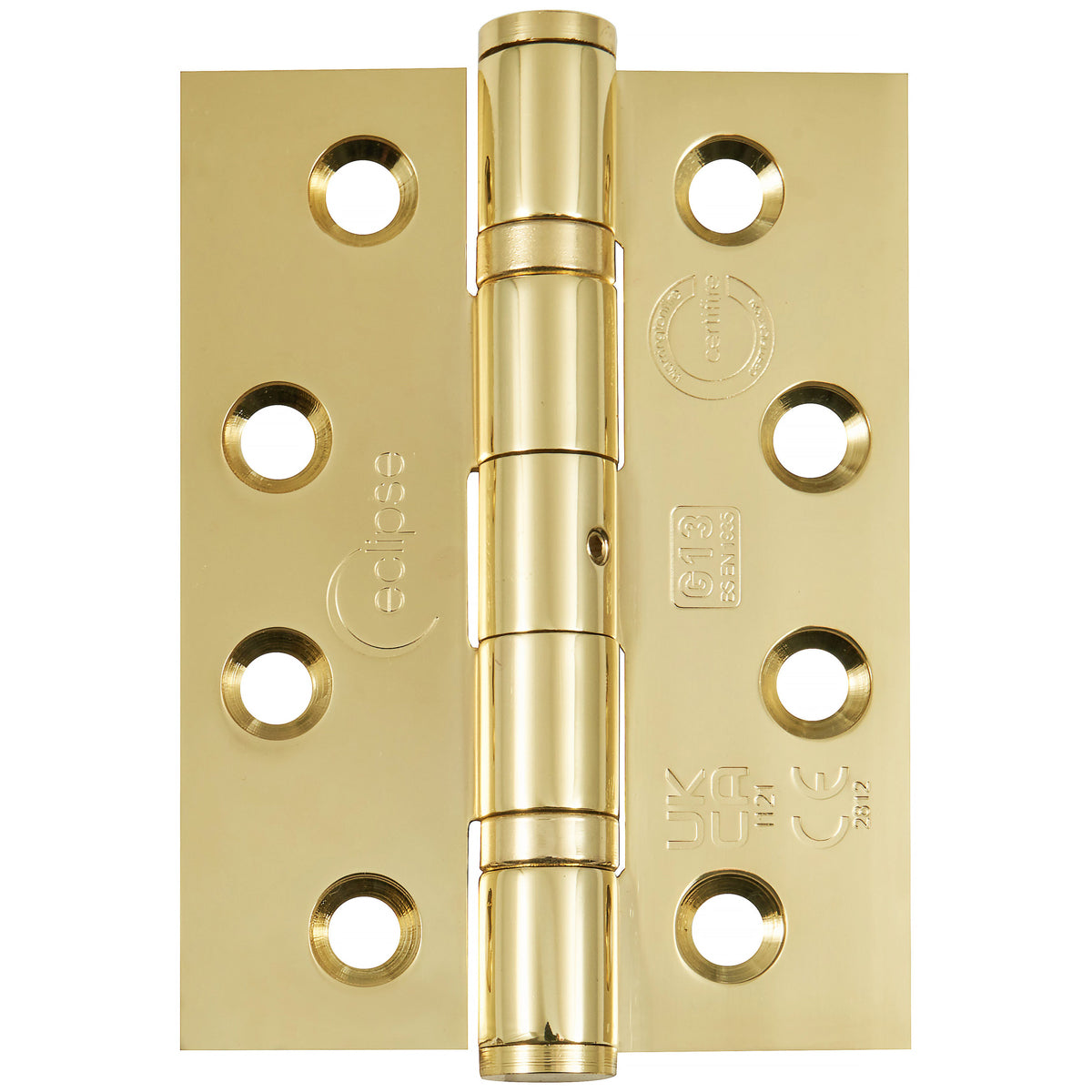

Eclipse Premium Ball Bearing Hinge — Grade 13 | 102x76x3mm | Polished Brass | Pack of 3
A heavy-duty Grade 13 ball bearing hinge from the Eclipse Premium range, finished in Polished Brass for a classic, high-shine look. Sold as a pack of 3 — the trade-preferred quantity for a complete single-door installation. Manufactured from SUS 201 stainless steel and engineered for high-traffic, heavy timber and steel fire doors up to 120kg.
Tested to 200,000 cycles to BS EN 1935 Grade 13, and fire-tested to FD30, FD60, FD90, FD120 timber and FD240 steel doors under BS EN 1634. Certified to CE 2812, UKCA 1121, and Certifire CF336.
Key Features
- Grade 13 performance — rated for doors up to 120kg total mass
- SUS 201 stainless steel construction
- Polished Brass finish
- Size: 102 x 76 x 3mm
- 12-gauge countersunk fixing holes
- Fire tested: FD30/60/90/120 timber & FD240 steel (BS EN 1634)
- Cycle tested: 200,000 cycles (BS EN 1935 Grade 13)
- Certifications: CE 2812 | UKCA 1121 | Certifire CF336
- Supplied with 12 × 1¼" Pozi Drive threaded screws
- Sold as a pack of 3 hinges
Specifications
- SKU: HI1252O1
- Size: 102 x 76 x 3mm
- Material: SUS 201 Stainless Steel
- Finish: Polished Brass (PBR)
- Grade: BS EN 1935 Grade 13
- Fire Rating: FD30/60/90/120 timber | FD240 steel (BS EN 1634)
- Pack Quantity: 3 hinges
- Fixings: 12 × 1¼" Pozi Drive screws included
Browse the full Eclipse range or explore all hinges at Hart Wholesale.
TECHNICAL DETAILS
- Application: Furniture Hinges
- Size: 102 x 76 x 3mmmm
- Width: 76mmmm
- Height: 102mmmm
- Finish: Polished Brass
- Colour: Polished Brass
- Load capacity: 120kg (Grade 13)
- Material: SUS 201 Stainless Steel
