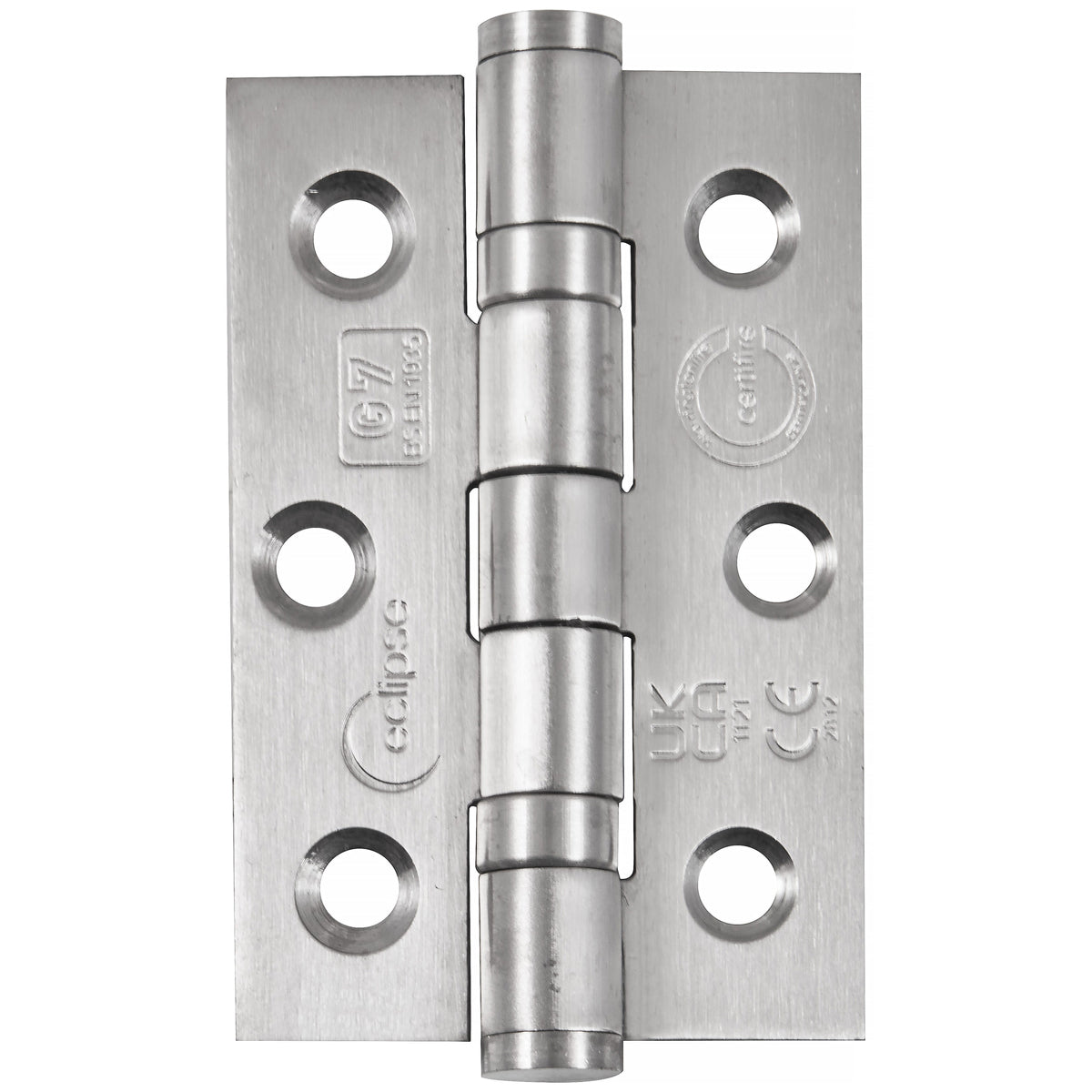

Eclipse Ball Bearing Hinge — Grade 7 | 76x51x2mm | Satin Stainless Steel

A precision-engineered Grade 7 ball bearing hinge from the Eclipse range, finished in Satin Stainless Steel for a contemporary, brushed appearance. Manufactured from SUS 201 stainless steel, this hinge is built for fire-rated and heavy-duty timber doors in both residential and commercial settings.

Independently tested to 200,000 cycles to BS EN 1935 Grade 7, and fire-tested to FD30 under BS EN 1634. Certified to CE 2812, UKCA 1121, and Certifire CF336.

Key Features

• Grade 7 performance — rated for doors up to 40kg total mass
• SUS 201 stainless steel construction
• Satin Stainless Steel finish
• Size: 76 x 51 x 2mm
• 8-gauge countersunk fixing holes
• Fire tested: FD30 timber door (BS EN 1634)
• Cycle tested: 200,000 cycles (BS EN 1935 Grade 7)
• Certifications: CE 2812 | UKCA 1121 | Certifire CF336
• Supplied with 8 × 1¼" Pozi Drive threaded screws
• Sold as a pack of 2 hinges

Specifications

• SKU: HI1252
• Size: 76 x 51 x 2mm
• Material: SUS 201 Stainless Steel
• Finish: Satin Stainless Steel (SSS)
• Grade: BS EN 1935 Grade 7
• Fire Rating: FD30 (BS EN 1634)
• Pack Quantity: 2 hinges (1 pair)
• Fixings: 8 × 1¼" Pozi Drive screws included
