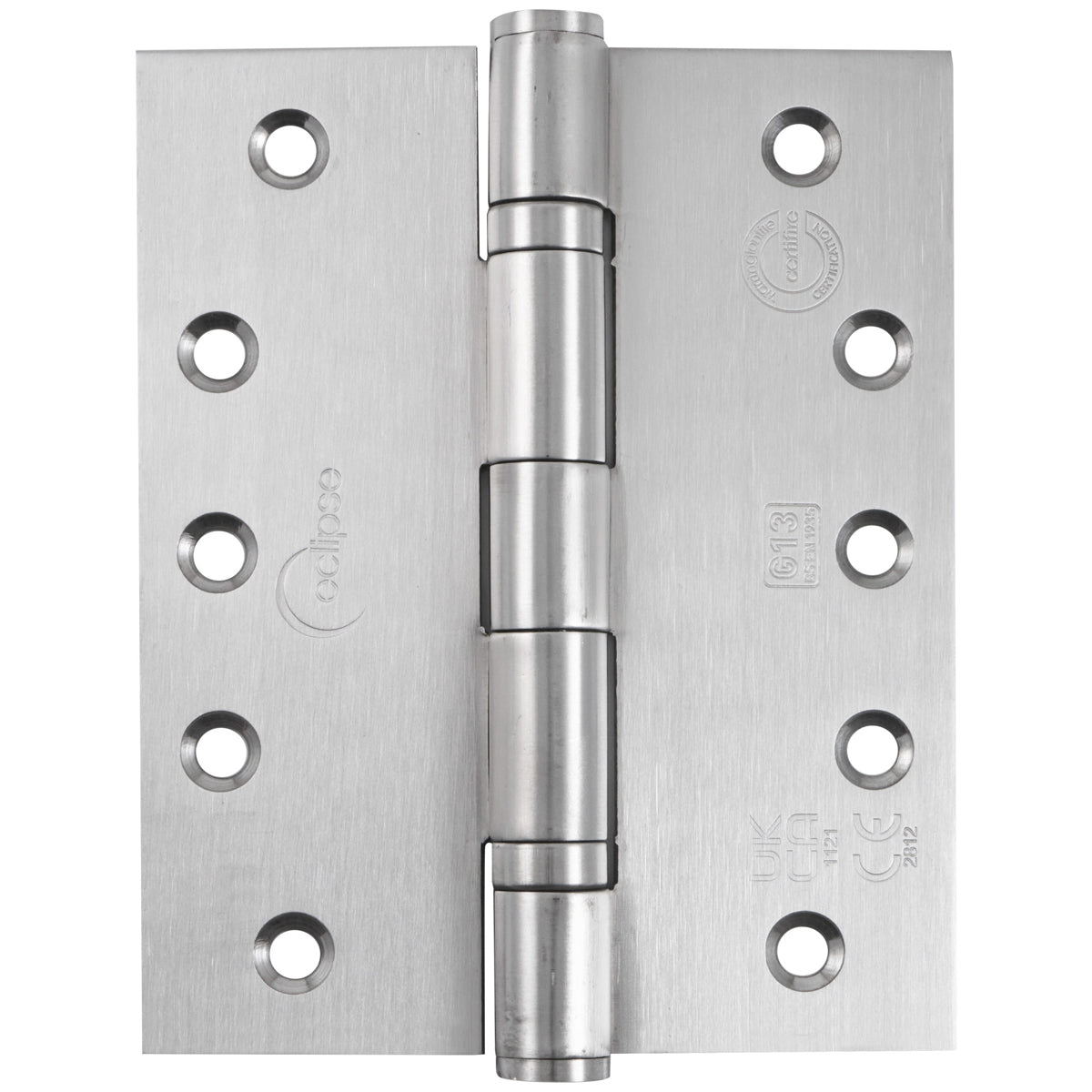

Eclipse Premium Ball Bearing Hinge — Grade 13 | 127x102x3mm | Satin Stainless Steel

A heavy-duty Grade 13 ball bearing hinge from the Eclipse Premium range, finished in Satin Stainless Steel. At 127 x 102mm, this is the larger-leaf variant suited to oversized, heavy or wide timber and steel fire doors up to 120kg where additional bearing surface is required.

Tested to 200,000 cycles to BS EN 1935 Grade 13, and fire-tested to FD30, FD60, FD90, FD120 timber and FD240 steel doors under BS EN 1634. Certified to CE 2812, UKCA 1121, and Certifire CF336.

Key Features

• Grade 13 performance — rated for doors up to 120kg total mass
• SUS 201 stainless steel construction
• Satin Stainless Steel finish
• Size: 127 x 102 x 3mm
• 12-gauge countersunk fixing holes
• Fire tested: FD30/60/90/120 timber & FD240 steel (BS EN 1634)
• Cycle tested: 200,000 cycles (BS EN 1935 Grade 13)
• Certifications: CE 2812 | UKCA 1121 | Certifire CF336
• Supplied with 12 × 1½" Pozi Drive threaded screws
• Sold as a pack of 2 hinges

Specifications

• SKU: HI1252S125
• Size: 127 x 102 x 3mm
• Material: SUS 201 Stainless Steel
• Finish: Satin Stainless Steel (SSS)
• Grade: BS EN 1935 Grade 13
• Fire Rating: FD30/60/90/120 timber | FD240 steel (BS EN 1634)
• Pack Quantity: 2 hinges (1 pair)
• Fixings: 12 × 1½" Pozi Drive screws included
