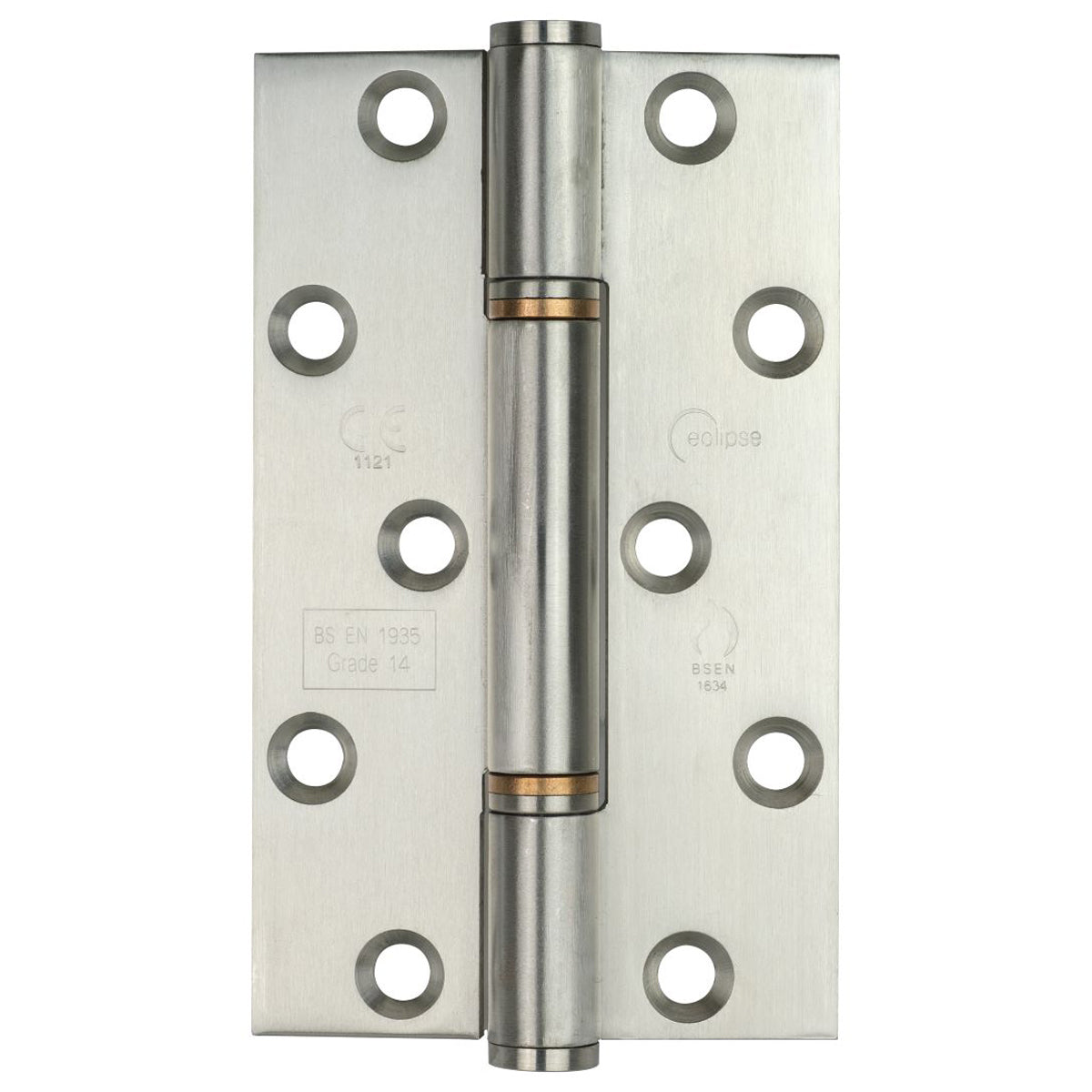

Eclipse Thrust Bearing Hinge — Grade 14 | 127x76x3mm | Satin Stainless Steel

A premium Grade 14 thrust bearing hinge from the Eclipse range, finished in Satin Stainless Steel for a contemporary brushed appearance. Manufactured from SUS 201 stainless steel, this hinge is engineered for the most demanding heavy-duty timber and steel fire doors up to 160kg.

Tested to 200,000 cycles to BS EN 1935 Grade 14, and fire-tested to FD30, FD60, FD90, FD120 timber and FD240 steel doors under BS EN 1634. Certified to CE 2812 and UKCA 1121.

Key Features

• Grade 14 performance — rated for doors up to 160kg total mass
• Thrust bearing mechanism for smooth, heavy-load operation
• SUS 201 stainless steel construction
• Satin Stainless Steel finish
• Size: 127 x 76 x 3mm
• 12-gauge countersunk fixing holes
• Fire tested: FD30/60/90/120 timber & FD240 steel (BS EN 1634)
• Cycle tested: 200,000 cycles (BS EN 1935 Grade 14)
• Certifications: CE 2812 | UKCA 1121
• Supplied with 12 × 1½" Pozi Drive threaded screws
• Sold as a pack of 2 hinges

Specifications

• SKU: HI1252S125S
• Size: 127 x 76 x 3mm
• Material: SUS 201 Stainless Steel
• Finish: Satin Stainless Steel (SSS)
• Grade: BS EN 1935 Grade 14
• Fire Rating: FD30/60/90/120 timber | FD240 steel (BS EN 1634)
• Pack Quantity: 2 hinges (1 pair)
• Fixings: 12 × 1½" Pozi Drive screws included
