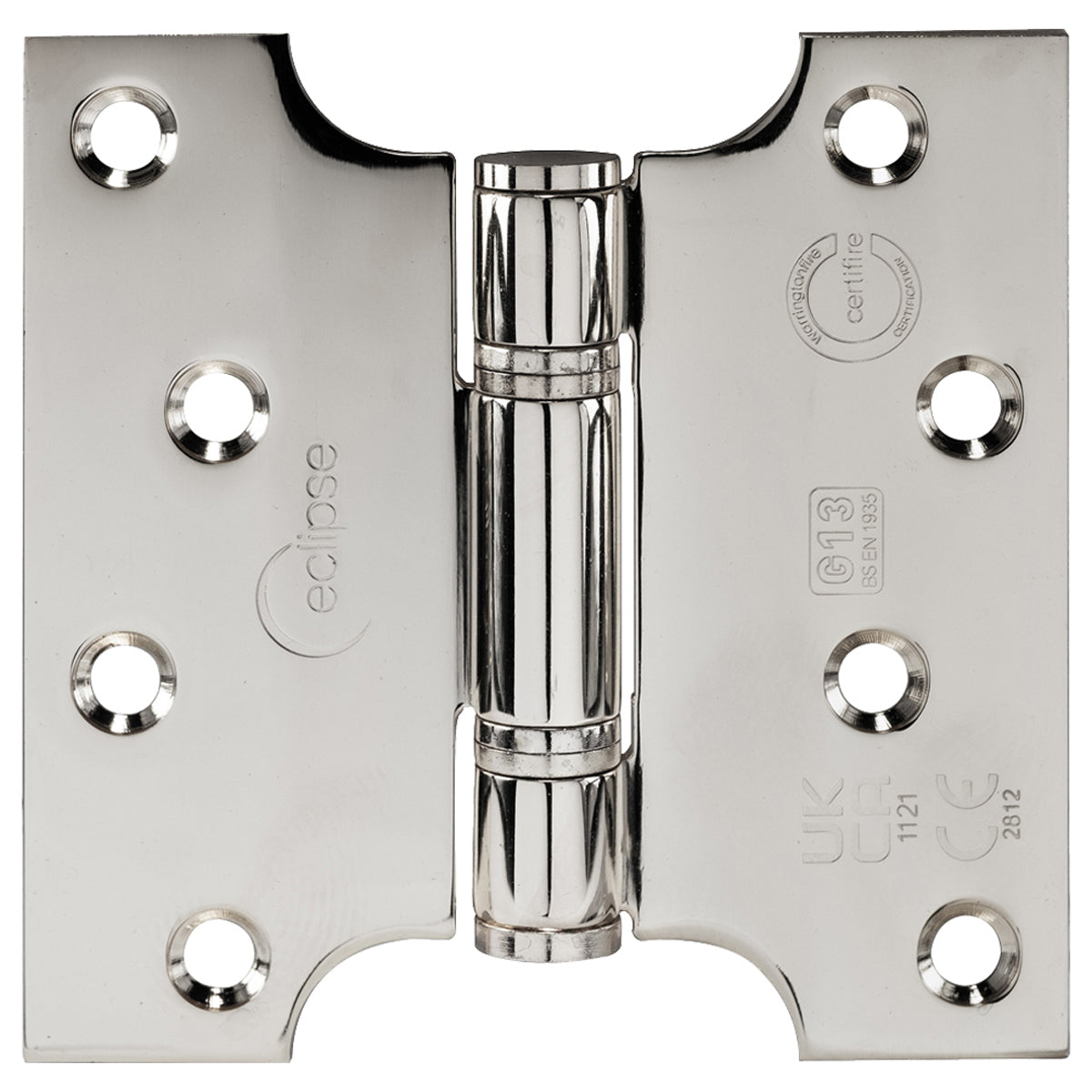

Eclipse Fire Rated Thrust Bearing Parliament Hinge — Grade 13 | 102x51x102x3mm | Polished Stainless Steel

A heavy-duty Grade 13 thrust bearing parliament hinge from the Eclipse range, finished in Polished Stainless Steel. Parliament hinges allow doors to swing fully clear of the frame and wall, ideal for rooms where maximum door clearance is required. This fire-rated version is certified for use on FD30 timber fire doors up to 120kg.

Tested to 200,000 cycles to BS EN 1935 Grade 13, and fire-tested to FD30 timber doors under BS EN 1634. Certified to CE 2812, UKCA 1121, and Certifire CF336.

Key Features

• Grade 13 performance — rated for doors up to 120kg total mass
• Thrust bearing mechanism for smooth, heavy-load operation
• Parliament hinge — allows door to swing clear of architrave
• Polished Stainless Steel finish
• Size: 102 x 51 x 102 x 3mm
• 12-gauge countersunk fixing holes
• Fire tested: FD30 timber door (BS EN 1634)
• Cycle tested: 200,000 cycles (BS EN 1935 Grade 13)
• Certifications: CE 2812 | UKCA 1121 | Certifire CF336
• Supplied with 12 × 1½" Pozi Drive threaded screws
• Sold as a pack of 2 hinges

Specifications

• SKU: HI1253E1
• Size: 102 x 51 x 102 x 3mm
• Material: Stainless Steel
• Finish: Polished Stainless Steel (PSS)
• Grade: BS EN 1935 Grade 13
• Fire Rating: FD30 timber (BS EN 1634)
• Pack Quantity: 2 hinges (1 pair)
• Fixings: 12 × 1½" Pozi Drive screws included

Browse the full Eclipse range or explore all hinges at Hart Wholesale.
