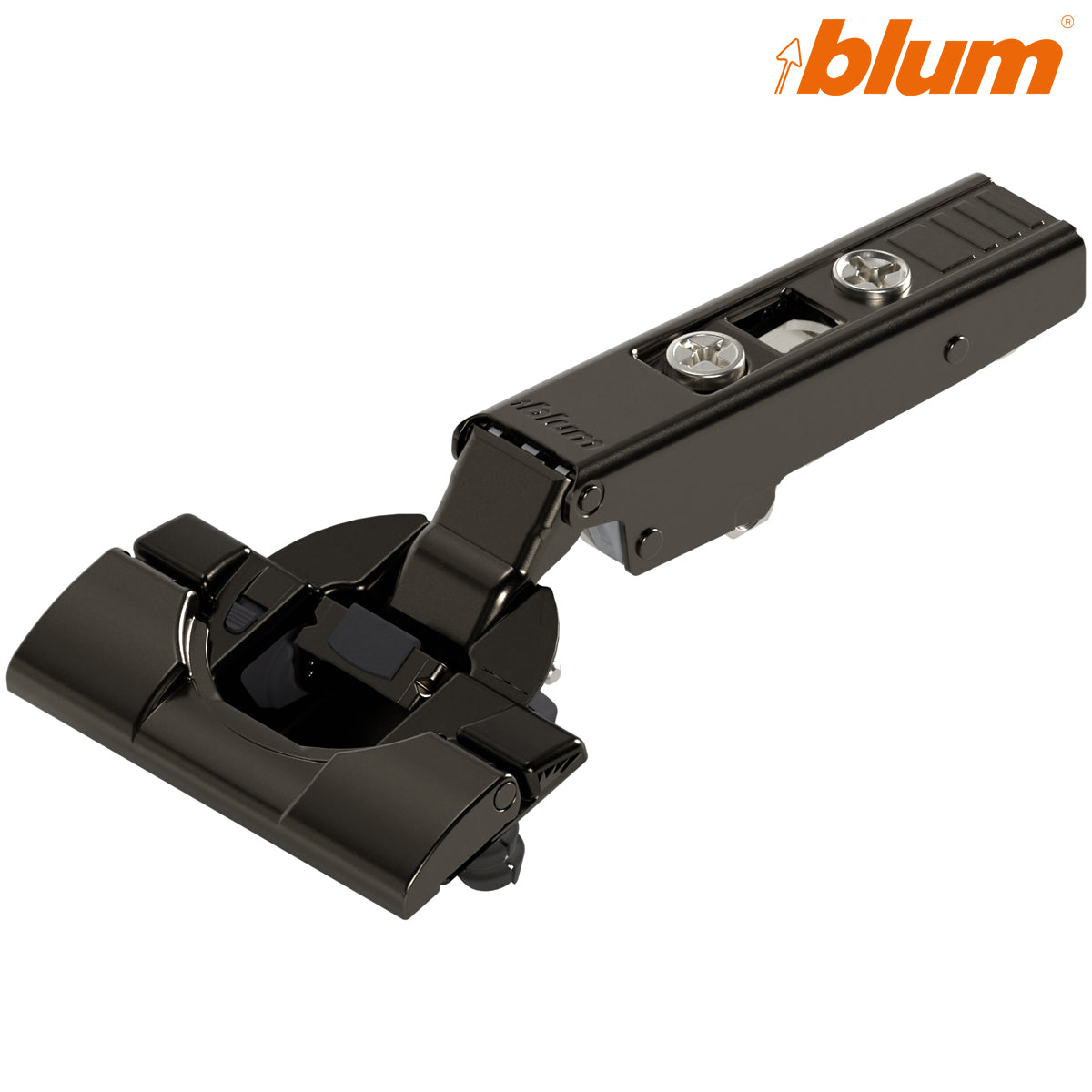

  • Blum 71B3590 CLIP top BLUMOTION 110 degree overlay INSERTA cabinet hinge in Onyx Black – HIO71B3590
1 1

Blum 71B3590 CLIP top BLUMOTION 110° Overlay INSERTA Hinge – Onyx Black

Blum 71B3590 CLIP top BLUMOTION 110° Overlay INSERTA Hinge – Onyx Black

Stock Code: HIO71B3590

£3.77 GBP
Sale
View full details

PRODUCT DESCRIPTION

Blum 71B3590 CLIP top BLUMOTION 110° Overlay INSERTA Hinge – Onyx Black

The Blum 71B3590 CLIP top BLUMOTION hinge combines integrated soft closing, tool-free INSERTA installation and a distinctive Onyx Black finish. Its straight hinge arm is designed for standard overlay cabinet doors, making it suitable for kitchens, bedrooms, living-room furniture and fitted cabinetry.

BLUMOTION is built directly into the hinge cup and provides smooth, controlled closing without requiring a separate soft-close adapter. The damping function can be deactivated on individual hinges when less closing resistance is needed for a small or lightweight door.

The INSERTA fixing system secures the hinge cup without conventional fixing screws. After preparing the 35mm cup drilling and two 8mm fixing holes, the integrated locking lever expands the dowels and holds the hinge securely in the door.

Key features

  • Genuine Blum CLIP top BLUMOTION concealed hinge
  • Designed for overlay cabinet doors
  • 110° opening angle
  • Integrated, deactivatable BLUMOTION soft close
  • Tool-free INSERTA hinge-cup fixing
  • No separate hinge-cup fixing screws required
  • 35mm steel hinge cup
  • Tool-free CLIP connection to the mounting plate
  • Three-dimensional door adjustment
  • Premium Onyx Black finish
  • Supplied as one hinge

Technical specifications

Manufacturer Blum
Blum part number 71B3590
Hart stock code HIO71B3590
GTIN/EAN 9009494216721
Hinge system CLIP top BLUMOTION
Door application Overlay
Opening angle 110°
Closing action Spring closing with integrated BLUMOTION
Cup fixing INSERTA tool-free locking
Cup diameter 35mm
Cup drilling depth 13mm
Fixing holes Two 8mm holes on 45mm centres
Drilling distance 3–7mm
Side adjustment ±2mm
Depth adjustment +3mm / −2mm
Height adjustment Through the selected mounting plate
Material Steel
Finish Onyx Black
Quantity One hinge

Tool-free INSERTA installation

INSERTA allows the hinge cup to be fitted without separate fixing screws or insertion machinery. Prepare a 35mm cup hole to a depth of 13mm and two 8mm fixing holes positioned on 45mm centres. Insert the hinge and operate its locking lever to secure the expanding dowels.

Mounting plate required

This product is supplied as one hinge. A compatible Blum CLIP mounting plate must be ordered separately. The correct mounting-plate height depends on the cabinet construction, drilling distance and required door overlay.

Browse our Blum INSERTA hinges or explore the complete Blum CLIP top hinge range.

Frequently asked questions

Does the Blum 71B3590 include soft close?

Yes. BLUMOTION soft closing is integrated directly into the hinge.

Can BLUMOTION be deactivated?

Yes. The damping function can be switched off on individual hinges when less closing resistance is required.

What does INSERTA mean?

INSERTA is Blum's tool-free hinge-cup fixing system. Its integrated lever expands the fixing dowels and secures the hinge without separate screws.

Is the mounting plate included?

No. A compatible Blum CLIP mounting plate must be purchased separately.

What drilling pattern is required?

The hinge requires a 35mm cup hole, 13mm deep, plus two 8mm fixing holes positioned on 45mm centres.

TECHNICAL DETAILS

  • Application: Overlay
  • Size: 110° opening, 35mm cup, 45mm centres
  • Diameter: 35mm
  • Finish: Onyx Black
  • Colour: Onyx Black
  • Code: HIO71B3590
  • Material: Steel
