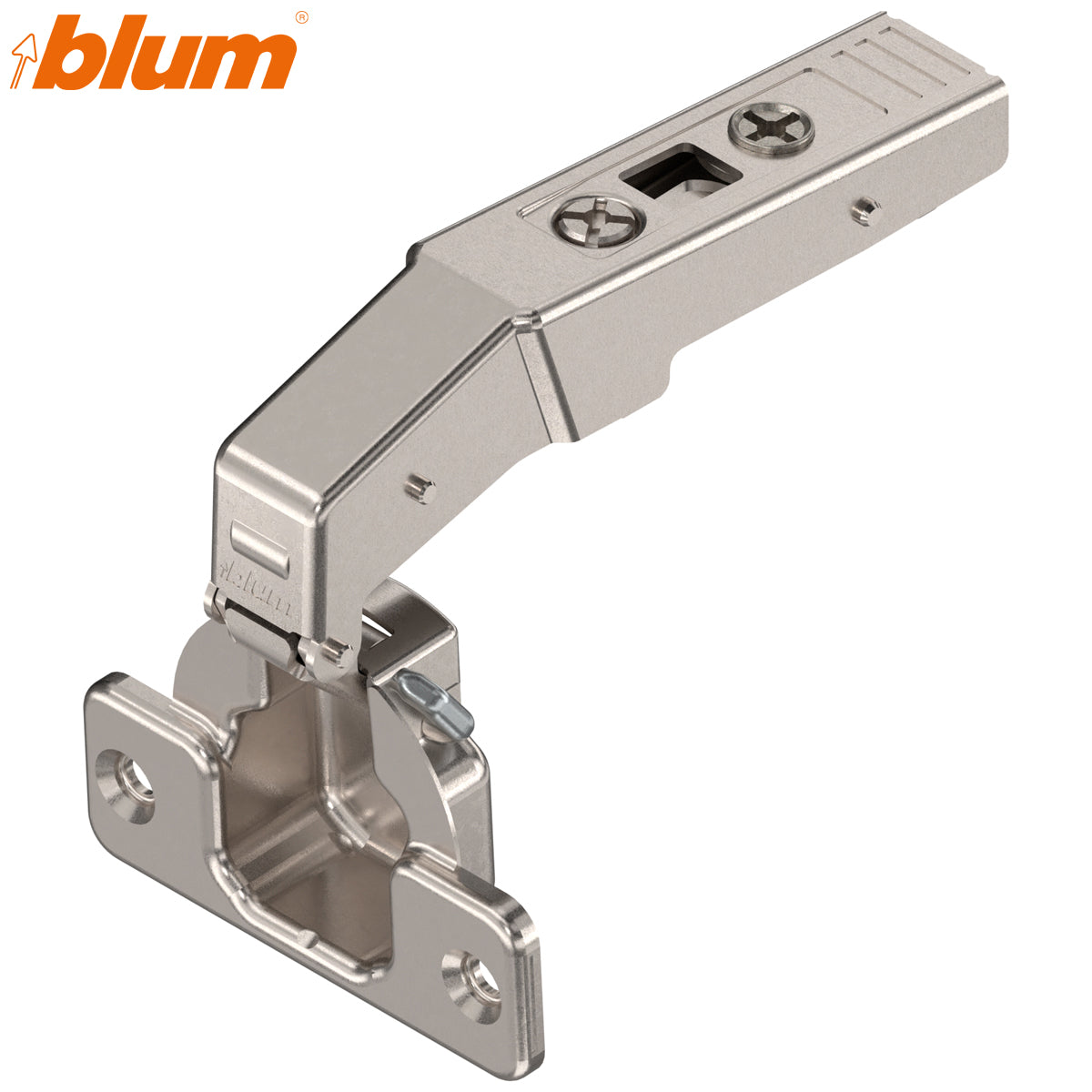

Name: Blum 79T9550 CLIP top 95° Inset Blind-Corner Screw-On Hinge – Sprung, Nickel
Brand: JULIUS BLUM UK LTD
SKU: HI79T955
Price: 2.28 GBP
Availability: InStock

PRODUCT DESCRIPTION

Blum 79T9550 CLIP top 95° Sprung Blind-Corner Hinge

The Blum 79T9550 is a sprung, self-closing 95° inset blind-corner hinge with a screw-on hinge-cup fixing. It is designed for mounting a cabinet door to an inset muntin or fixed blind-corner panel, where an ordinary inset hinge would not provide the required mounting geometry.

This is a standard CLIP top self-closing hinge without integrated BLUMOTION. Its internal spring pulls the door closed, while the CLIP connection allows the door to be attached to or removed from the separate mounting plate without tools.

Key features

Specialist hinge for inset blind-corner cabinets
95° opening angle
Sprung self-closing mechanism
No integrated BLUMOTION soft close
Screw-on 35mm hinge-cup fixing
Nickel-plated steel hinge cup and arm
Tool-free CLIP door attachment and removal
Three-dimensional adjustment with a suitable mounting plate

Technical specifications

Manufacturer	Blum
Manufacturer part number	79T9550
Blum item number	03809633
Hart SKU	HI79T955
Application	Inset blind-corner door
Opening angle	95°
Closing mechanism	With spring – self-closing
Integrated soft close	No
Hinge-cup fixing	Screw-on
Hinge-cup diameter	35mm
Hinge-cup drilling depth	12.3mm
Hinge-cup fixing centres	45mm
Fixing-hole offset	9.5mm
Permitted cup drilling distance	3–7mm
Factory-set fixed dimension	-8mm
Side adjustment	±2.5mm
Depth adjustment	±1mm
Height adjustment	±3mm through the mounting plate
Specified gap	3mm
Finish	Nickel plated
GTIN/EAN	9002617451993
Pack contents	1 hinge

Important model distinction

This listing is for the older 79T9550 sprung, self-closing hinge. It must not be confused with the 78T9550.TL, which is an unsprung, free-moving hinge intended for a TIP-ON push-to-open arrangement.

If replacing an existing hinge, check the number stamped on the hinge arm and the closing action before ordering. A sprung 79T9550 and unsprung 78T9550.TL perform different functions.

Blind-corner mounting requirements

For the planned inset blind-corner application, use a 3mm-spaced standard Blum CLIP mounting plate. Blum specifies that the normal mounting-plate fixing positions are moved 15.5mm towards the edge of the muntin, producing a 21.5mm mounting setback.

The required reveal is calculated using: F = 8mm minus the hinge-cup drilling distance (TB). Check the door thickness, drilling distance, mounting-plate position and finished gap before production drilling.

Please note: The mounting plate and hinge-cup fixing screws are not included unless expressly stated.

Do you require soft closing?

The 79T9550 is self-closing but does not contain integrated BLUMOTION. For built-in, switchable soft closing, choose the Blum 79B9550 CLIP top BLUMOTION version instead.

Related hinges

Frequently asked questions

Is the Blum 79T9550 sprung or unsprung?

It is sprung and self-closing. The official product specification confirms that it has an internal spring closing mechanism.

Is this the same as 78T9550.TL?

No. The 79T9550 is sprung and self-closing. The 78T9550.TL is unsprung and has free movement for a TIP-ON push-to-open application.

Does the hinge include BLUMOTION?

No. This is a self-closing CLIP top hinge without integrated BLUMOTION. Select the 79B9550 version if integrated soft closing is required.

What is the correct hinge-cup drilling depth?

The official drilling depth for the 79T9550 hinge cup is 12.3mm.

Is a mounting plate included?

No. A compatible Blum CLIP mounting plate must be ordered separately.

TECHNICAL DETAILS

Application: Inset
Finish: Nickel Plated
Colour: Nickel
Material: Steel
