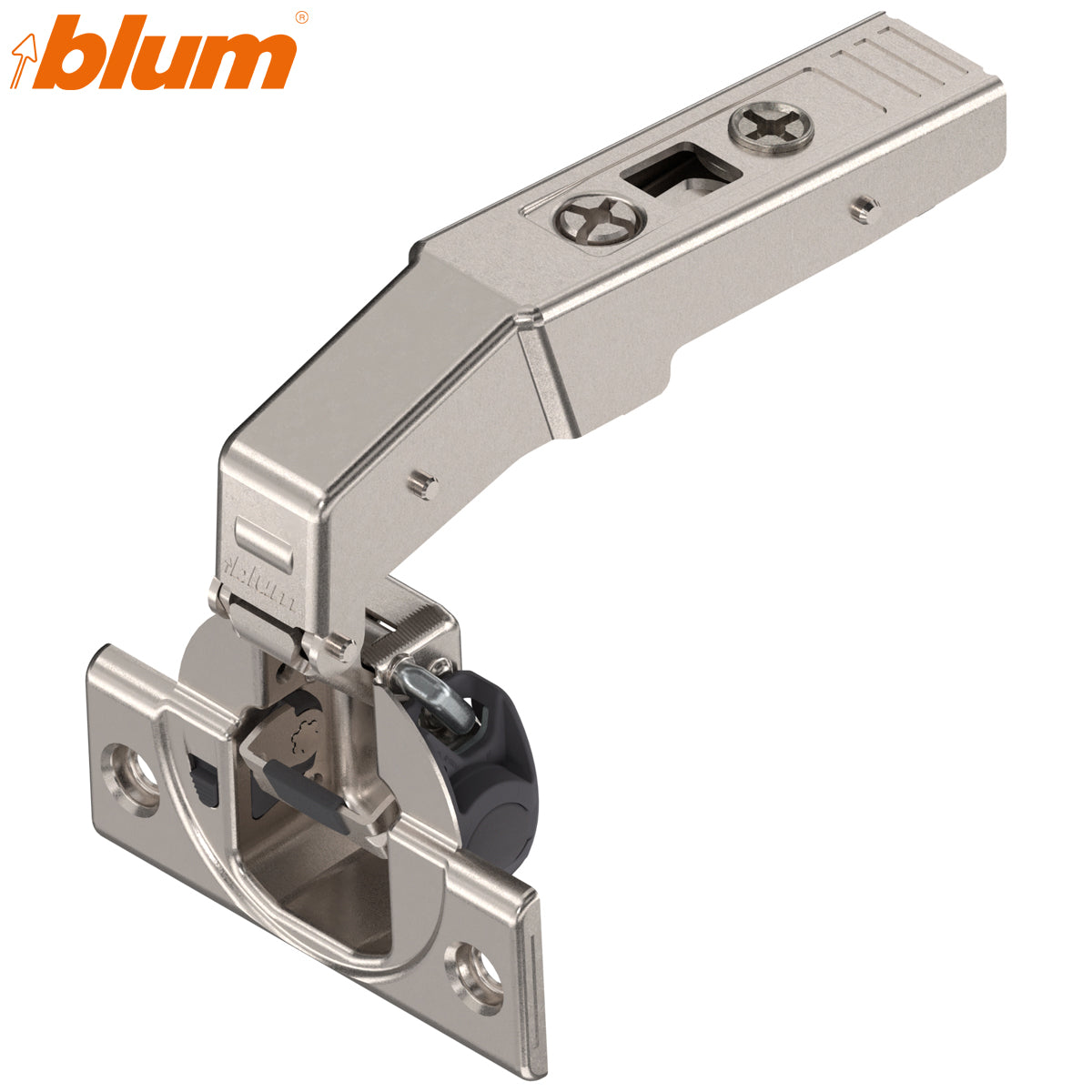

Name: Blum 79B9550 CLIP top BLUMOTION 95° Inset Blind-Corner Screw-On Hinge – Nickel
Brand: JULIUS BLUM UK LTD
SKU: HI79B955
Price: 4.11 GBP
Availability: InStock

PRODUCT DESCRIPTION

Blum 79B9550 CLIP top BLUMOTION 95° Inset Blind-Corner Hinge

The Blum 79B9550 is a specialist 95° inset blind-corner hinge with a conventional screw-on hinge-cup fixing. It is designed for mounting a cabinet door to an inset muntin or fixed blind-corner panel rather than directly to a standard cabinet side.

Integrated BLUMOTION provides smooth, controlled soft closing and can be switched off at an individual hinge when required. The sprung mechanism pulls the door closed, while Blum's CLIP connection allows the door to be attached to or removed from the mounting plate without tools.

Key features

Specialist hinge for inset blind-corner applications
95° opening angle
Integrated, switchable BLUMOTION soft close
Sprung self-closing mechanism
Screw-on 35mm hinge-cup fixing
Nickel-plated steel hinge cup and arm
CLIP attachment for tool-free door installation and removal
Three-dimensional adjustment with a suitable mounting plate

Technical specifications

Manufacturer	Blum
Manufacturer part number	79B9550
Blum item number	09350503
Hart SKU	HI79B955
Application	Inset blind-corner door
Opening angle	95°
Closing mechanism	Sprung with integrated, switchable BLUMOTION
Hinge-cup fixing	Screw-on
Hinge-cup diameter	35mm
Hinge-cup drilling depth	13mm
Hinge-cup fixing-hole spacing	45mm
Fixing-hole offset	9.5mm
Permitted cup drilling distance	3–7mm
Factory-set fixed dimension	-8mm
Side adjustment	±2.5mm
Depth adjustment	±1mm
Height adjustment	±3mm through the mounting plate
Specified gap	3mm
Finish	Nickel plated
GTIN/EAN	9002617794403
Pack contents	1 hinge

Blind-corner installation requirements

This hinge requires a 3mm-spaced standard Blum CLIP mounting plate for the planned inset blind-corner application. Blum specifies that the standard mounting-plate fixing positions are moved 15.5mm towards the edge of the muntin, giving a mounting setback of 21.5mm.

The required reveal is calculated using F = 8mm minus the hinge-cup drilling distance (TB). Door thickness, cup drilling distance and mounting position must therefore be considered together.

Blum provides planning values for fronts from 16–32mm thick. Trial fitting is recommended for the combinations marked by Blum, particularly when using thicker fronts.

Please note: The mounting plate and hinge-cup fixing screws are not included unless specifically stated. Check the complete application against Blum's blind-corner planning information before production drilling.

79B9550 or 79B9950?

Choose the 79B9550 when the door sits inset within the blind-corner opening. Choose the 79B9950 when the door overlays the supporting frame or muntin. The two hinges have different arm geometry and are not interchangeable.

Related hinges

Frequently asked questions

What is the Blum 79B9550 used for?

It is used to hinge an inset cabinet door from a muntin or fixed panel in a blind-corner cabinet.

Does it include soft closing?

Yes. BLUMOTION soft closing is integrated into the hinge and can be switched off individually when necessary.

What does screw-on mean?

It means that the 35mm hinge cup is secured to the door with screws. The hinge arm still connects to a separate Blum CLIP mounting plate.

Which mounting plate is required?

Use a compatible 3mm-spaced standard Blum CLIP mounting plate for the planned inset blind-corner application.

What is the correct cup drilling depth?

The 35mm hinge cup requires a drilling depth of 13mm.

TECHNICAL DETAILS

Application: Inset
Size: 95mm
Finish: Nickel Plated
Colour: Nickel
Material: Steel
