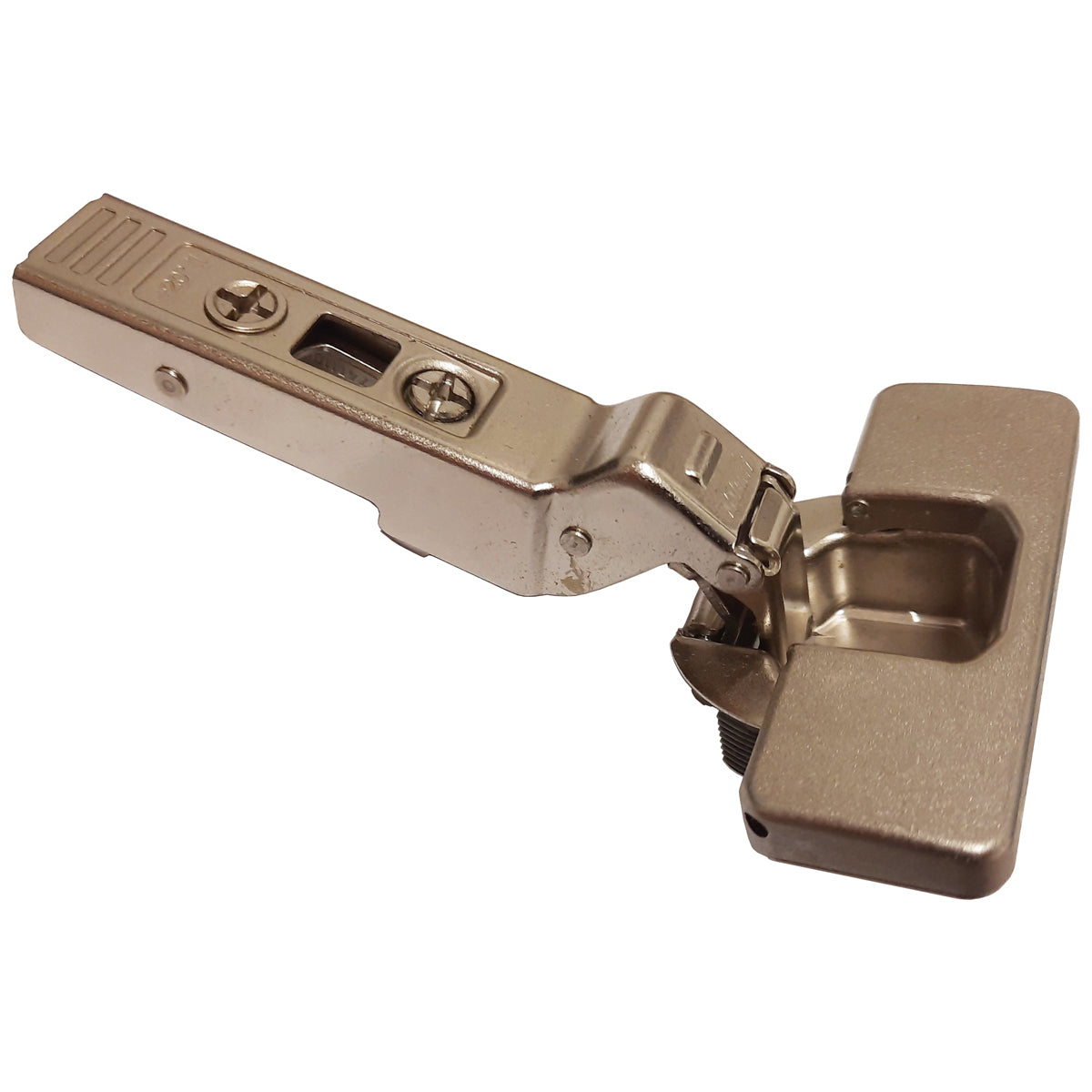

BLUM CLIP ANGLED HINGE +20deg ll INSET SCREW-ON

BLUM CLIP ANGLED HINGE +20deg ll INSET SCREW-ON

Stock Code: HI79A9595T

£3.29 GBP
Sale
View full details

PRODUCT DESCRIPTION

Blum CLIP top 79A9595.T +20° Type II Overlay INSERTA Hinge

The Blum 79A9595.T is a sprung CLIP top concealed hinge for +20° Type II overlay angled-cabinet applications. It provides a 95° opening angle and uses Blum's tool-free INSERTA cup fixing for quick installation in prepared doors.

This legacy CLIP top hinge is self-closing but does not contain integrated BLUMOTION. For the corresponding soft-close version, see the Blum 79B9595 +20° Type II BLUMOTION INSERTA hinge.

  • Blum CLIP top concealed hinge
  • Manufacturer part number: 79A9595.T
  • Hart SKU: HI79A9595T
  • +20° Type II angled-cabinet application
  • Overlay hinge configuration
  • 95° opening angle
  • Sprung, self-closing action
  • Tool-free INSERTA cup fixing
  • 35mm hinge cup with 13mm drilling depth
  • Nickel-plated finish
  • Mounting plate sold separately

Technical specification

Manufacturer Blum
Product system CLIP top
Manufacturer part number 79A9595.T
Hart SKU HI79A9595T
Cabinet angle +20° Type II
Application Overlay angled-cabinet door
Opening angle 95°
Closing action Sprung/self-closing
Integrated soft close No
Cup fixing INSERTA, tool-free
Cup diameter 35mm
Cup drilling depth 13mm
Mounting-plate connection CLIP, tool-free
Finish Nickel plated
Quantity supplied One hinge

Mounting plate

A CLIP mounting plate is required and is sold separately. The correct plate height depends on the cabinet construction, door thickness and required overlay. For a standard +20° Type II overlay application, Blum's current planning information shows a 0mm plate such as 173H7100 for application number 4, but the installation should always be checked against the cabinet dimensions.

Browse the Blum CLIP top mounting-plate range or view all Blum CLIP top hinges.

Frequently asked questions

Is the Blum 79A9595.T sprung?

Yes. It is a sprung, self-closing hinge. It should not be described as unsprung.

Does it use a screw-on hinge cup?

No. This version uses Blum's tool-free INSERTA fixing with expanding dowels. It requires a correctly prepared drilling pattern.

Is this an inset hinge?

No. It is intended for a +20° Type II overlay angled-cabinet application. The final overlay depends on the mounting plate and cabinet geometry.

Does this hinge include BLUMOTION?

No. For integrated soft closing, use the Blum 79B9595 BLUMOTION INSERTA version.

Can it be used with TIP-ON?

This sprung version is not the normal free-swing hinge specification for TIP-ON handleless doors.

Is a mounting plate included?

No. One hinge is supplied; the compatible CLIP mounting plate must be ordered separately.

TECHNICAL DETAILS

  • Application: Inset
  • Finish: Nickel Plated
  • Colour: Nickel
  • Material: Steel
