Blum 79B9595 CLIP top BLUMOTION +20° Type II Overlay INSERTA Hinge – Nickel

Blum 79B9595 CLIP top BLUMOTION +20° Type II Overlay INSERTA Hinge – Nickel

Stock Code: HI79B9595

£5.16 GBP
Sale
View full details

PRODUCT DESCRIPTION

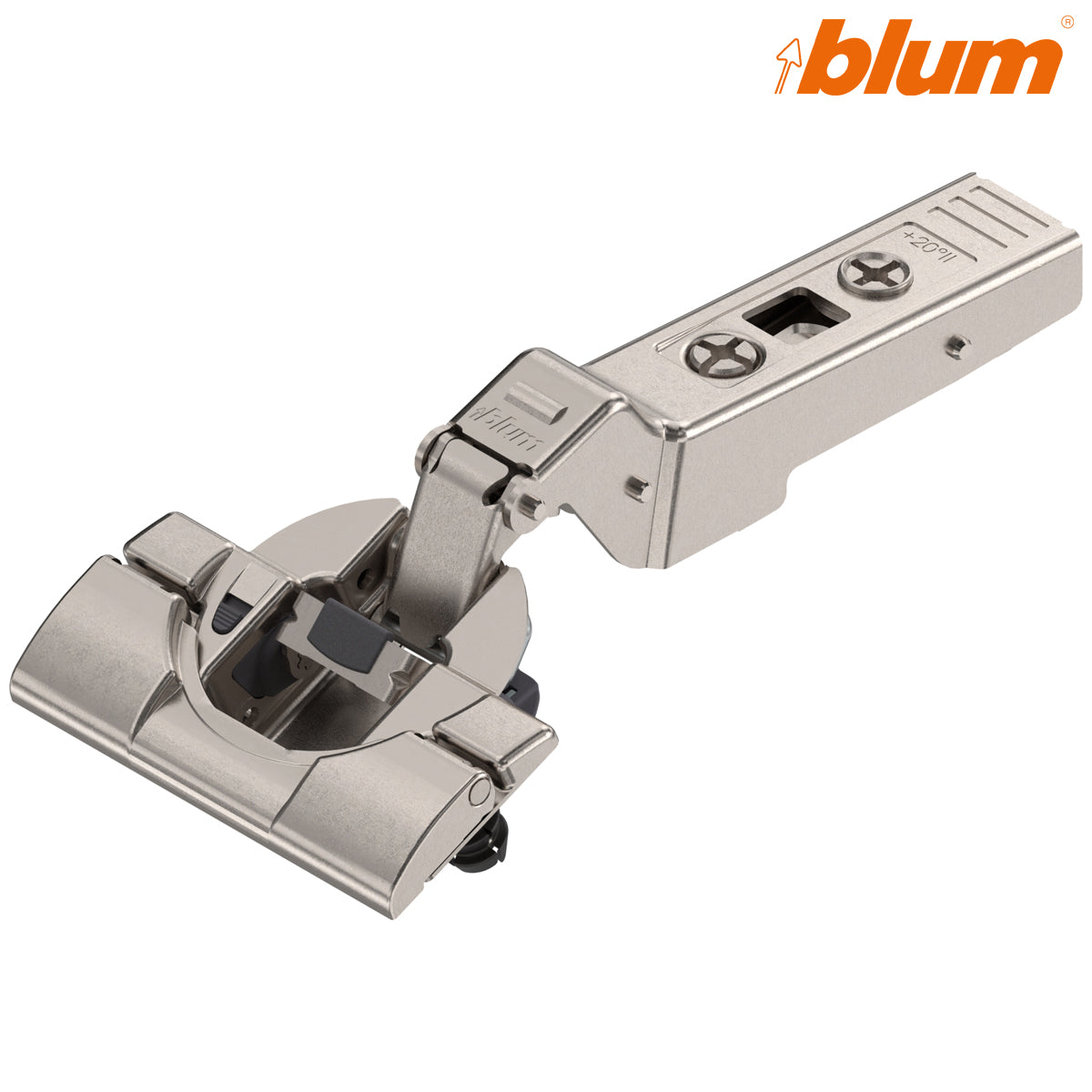

Blum 79B9595 +20° Type II Angled BLUMOTION Hinge

The Blum 79B9595 is a specialist +20° Type II angled overlay hinge for cabinets where the hinge-side mounting surface is positioned at a 20° cabinet angle. It allows an overlay door to be mounted on angled, diagonal or non-square cabinet constructions without relying on a standard straight hinge and improvised packing.

The hinge has a separate 95° door opening angle. The +20° figure describes the cabinet application angle and must not be confused with the distance the door opens.

Integrated BLUMOTION provides controlled soft closing and can be switched off at an individual hinge when required. The INSERTA fixing secures the hinge cup to the prepared door without separate fixing screws.

Key features

  • Specialist +20° Type II angled hinge
  • Overlay cabinet-door application
  • 20° cabinet angle
  • 95° door opening angle
  • Integrated, switchable BLUMOTION soft close
  • Sprung self-closing mechanism
  • Tool-free INSERTA hinge-cup fixing
  • Tool-free CLIP door attachment and removal
  • Nickel-plated steel hinge cup and arm
  • Three-dimensional front adjustment

Technical specifications

Manufacturer Blum
Manufacturer part number 79B9595
Blum item number 09348173
Hart SKU HI79B9595
Application +20° Type II angled overlay door
Cabinet angle 20°
Opening angle 95°
Closing mechanism Sprung with integrated, switchable BLUMOTION
Hinge-cup fixing Tool-free INSERTA
Hinge-cup diameter 35mm
Hinge-cup drilling depth 13mm
Fixing-hole diameter 8mm
Fixing-hole spacing 45mm
Fixing-hole offset 9.5mm
Permitted cup drilling distance 3–7mm
Factory-set fixed dimension 5.81mm
Side adjustment ±1.8mm
Depth adjustment ±2mm
Height adjustment ±3mm through the mounting plate
Factory-set gap 1mm
Finish Nickel plated
GTIN/EAN 9002617794564
Pack contents 1 hinge

Understanding +20° Type II

The +20° designation refers to the angle of the cabinet construction at the hinge side. The hinge compensates for that angled mounting surface while supporting an overlay door.

Type II identifies this particular direction and geometry within Blum's angled-hinge system. A Type I hinge, negative-angle hinge or ordinary straight hinge should not be substituted solely because it has a similar-looking arm.

Mounting-plate planning

For Blum's standard +20° Type II overlay application No. 4, the factory-setting solution uses a 0mm mounting plate. A suitable option is a Blum 173H7100-series 0mm CLIP mounting plate.

The same angled hinge can appear in other planned door positions when combined with different mounting-plate spacings or angled spacers. These alternatives are not interchangeable without recalculating the application.

Please note: The mounting plate is not included. Confirm the cabinet angle, overlay position, drilling distance, door thickness and required gap using Blum's angled-application planning information or Product Configurator before drilling. A trial installation is recommended.

INSERTA door preparation

Prepare a 35mm hinge-cup hole to a depth of 13mm. Two additional 8mm fixing holes are required at 45mm centres with a 9.5mm offset from the cup centre line.

Position the INSERTA cup in the prepared holes and close the fixing lever. The expanding pins secure the cup to the door without separate hinge-cup screws.

Related hinges

Frequently asked questions

Does +20° mean the door only opens 20°?

No. The +20° figure describes the cabinet application angle. The door itself opens to approximately 95°.

What does Type II mean?

Type II identifies the hinge's angled geometry and direction within Blum's angled-application system. It helps distinguish the hinge from Type I and negative-angle versions.

Does the hinge include BLUMOTION?

Yes. BLUMOTION soft closing is integrated and can be switched off individually when required.

What does INSERTA mean?

INSERTA is Blum's tool-free hinge-cup fixing system. It secures the cup in a prepared 35mm hole with two 8mm fixing holes without separate fixing screws.

Is the mounting plate included?

No. The appropriate Blum CLIP mounting plate must be selected separately according to the planned angled application.
