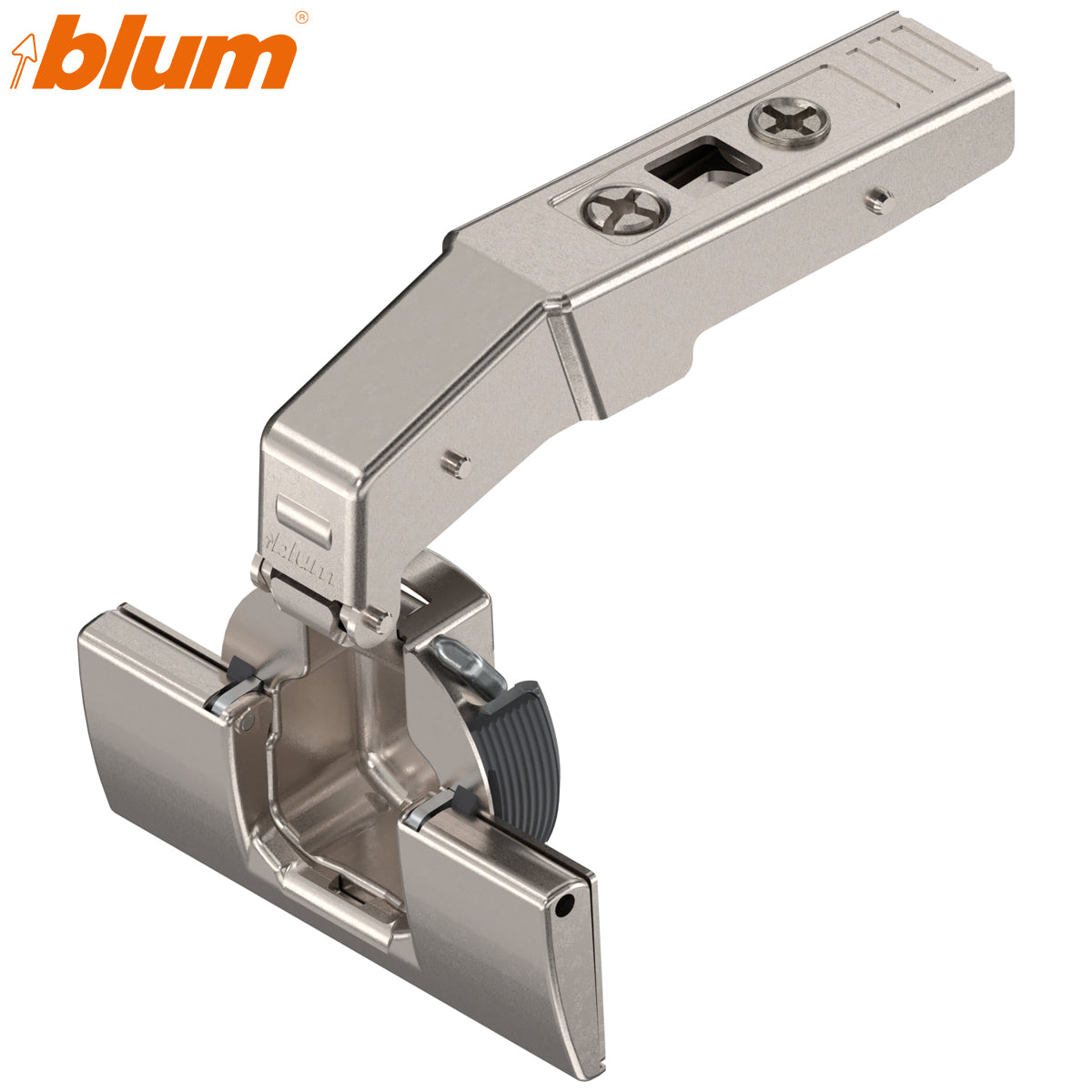

  • Blum 79T9590B sprung 95° inset blind-corner INSERTA hinge in nickel
1 1

Blum 79T9590B CLIP top 95° Inset Blind-Corner INSERTA Hinge – Sprung, Nickel

Blum 79T9590B CLIP top 95° Inset Blind-Corner INSERTA Hinge – Sprung, Nickel

Stock Code: HI79T9590B

£2.66 GBP
Sale
View full details

PRODUCT DESCRIPTION

Blum 79T9590B CLIP top 95° Inset Blind-Corner Hinge

The Blum 79T9590B is a sprung 95° inset blind-corner hinge for mounting a cabinet door to an inset muntin or fixed blind-corner panel. It combines a self-closing spring mechanism with Blum's tool-free INSERTA hinge-cup fixing and CLIP mounting-plate connection.

This is a standard CLIP top hinge without integrated BLUMOTION. Its hinge arm is designed to accept a compatible optional BLUMOTION 973A clip-on soft-close unit when controlled soft closing is required.

Key features

  • Specialist hinge for inset blind-corner cabinet applications
  • 95° opening angle
  • Sprung, self-closing mechanism
  • Suitable for an optional clip-on BLUMOTION 973A unit
  • Tool-free INSERTA hinge-cup installation
  • 35mm steel hinge cup
  • Nickel-plated hinge cup and arm
  • CLIP mechanism for tool-free door attachment and removal
  • Three-dimensional adjustment with a suitable mounting plate

Technical specifications

Manufacturer Blum
Manufacturer part number 79T9590B
Blum item number 06914543
Hart SKU HI79T9590B
Application Inset blind-corner door
Opening angle 95°
Closing mechanism With spring – self-closing
Soft-close provision Suitable for an optional BLUMOTION 973A clip-on unit
Hinge-cup fixing Tool-free INSERTA
Hinge-cup diameter 35mm
Hinge-cup drilling depth 12.6mm
Fixing-hole diameter 8mm
Fixing-hole spacing 45mm
Fixing-hole offset 9.5mm
Permitted cup drilling distance 3–7mm
Side adjustment ±2.5mm
Depth adjustment ±1mm
Height adjustment ±3mm through the mounting plate
Specified gap 3mm
Finish Nickel plated
GTIN/EAN 9002617648126
Pack contents 1 hinge

Blind-corner installation requirements

For the planned inset blind-corner application, use a 3mm-spaced standard Blum CLIP mounting plate. Blum specifies that the normal mounting-plate fixing positions are moved 15.5mm towards the edge of the muntin, giving a mounting setback of 21.5mm.

The required reveal is calculated using F = 8mm minus the hinge-cup drilling distance (TB). Door thickness, drilling distance and mounting position must therefore be considered together. Trial fitting is recommended where indicated by Blum's planning table, particularly with thicker fronts.

Please note: The mounting plate and optional BLUMOTION 973A unit are not included. Both must be ordered separately if required.

Choosing between this hinge and the 79B9590

Choose the 79T9590B when a sprung CLIP top blind-corner hinge is required and soft closing is not needed or will be provided by an optional clip-on BLUMOTION unit. Choose the 79B9590 when integrated, switchable BLUMOTION soft closing is preferred.

Related hinges

Frequently asked questions

Is the Blum 79T9590B sprung or unsprung?

It is sprung. The hinge has an internal spring that provides a self-closing action.

Does this hinge have integrated BLUMOTION?

No. Soft closing is not built into the hinge, but the hinge is designed to accept a compatible optional BLUMOTION 973A clip-on unit.

What does INSERTA mean?

INSERTA is Blum's tool-free hinge-cup fixing system. The hinge cup is secured in a prepared 35mm cup hole with two 8mm fixing holes, without separate cup-fixing screws.

What is the correct hinge-cup drilling depth?

The official drilling depth for the 79T9590B hinge cup is 12.6mm.

Is the mounting plate included?

No. A compatible 3mm-spaced Blum CLIP mounting plate must be ordered separately.

TECHNICAL DETAILS

  • Application: Inset
  • Finish: Nickel Plated
  • Colour: Nickel
  • Material: Steel
