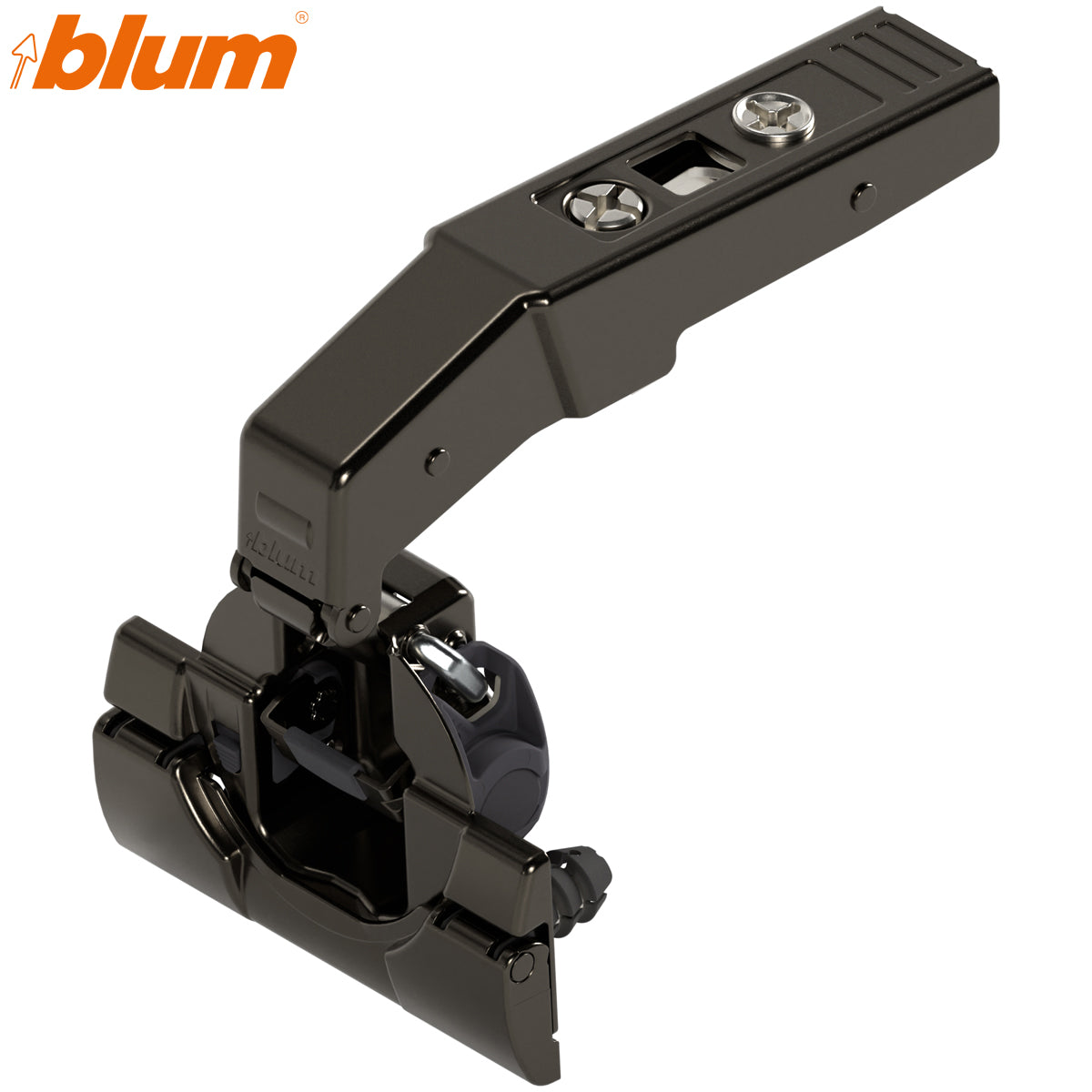

  • Blum 79B9590 CLIP top BLUMOTION 95 degree inset blind corner INSERTA hinge in Onyx Black
1 1

Blum 79B9590 CLIP top BLUMOTION 95° Inset Blind-Corner INSERTA Hinge – Onyx Black

Blum 79B9590 CLIP top BLUMOTION 95° Inset Blind-Corner INSERTA Hinge – Onyx Black

Stock Code: HIO79B9590

£5.08 GBP
Sale
View full details

PRODUCT DESCRIPTION

Blum 79B9590 CLIP top BLUMOTION 95° Blind-Corner Hinge

The Blum 79B9590 is a specialist 95° inset blind-corner hinge for attaching a cabinet door to an inset muntin or fixed blind-corner panel. Its Onyx Black finish makes it particularly suitable for dark doors, cabinets and exposed interior hardware.

Integrated BLUMOTION provides controlled soft closing and can be switched off at an individual hinge when required. The INSERTA fixing system allows the 35mm hinge cup to be secured to the door without screws or tools.

Key features

  • Specialist inset hinge for blind-corner cabinet applications
  • 95° opening angle
  • Integrated, switchable BLUMOTION soft close
  • Sprung closing mechanism
  • Tool-free INSERTA hinge-cup fixing
  • Onyx Black steel hinge cup and arm
  • CLIP attachment for tool-free door removal and installation
  • Three-dimensional adjustment when used with a suitable mounting plate

Technical specifications

Manufacturer Blum
Part number 79B9590
Blum item number 02716755
Hart SKU HIO79B9590
Application Inset blind-corner door
Opening angle 95°
Closing mechanism Sprung, with integrated switchable BLUMOTION
Hinge-cup fixing Tool-free INSERTA
Hinge-cup diameter 35mm
Hinge-cup drilling depth 13mm
Fixing-hole diameter 8mm
Fixing-hole spacing 45mm
Fixing-hole offset 9.5mm
Permitted drilling distance 3–7mm
Side adjustment ±2.5mm
Depth adjustment ±1mm
Height adjustment ±3mm through the mounting plate
Finish Onyx Black
GTIN/EAN 9009494216929
Pack contents 1 hinge

Blind-corner installation notes

This hinge uses a 3mm-spaced standard Blum CLIP mounting plate. For the blind-corner application, Blum specifies that the standard mounting-plate fixing positions are moved 15.5mm towards the edge of the muntin, giving a 21.5mm mounting setback.

The required front reveal is calculated as F = 8mm minus the hinge-cup drilling distance (TB). Door thickness, drilling distance and cabinet construction must therefore be considered together. Trial fitting is recommended where required by Blum's planning table, particularly with thicker fronts.

Please note: The mounting plate is not included and must be ordered separately. Do not combine CLIP top BLUMOTION hinges with standard non-BLUMOTION CLIP top hinges on the same door.

Related products

Frequently asked questions

What is a blind-corner hinge?

It is a specialist hinge used when a door is attached to an inset muntin or fixed panel within a blind-corner cabinet, rather than directly to a conventional cabinet side.

Does the hinge include soft closing?

Yes. BLUMOTION soft close is integrated into the hinge and can be switched off on an individual hinge if necessary.

What does INSERTA mean?

INSERTA is Blum's tool-free hinge-cup fixing. A lever expands the fixing pins inside the prepared 8mm door holes, so separate cup-fixing screws are not required.

Is a mounting plate included?

No. A compatible 3mm-spaced Blum CLIP mounting plate must be ordered separately.

What is the required hinge-cup drilling depth?

The 35mm hinge cup requires a drilling depth of 13mm.

TECHNICAL DETAILS

  • Application: Inset
  • Finish: Onyx Black
  • Colour: Onyx Black
  • Material: Steel
