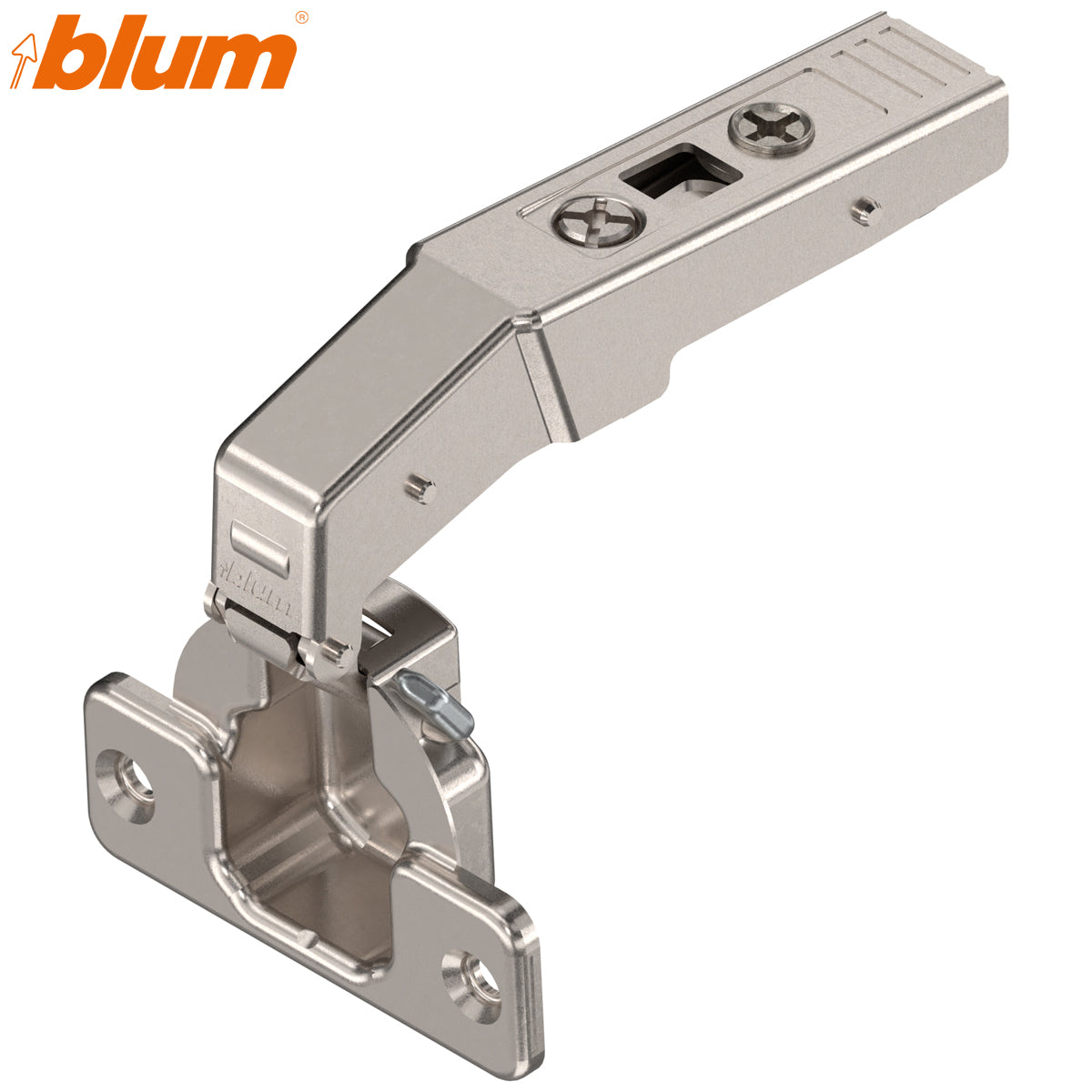

Blum 78T9550.TL CLIP top 95° Inset Blind-Corner Screw-On Hinge – Unsprung, Nickel

Blum 78T9550.TL CLIP top 95° Inset Blind-Corner Screw-On Hinge – Unsprung, Nickel

Stock Code: HI78T9550.TL

£2.28 GBP
Sale
View full details

PRODUCT DESCRIPTION

Blum 78T9550.TL CLIP top 95° Unsprung Blind-Corner Hinge

The Blum 78T9550.TL is an unsprung 95° inset blind-corner hinge with a screw-on hinge-cup fixing. It is designed for mounting a cabinet door to an inset muntin or fixed blind-corner panel and provides the free movement required for a push-to-open door arrangement.

Unlike a conventional self-closing hinge, the 78T9550.TL has no closing spring. It is specifically designed for use with a compatible, separately purchased Blum TIP-ON for doors unit, allowing a handleless door to open when pressed.

Key features

  • Specialist hinge for inset blind-corner cabinets
  • 95° opening angle
  • Unsprung, free-swing mechanism
  • Designed for TIP-ON push-to-open applications
  • No integrated BLUMOTION soft close
  • Screw-on 35mm hinge-cup fixing
  • Nickel-plated steel hinge cup and arm
  • Tool-free CLIP door attachment and removal
  • Three-dimensional adjustment with a suitable mounting plate

Technical specifications

Manufacturer Blum
Manufacturer part number 78T9550.TL
Blum item number 07655553
Hart SKU HI78T9550.TL
Application Inset blind-corner door
Opening angle 95°
Closing mechanism Unsprung/free-swing
TIP-ON compatibility Designed with free movement for TIP-ON
Integrated soft close No
Hinge-cup fixing Screw-on
Hinge-cup diameter 35mm
Hinge-cup drilling depth 12.3mm
Hinge-cup fixing centres 45mm
Fixing-hole offset 9.5mm
Permitted cup drilling distance 3–7mm
Factory-set fixed dimension -8mm
Side adjustment ±2.5mm
Depth adjustment ±1mm
Height adjustment ±3mm through the mounting plate
Specified gap 3mm
Finish Nickel plated
GTIN/EAN 9002617694086
Pack contents 1 hinge

Using this hinge with TIP-ON

The 78T9550.TL has no closing spring, allowing the door to move freely when operated by a compatible Blum TIP-ON push-to-open unit. Pressing the door activates the TIP-ON plunger and releases the door into an open position.

The TIP-ON unit, catch or magnet components and any required adapter are not included. Select the appropriate TIP-ON version according to the door size, weight, construction and required plunger travel.

Do not combine this unsprung TIP-ON hinge with integrated BLUMOTION hinges on the same door. Soft-close and push-to-open systems require different hinge and closing configurations.

Blind-corner mounting requirements

For the planned inset blind-corner application, use a 3mm-spaced standard Blum CLIP mounting plate. Blum specifies that the standard mounting-plate fixing positions are moved 15.5mm towards the edge of the muntin, producing a 21.5mm mounting setback.

The required reveal is calculated using: F = 8mm minus the hinge-cup drilling distance (TB). Check the door thickness, drilling distance, mounting-plate position and finished gap before production drilling.

Please note: The mounting plate, TIP-ON mechanism and hinge-cup fixing screws are not included unless expressly stated.

Choosing the correct closing action

Hinge Closing action Typical use
78T9550.TL Unsprung/free-swing TIP-ON push-to-open door
79T9550 Sprung/self-closing Standard self-closing door without integrated soft close
79B9550 Sprung with integrated BLUMOTION Soft-closing door

Related hinges

Frequently asked questions

Is the Blum 78T9550.TL sprung?

No. It is an unsprung, free-swing hinge designed for push-to-open operation with a compatible TIP-ON unit.

Does the hinge include TIP-ON?

No. The hinge is suitable for a TIP-ON arrangement, but the TIP-ON mechanism and related components must be ordered separately.

Does it include BLUMOTION?

No. This hinge has neither an integrated closing spring nor integrated soft closing. Choose the 79B9550 if built-in BLUMOTION is required.

Is this the same as 79T9550?

No. The 78T9550.TL is unsprung for TIP-ON, while the 79T9550 is sprung and self-closing.

What is the correct hinge-cup drilling depth?

The official drilling depth for the 78T9550.TL hinge cup is 12.3mm.
