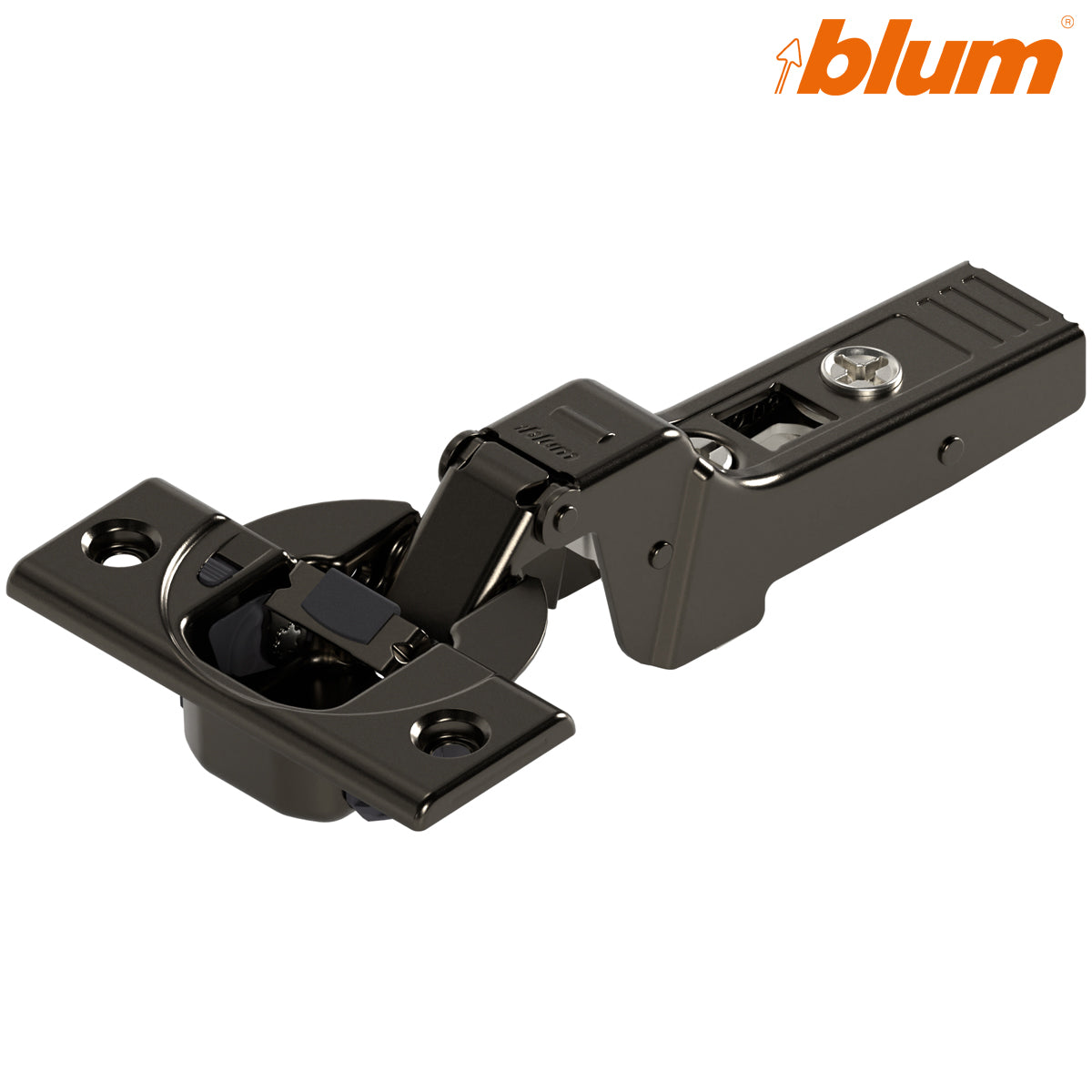

Name: Blum 71B9650 BLUMOTION 95° Thick-Door Half Overlay Screw-On Hinge – Onyx Black
Brand: JULIUS BLUM UK LTD
SKU: HIO71B9650
Price: 3.99 GBP
Availability: InStock

PRODUCT DESCRIPTION

Blum 71B9650 CLIP top BLUMOTION 95° Half Overlay Hinge – Onyx Black

The Blum 71B9650 is a 95° CLIP top BLUMOTION hinge designed for thick or profiled cabinet doors in a dual, commonly called half-overlay, application. Its cranked hinge arm allows two doors to be fitted to opposite sides of the same central cabinet panel.

This version combines a screw-on 35mm hinge cup with integrated BLUMOTION soft-close technology and Blum's distinctive Onyx Black finish.

Key features

95° opening angle
Dual or half-overlay application
Designed for thick and profiled cabinet fronts
Suitable for front thicknesses from approximately 16mm to 32mm, subject to application planning
Integrated BLUMOTION soft-close mechanism
BLUMOTION can be deactivated when required for smaller or lighter doors
Screw-on 35mm hinge cup
Tool-free CLIP connection to a compatible mounting plate
Three-dimensional door adjustment
Onyx Black finish
Supplied as one hinge

Half-overlay application

A half-overlay hinge is typically used where two cabinet doors share the same central partition. Each door covers part of the panel edge when closed. Correct mounting-plate height and cabinet drilling positions must be selected for the required overlay and door clearance.

Installation information

Hinge cup diameter: 35mm
Approximate cup drilling depth: 13mm
Screw-fixing centres: 45mm
Recommended cup drilling distance: 3–7mm, subject to the application
Side adjustment: approximately ±2mm
Depth adjustment: approximately +3/−2mm
Height adjustment is provided through the selected mounting plate

Please note: The compatible Blum CLIP mounting plate and fixing screws are sold separately. Door thickness alone does not confirm suitability; cup distance, profile shape, overlay, reveal and opening clearance should be checked during planning.

Blum advises against combining CLIP top BLUMOTION and standard non-BLUMOTION CLIP top hinges on the same door.

Frequently asked questions

What is a dual or half-overlay hinge?

It is used when two doors share a central cabinet panel. The cranked hinge arm positions each door so that it covers only part of the panel edge.

Is the mounting plate included?

No. A compatible Blum CLIP mounting plate must be ordered separately and selected according to the required overlay and cabinet construction.

What does screw-on mean?

It means the 35mm hinge cup is secured to the back of the door using screws. It does not describe the separately purchased cabinet mounting plate.

Can this hinge be used on a 32mm-thick door?

The official planning information covers fronts up to approximately 32mm. Final suitability depends on the door profile, cup position, required reveal and opening clearance.

Can the soft-close action be turned off?

Yes. The integrated BLUMOTION mechanism can be deactivated when reduced closing resistance is needed for a small or lightweight door.

TECHNICAL DETAILS

Application: Dual
Finish: Onyx Black
Colour: Onyx Black
Material: Steel
