PRODUCT DESCRIPTION

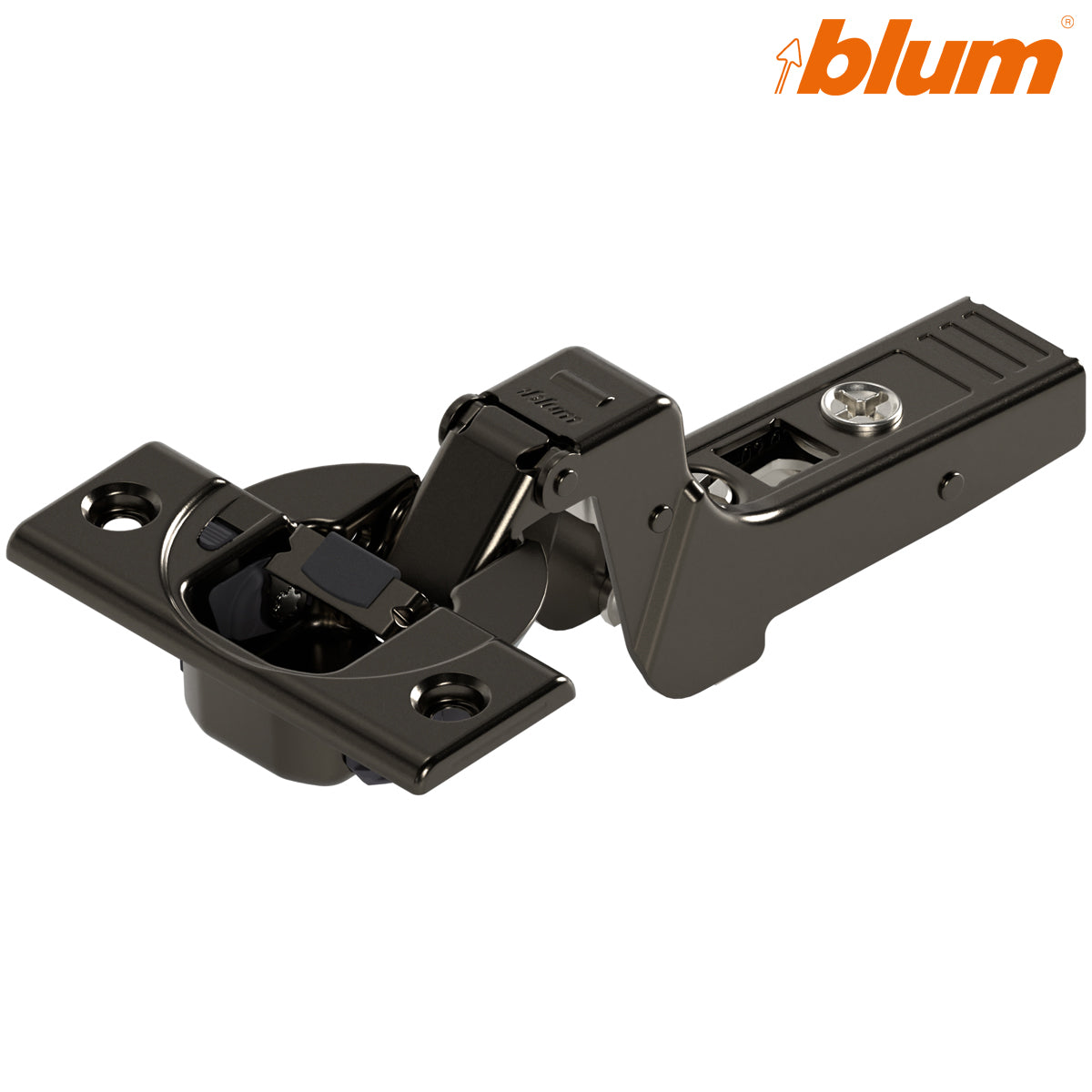

Blum CLIP top BLUMOTION 95° thick-door inset screw-on hinge – Onyx Black
The Blum 71B9750 CLIP top BLUMOTION hinge is designed for thick or profiled inset cabinet doors. Its full-cranked geometry positions the closed door inside the cabinet opening while providing clearance for thicker doors and decorative edge profiles.
The 95° opening angle controls door movement and reduces the space required behind the open door compared with a standard 110° hinge. Integrated BLUMOTION soft closing provides smooth, quiet closing and can be deactivated on individual hinges when reduced damping is required.
Key features
- Blum CLIP top BLUMOTION profile-door hinge
- Blum part number: 71B9750
- Hart Wholesale SKU: HIO71B9750
- Inset application with full-cranked hinge geometry
- Suitable for approximately 16–32 mm door thickness, subject to planning
- 95° opening angle
- Integrated, deactivatable BLUMOTION soft close
- Traditional screw-on hinge-cup fixing
- 35 mm steel hinge cup
- Tool-free CLIP attachment to the mounting plate
- Three-dimensional front adjustment
- Onyx Black finish
- Supplied as one hinge
- Mounting plate sold separately
Technical specifications
| Application | Inset thick/profile door |
|---|---|
| Hinge-arm type | Full-cranked |
| Opening angle | 95° |
| Closing action | Spring closing with integrated, deactivatable BLUMOTION |
| Hinge-cup fixing | Screw-on |
| Hinge-cup diameter | 35 mm |
| Cup drilling depth | 13 mm |
| Fixing-hole centres | 45 mm |
| Cup drilling distance | 3–7 mm |
| Side adjustment | ±2 mm |
| Depth adjustment | +3 mm / −2 mm |
| Material | Steel |
| Finish | Onyx Black |
| Quantity | One hinge |
| Mounting plate | Not included |
Inset installation planning
Because this is an inset hinge, the closed door sits inside the cabinet opening. The cabinet-side mounting-plate position must be planned for the door thickness, required gaps, drilling distance and cabinet construction. Trial fitting is recommended before machining a complete set of doors.
The screw-on hinge cup requires a 35 mm boring approximately 13 mm deep. Secure the cup using fixings appropriate for the door material and thickness.
Matching components
A compatible Blum CLIP top Onyx Black mounting plate is required and is purchased separately. For tool-free hinge-cup installation, compare the Blum 71B9790 Onyx Black INSERTA alternative.
For the nickel counterpart of this hinge, see the verified Blum HI71B9750 nickel 95° inset screw-on hinge. Browse the Blum CLIP top hinge range for related applications.
Frequently Asked Questions
What is a thick-door profile hinge?
It is a hinge with specialist geometry for thicker cabinet doors and doors with moulded, routed or profiled edges that need additional clearance during opening.
What door thickness can be used?
Blum planning information covers approximately 16 mm to 32 mm, subject to the edge profile, drilling distance and required clearance.
Does the hinge include soft close?
Yes. BLUMOTION soft closing is integrated into the hinge cup.
Can BLUMOTION be switched off?
Yes. The damping function can be deactivated on individual hinges when less closing resistance is required.
Is the mounting plate included?
No. A compatible Blum CLIP mounting plate must be selected and purchased separately.
Is the nickel counterpart available?
Yes. The verified nickel counterpart is HI71B9750, with Blum part number 71B9750.
Can this hinge be mixed with standard CLIP top hinges?
Blum advises that CLIP top BLUMOTION and standard CLIP top hinges should not be combined on the same cabinet door.
TECHNICAL DETAILS
- Application: Inset
- Finish: Onyx Black
- Colour: Onyx Black
- Material: Steel
