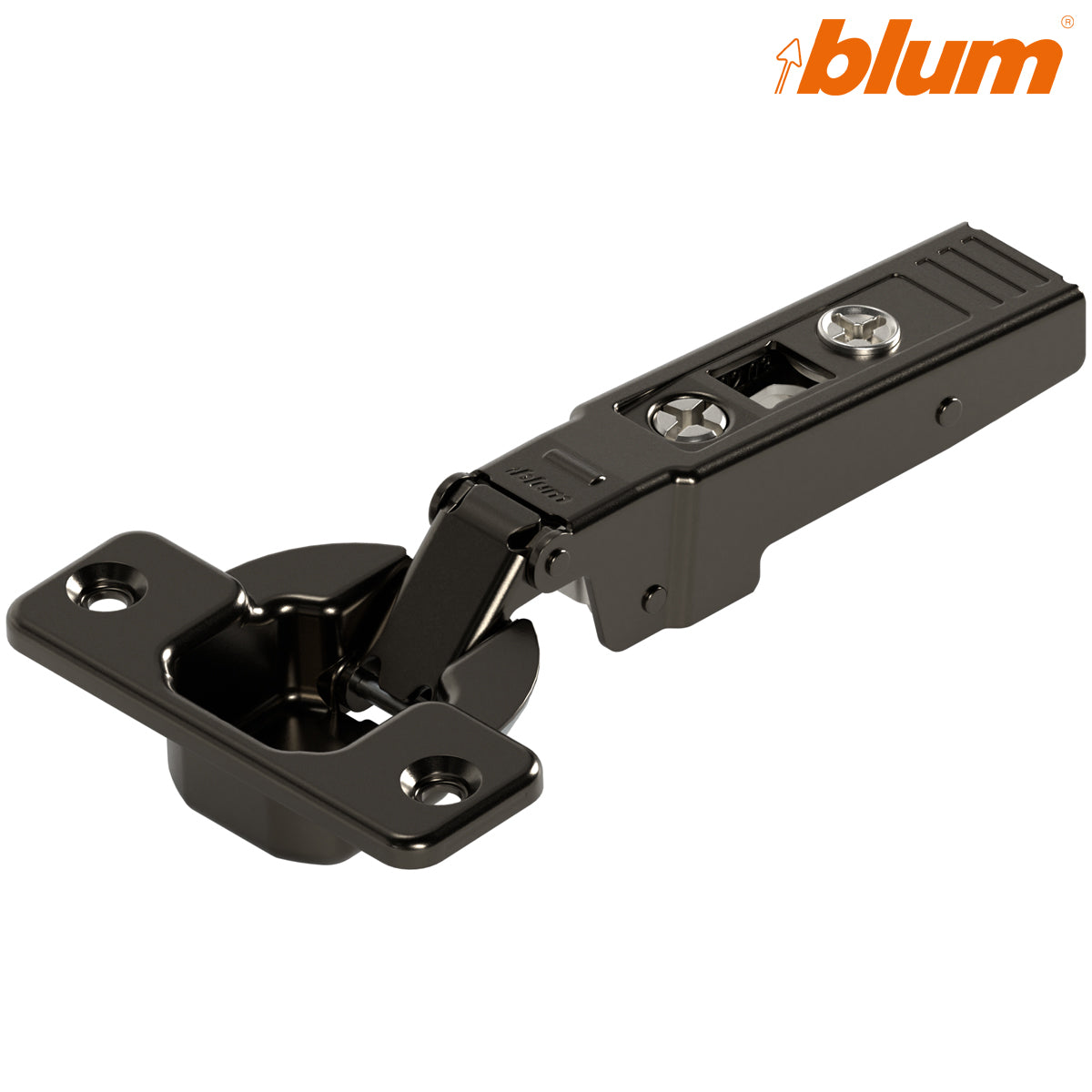

BLUM CLIP PROFILE DOOR HINGE 95deg OVERLAY UNSPRUNG SCREW-ON ONYX

BLUM CLIP PROFILE DOOR HINGE 95deg OVERLAY UNSPRUNG SCREW-ON ONYX

Stock Code: HIO70T9550TL

£2.13 GBP
Sale
View full details

PRODUCT DESCRIPTION

Blum CLIP top 95° Unsprung Overlay Hinge for Thick Doors

The Blum 70T9550.TL CLIP top hinge is a specialist 95° full-overlay unsprung hinge for thick, profiled and heavily rebated cabinet doors. Suitable for door thicknesses from 16mm to 32mm, it provides the additional clearance required where a standard 110° cabinet hinge may not be suitable.

This free-swing hinge has no self-closing spring and is designed primarily for use with a compatible Blum TIP-ON push-to-open system. It is an excellent choice for handleless kitchens, wardrobes and fitted furniture where the door front overlays the cabinet side and opens when pressed.

The premium Onyx Black finish discreetly complements dark cabinet interiors, black furniture fittings and contemporary handleless designs. Blum’s CLIP connection allows the hinge arm to attach to a compatible mounting plate without securing screws.

Key Features

  • Full-overlay hinge for thick and profiled cabinet doors
  • Suitable for door thicknesses from 16mm to 32mm
  • Unsprung, free-swing operation
  • Designed for Blum TIP-ON push-to-open applications
  • 95° opening angle
  • Straight hinge arm for overlay doors
  • Screw-on 35mm hinge cup
  • Tool-free CLIP connection to the mounting plate
  • Side and depth adjustment for accurate door alignment
  • Premium Onyx Black finish
  • Manufactured by Blum

Designed for TIP-ON Push-to-Open Doors

The 70T9550.TL has no self-closing spring or integrated BLUMOTION damper. Its free-moving action allows a correctly selected Blum TIP-ON unit to push the door away from the cabinet when the front is pressed.

Do not combine this unsprung hinge with sprung or soft-close hinges on the same door. Conflicting closing mechanisms can prevent the TIP-ON system from functioning correctly. Where soft closing is required, use the corresponding 71B9550 CLIP top BLUMOTION hinge instead.

Technical Specifications

Manufacturer Blum
Manufacturer part number 70T9550.TL
Onyx product reference 70T9550.TL.ONS
Hart Wholesale stock code HIO70T9550TL
Product range CLIP top
Door application Full overlay
Recommended door type Thick, profiled or heavily rebated cabinet doors
Door thickness 16–32mm
Opening angle 95°
Closing mechanism Unsprung/free-swing
Integrated BLUMOTION No
Recommended opening system Blum TIP-ON push-to-open
Hinge-arm style Straight/full overlay
Cup fixing Screw-on
Cup diameter 35mm
Cup drilling depth 13mm
Cup fixing-hole spacing 45mm
Required cup fixings 3.5 × 17mm screws
Side adjustment ±2mm
Depth adjustment +3mm / −2mm using the spiral adjustment screw
Height adjustment Via the selected mounting plate
Material Steel
Finish Onyx Black
Quantity supplied One hinge
Mounting plate included No – order separately
TIP-ON unit included No – order separately

Installation and Planning

The screw-on hinge cup requires a 35mm bore with a 13mm drilling depth. Use suitable 3.5 × 17mm screws and confirm that the fixing method is appropriate for the door material.

A compatible Blum CLIP mounting plate must be ordered separately. The final overlay depends on the selected mounting-plate height, cup distance, cabinet thickness and required door clearance. Always confirm the application using the relevant Blum planning information before drilling production doors.

Recommended Related Products

Frequently Asked Questions

What does unsprung mean?

An unsprung hinge has no self-closing spring. The door moves freely instead of being pulled shut, allowing a compatible TIP-ON unit to push the door open.

Is this hinge suitable for Blum TIP-ON?

Yes. The free-swing mechanism is designed for handleless doors operated by an appropriately selected Blum TIP-ON push-to-open unit. The TIP-ON component is sold separately.

Does the 70T9550.TL have soft close?

No. This hinge does not contain BLUMOTION and is intended for push-to-open applications. If soft closing is required, select the corresponding Blum 71B9550 CLIP top BLUMOTION hinge.

Can this hinge be mixed with soft-close hinges?

No. Unsprung and soft-close hinges should not be combined on the same door because the closing mechanisms work against one another and can prevent TIP-ON from operating correctly.

What is the difference between the 70T9550.TL and 70T9750.TL?

The 70T9550.TL is a straight-arm hinge for full-overlay doors. The 70T9750.TL has a full-cranked arm for inset doors that sit inside the cabinet opening. Both are 95° unsprung hinges for thick or profiled doors.

What is the difference between 70T9550.TL and 71B9550?

The 70T9550.TL is unsprung and designed for TIP-ON push-to-open operation. The 71B9550 is sprung and includes integrated BLUMOTION soft close.

Is it suitable for standard 18mm cabinet doors?

Yes. An 18mm door falls within the specified 16–32mm range. This hinge is especially useful where the door has a thick edge, profile or rebate requiring additional opening clearance.

Is the mounting plate included?

No. The hinge is supplied individually and requires a compatible Blum CLIP mounting plate, selected according to the cabinet construction and required overlay.

TECHNICAL DETAILS

  • Application: Overlay
  • Finish: Onyx Black
  • Colour: Onyx Black
  • Material: Steel
