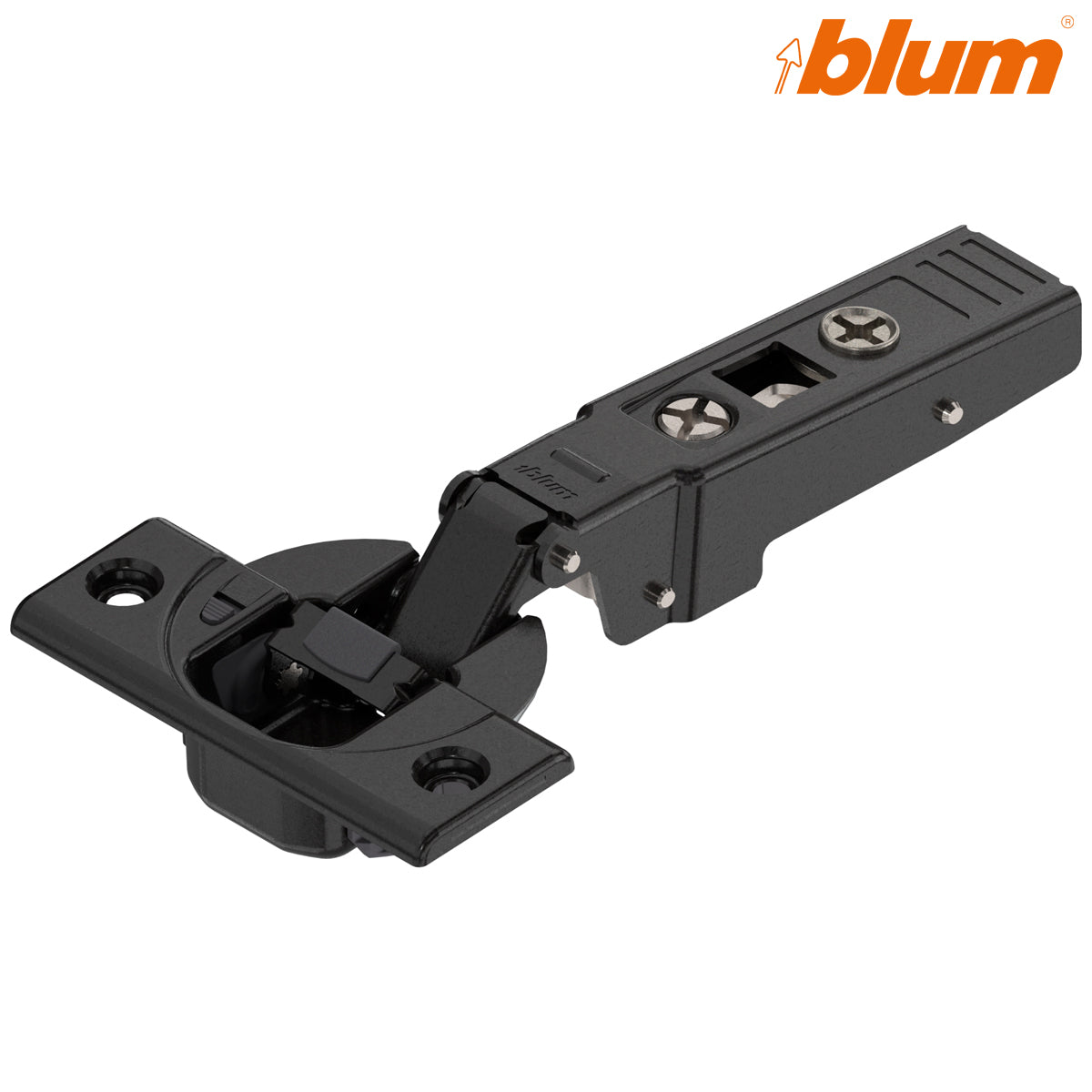

  • BLUM CLIP BLUMOTION PROFILE HINGE 95deg OVERLAY SCREW-IN ONYX by JULIUS BLUM UK LTD
1 1

Blum 71B9550 BLUMOTION 95° Thick-Door Overlay Screw-On Hinge – Onyx Black

Blum 71B9550 BLUMOTION 95° Thick-Door Overlay Screw-On Hinge – Onyx Black

Stock Code: HIO71B9550

£3.70 GBP
Sale
View full details

PRODUCT DESCRIPTION

Blum 71B9550 CLIP top BLUMOTION 95° Overlay Hinge – Onyx Black

The Blum 71B9550 is a 95° CLIP top BLUMOTION overlay hinge designed for thick and profiled cabinet doors. Its straight hinge arm positions the closed door over the cabinet side panel, while the restricted opening angle provides controlled movement where a wider-opening hinge is not required.

This version features Blum's contemporary Onyx Black finish, making it particularly well suited to dark cabinet interiors and furniture designs where visible nickel-plated hardware would interrupt the finished appearance.

Integrated BLUMOTION technology provides smooth, quiet soft closing without a separate damper. The hinge is secured to the door using a conventional screw-on 35mm hinge cup and connects tool-free to a compatible Blum CLIP mounting plate.

Key features

  • 95° opening angle
  • Overlay cabinet-door application
  • Straight hinge arm
  • Designed for thick and profiled furniture fronts
  • Suitable for front thicknesses from approximately 16mm to 32mm, subject to application planning
  • Integrated BLUMOTION soft-close mechanism
  • BLUMOTION can be deactivated for smaller or lightweight doors
  • Screw-on 35mm hinge cup
  • Tool-free CLIP connection to the mounting plate
  • Three-dimensional door adjustment
  • Sprung, self-closing hinge action
  • Steel hinge with Onyx Black finish
  • Supplied as one hinge

Overlay-door application

An overlay hinge positions the closed cabinet door over the front edge of the cabinet side panel. This is commonly referred to as a full-overlay application, although the finished overlay dimension depends on the hinge-cup drilling distance and selected mounting-plate height.

The Blum 71B9550 should be planned according to the required overlay, door thickness, edge profile, cabinet construction and minimum clearance required throughout its 95° opening movement.

Onyx Black finish

The dark Onyx Black finish allows the hinge to coordinate with black mounting plates, cover caps and dark cabinet interiors. This creates a more discreet appearance when the cabinet door is open while retaining the established adjustment and assembly features of Blum's CLIP top hinge system.

Screw-on hinge-cup fixing

The 35mm hinge cup fits into a machined recess in the back of the door and is secured through the hinge flange using suitable screws. The screw-on description refers to the hinge-to-door connection, not the cabinet mounting plate.

A separate Blum CLIP mounting plate is required on the cabinet. Once the mounting plate is installed, the hinge clips into position without tools and can be released for convenient door removal.

Technical specifications

Blum part number 71B9550
Blum item number 08701018
EAN/GTIN 9009494201697
Application Overlay
Opening angle 95°
Hinge cup diameter 35mm
Cup drilling depth 13mm
Distance between fixing holes 45mm
Fixing-hole offset 9.5mm
Cup drilling distance 3–7mm
Side adjustment Approximately ±2mm
Depth adjustment Approximately +3/−2mm
Finish Onyx Black

Please note: A compatible Blum CLIP mounting plate and suitable hinge-cup fixing screws are required and sold separately. Select the mounting-plate height according to the required overlay and cabinet construction.

Blum advises that CLIP top BLUMOTION and standard non-BLUMOTION CLIP top hinges should not be combined on the same door.

Related products

Frequently asked questions

What is an overlay cabinet hinge?

An overlay hinge positions the closed door over the cabinet side panel. The exact amount of overlay depends on the hinge geometry, cup drilling distance and mounting-plate height.

Is the Blum 71B9550 suitable for thick doors?

Yes. It is designed for thick and profiled fronts. Blum's planning information covers door thicknesses from approximately 16mm to 32mm, subject to the door profile and required clearance.

What does screw-on mean?

It means the 35mm hinge cup is secured to the back of the door using screws. It does not describe the separately installed cabinet mounting plate.

Is the mounting plate included?

No. A compatible Blum CLIP mounting plate must be selected and ordered separately.

Can the BLUMOTION mechanism be switched off?

Yes. The integrated BLUMOTION mechanism can be deactivated when reduced closing resistance is needed for a smaller or lightweight door.

Is this the nickel-plated version?

No. Hart stock code HIO71B9550 is the Onyx Black version. The nickel-plated version is stocked separately as HI71B9550.
