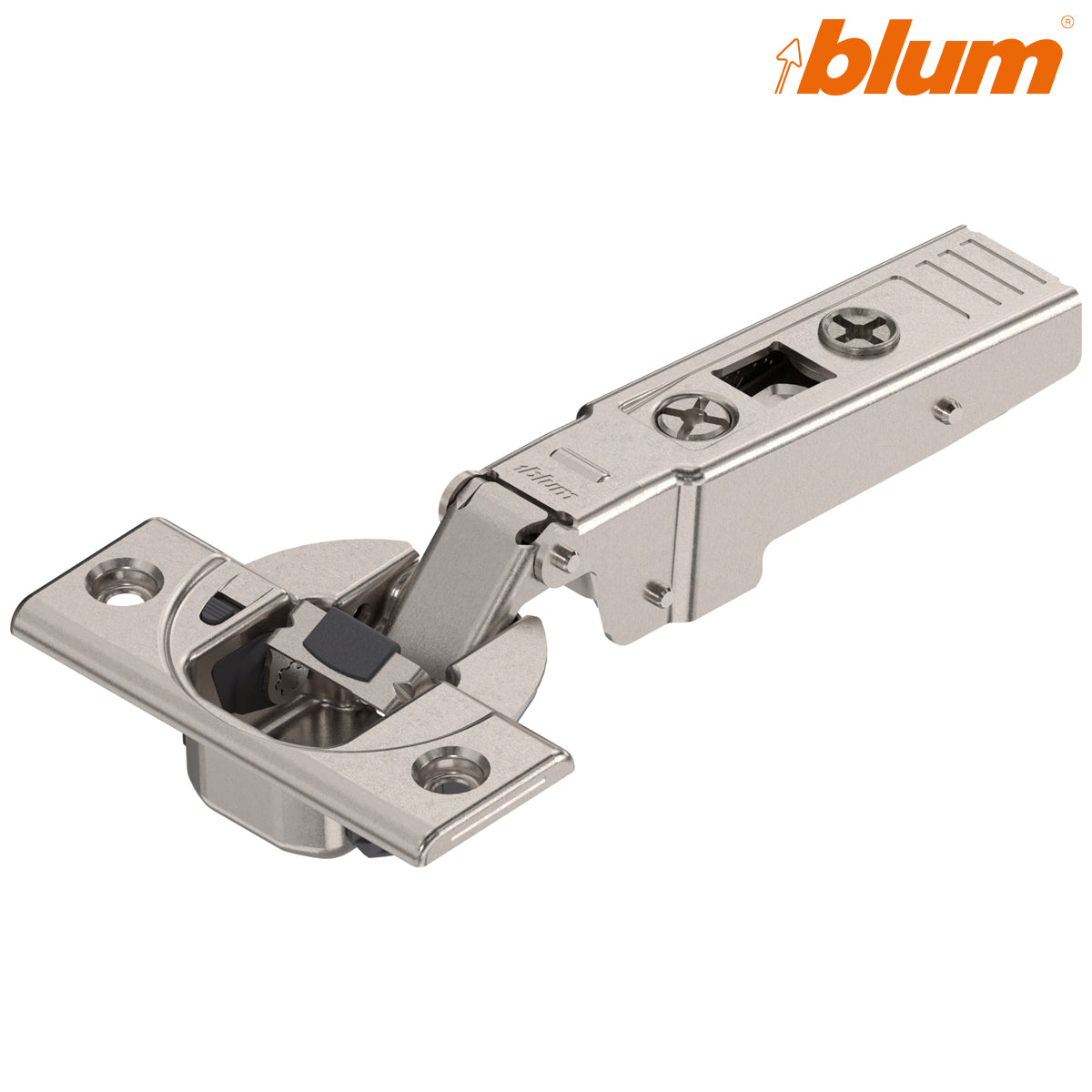

Blum 71B9550 BLUMOTION 95° Thick-Door Overlay Screw-On Hinge – Nickel

Blum 71B9550 BLUMOTION 95° Thick-Door Overlay Screw-On Hinge – Nickel

Stock Code: HI71B9550

£3.39 GBP
Sale
View full details

PRODUCT DESCRIPTION

Blum 71B9550 CLIP top BLUMOTION 95° Overlay Screw-On Hinge

The Blum 71B9550 is a nickel-plated CLIP top BLUMOTION overlay hinge designed for thick and profiled cabinet doors. Its straight hinge arm positions the closed door over the cabinet side panel, while the 95° opening angle provides controlled door movement in installations where a wider opening is unnecessary or undesirable.

Integrated BLUMOTION technology provides smooth, quiet soft closing without requiring a separate damper. This version has a conventional screw-on 35mm hinge cup for secure fixing to the back of the cabinet door.

Key features

  • 95° opening angle
  • Overlay cabinet-door application
  • Straight hinge arm
  • Designed for thick and profiled furniture fronts
  • Suitable for front thicknesses from approximately 16mm to 32mm, subject to application planning
  • Integrated BLUMOTION soft-close mechanism
  • BLUMOTION can be deactivated for small or lightweight doors
  • Screw-on 35mm hinge cup
  • Tool-free CLIP connection between the hinge and mounting plate
  • Three-dimensional door adjustment
  • Sprung, self-closing hinge action
  • Nickel-plated steel construction
  • Supplied as one hinge

Overlay-door application

An overlay hinge positions the closed cabinet door over the front edge of the cabinet side panel. It is often described as a full-overlay application, although the finished overlay dimension depends on the cup drilling distance and selected mounting-plate height.

The door thickness, edge profile, cabinet construction, hinge-cup position and required clearance throughout the 95° opening movement must all be considered during planning.

Screw-on hinge-cup fixing

The 35mm hinge cup is fitted into a machined recess in the back of the door and secured through the hinge flange using suitable screws. The screw-on description refers specifically to the hinge-to-door fixing.

A separate Blum CLIP mounting plate is still required on the cabinet. The hinge clips onto the compatible plate without tools, making the door easier to install and remove.

Technical specifications

Blum part number 71B9550
Blum item number 09349303
EAN/GTIN 9002617794144
Application Overlay
Opening angle 95°
Hinge cup diameter 35mm
Cup drilling depth 13mm
Distance between fixing holes 45mm
Fixing-hole offset 9.5mm
Cup drilling distance 3–7mm
Side adjustment Approximately ±2mm
Depth adjustment Approximately +3/−2mm
Finish Nickel plated

Please note: A compatible Blum CLIP mounting plate and suitable hinge-cup fixing screws are required and sold separately. The mounting-plate height must be selected according to the required door overlay and cabinet construction.

Blum advises that CLIP top BLUMOTION and standard non-BLUMOTION CLIP top hinges should not be combined on the same door.

Related products

Frequently asked questions

What is an overlay cabinet hinge?

An overlay hinge positions the closed door over the cabinet side panel. The exact overlay depends on the hinge geometry, cup drilling distance and mounting-plate height.

Is the Blum 71B9550 suitable for thick doors?

Yes. It is designed specifically for thick and profiled cabinet fronts. Blum's planning information covers front thicknesses from approximately 16mm to 32mm, subject to the door profile and required clearance.

Is this hinge only for aluminium-framed doors?

No. The 71B9550 is a profile and thick-door hinge and is not restricted to aluminium profile-frame doors.

What does screw-on mean?

It means the 35mm hinge cup is secured to the back of the door using screws. It does not refer to the separately fitted cabinet mounting plate.

Is the mounting plate included?

No. A compatible Blum CLIP mounting plate must be selected and ordered separately.

Can the BLUMOTION mechanism be switched off?

Yes. The integrated BLUMOTION mechanism can be deactivated when reduced closing resistance is required for a smaller or lightweight door.
