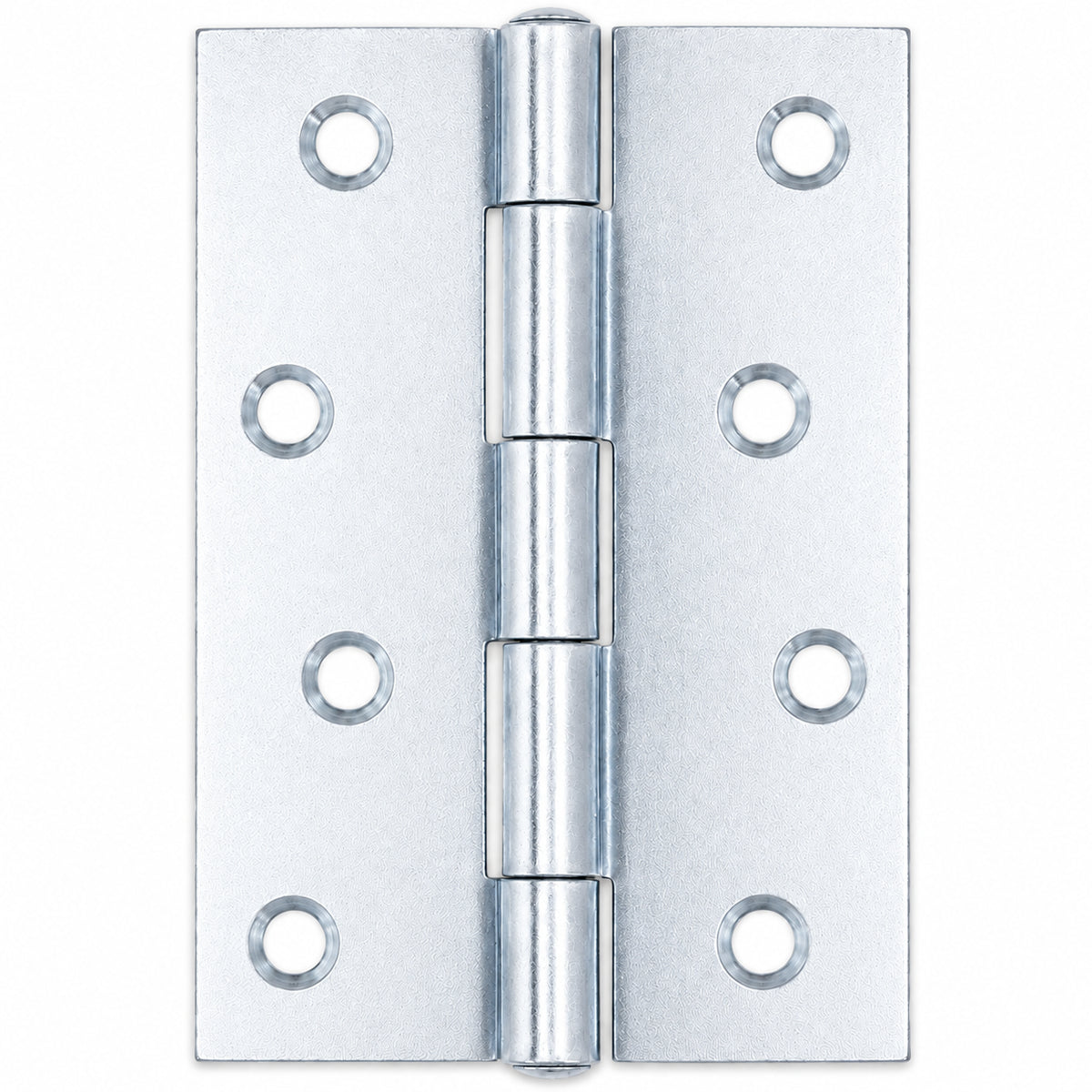

100 x 65mm Bright Zinc Plated Steel Butt Hinges

These 100 x 65mm medium-duty steel butt hinges provide a practical solution for internal timber doors, cupboards, furniture and general joinery. Their traditional rigid construction incorporates a fixed pin and eight countersunk fixing holes for a neat and secure installation.

The bright zinc plated finish gives the steel a clean silver appearance while providing greater everyday corrosion resistance than untreated self-colour steel. These hinges are intended primarily for dry internal applications.

Important ordering information: the displayed price is for one pair, but these hinges are supplied only in packs of 5 pairs. Enter quantities in multiples of 5: 5, 10, 15, 20 and so on. A quantity of 5 supplies 5 pairs, equal to 10 individual hinges.

Key Features

• Traditional medium-duty steel butt hinge
• Size: 100 x 65mm
• Approximate length: 4 inches
• Bright zinc plated silver finish
• Fixed, non-removable pin
• Four countersunk fixing holes on each leaf
• Eight countersunk fixing holes in total
• Suitable for internal timber doors, cupboards, furniture and general joinery
• Priced per pair
• Sold only in packs and order multiples of 5 pairs

Product Specifications

Typical Applications

• Internal timber doors
• Storage and utility cupboards
• Cabinet and furniture doors
• Workshop joinery
• General internal woodworking projects

Installation Advice

Position each hinge leaf flush against the door and frame, carefully mark the fixing holes and use screws suitable for the timber and application. Align the hinge knuckles before fully tightening the screws. Select the number and size of hinges according to the door’s dimensions, construction and weight.

These hinges must not be represented as suitable for heavy entrance doors or certified fire doors unless separate verified test information is available.

Questions & Answers

How many hinges are supplied?

This product is supplied only in packs of 5 pairs. Five pairs contain 10 individual hinges.

Is the displayed price for one pair or the complete pack?

The displayed price is for one pair, but the minimum order is 5 pairs. Enter quantities in multiples of 5.

What does bright zinc plated mean?

Bright zinc plating applies a clean silver-coloured protective coating to the steel. It provides greater everyday corrosion resistance than untreated self-colour steel.

Are these suitable for internal timber doors?

Yes. Their 100 x 65mm size is suitable for internal timber doors, cupboards, furniture and general joinery. Consider the door’s dimensions, construction and weight when selecting the number of hinges.

How many fixing holes does each hinge have?

Each hinge has eight countersunk fixing holes in total, with four holes positioned on each leaf.

Can the hinge pin be removed?

No. This product has a fixed pin that is not designed for removal during normal use.

Can these hinges be used outside?

They are primarily intended for dry internal applications. Select an exterior-rated hinge for exposed or consistently damp locations.

Are fixing screws included?

Fixings are not stated as included. Choose screws suitable for the timber thickness and intended application.

Are these suitable for fire doors?

No fire-door certification is declared for this product. Do not use them where certified fire-door hinges are required.

Compare the matching 100 x 65mm self-colour steel butt hinges and 100 x 65mm electro brass steel butt hinges. Browse the complete butt hinge range or contact Hart Wholesale for selection advice.
