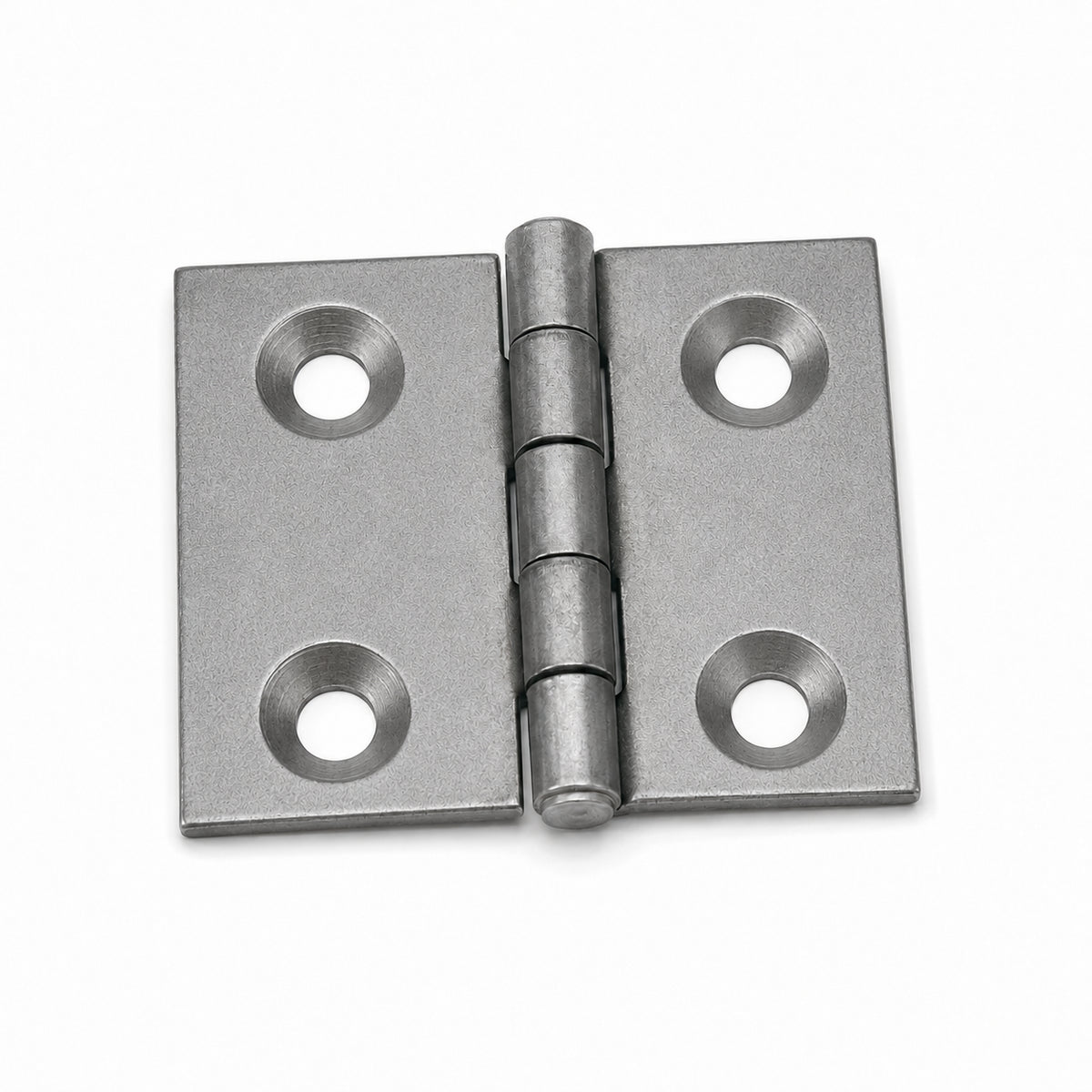

25mm Self-Colour Steel Butt Hinges

These compact 25mm light-duty steel butt hinges are designed for very small cupboard doors, lightweight cabinet work, boxes, craft projects and other miniature joinery applications. Their traditional rigid construction features a cranked knuckle and a fixed pin that cannot be removed during normal use.

The self-colour steel finish has no decorative plating. This makes the hinge suitable for projects where it will be painted or finished to match the surrounding timber. Clean and prepare the steel before applying paint or another suitable protective coating.

Important ordering information: this product is priced as an individual hinge but is sold only in packs of 10 pairs. The minimum order is therefore 20 individual hinges, equal to 10 complete pairs. Order quantities must be 20, 40, 60 and so on.

Key Features

• Compact 25mm light-duty butt hinge
• Rigid steel construction
• Fixed, non-removable pin
• Traditional cranked knuckle
• Self-colour steel finish
• Can be painted after suitable surface preparation
• Designed for very lightweight internal joinery
• Priced per individual hinge
• Supplied only in packs of 10 pairs
• Minimum quantity: 20 individual hinges

Product Specifications

Typical Applications

• Small wooden boxes and cases
• Miniature cupboard doors
• Very lightweight cabinet work
• Craft and model-making projects
• Small furniture components
• General lightweight internal joinery

Installation Advice

Position each hinge leaf flush against the timber and mark the fixing holes accurately. Select appropriately sized screws for the timber thickness and intended application. Check that the hinge knuckles are aligned before tightening the fixings. These compact hinges are intended for very lightweight applications and must not be described as suitable for heavy doors, entrance doors or certified fire doors.

Questions & Answers

How many hinges are in the minimum order?

The minimum order contains 20 individual hinges, equal to 10 complete pairs. The product is priced per individual hinge, but quantities must be ordered in multiples of 20.

What applications are these 25mm hinges suitable for?

They are intended for very small and lightweight applications such as wooden boxes, miniature cupboards, craft projects and light cabinet work.

What does self colour mean?

Self colour means the steel does not have a decorative plated finish. It can be painted or otherwise protected after appropriate cleaning and surface preparation.

Can these hinges be used outside?

Untreated self-colour steel is vulnerable to corrosion in damp or exposed locations. A plated or stainless steel hinge is normally more suitable for external use.

Can the hinge pin be removed?

No. This is a rigid hinge with a fixed pin that is not intended to be removed during normal use.

Are fixing screws included?

Fixings are not stated as included. Select screws suitable for the timber thickness and the intended application.

Are these suitable for fire doors?

No fire-door certification is declared for this product. Do not use these hinges where certified fire-door hardware is required.

Explore our special hinges and hinge ranges. For a plated alternative, see the 25mm zinc-plated steel butt hinge. For product-selection assistance, contact Hart Wholesale.
