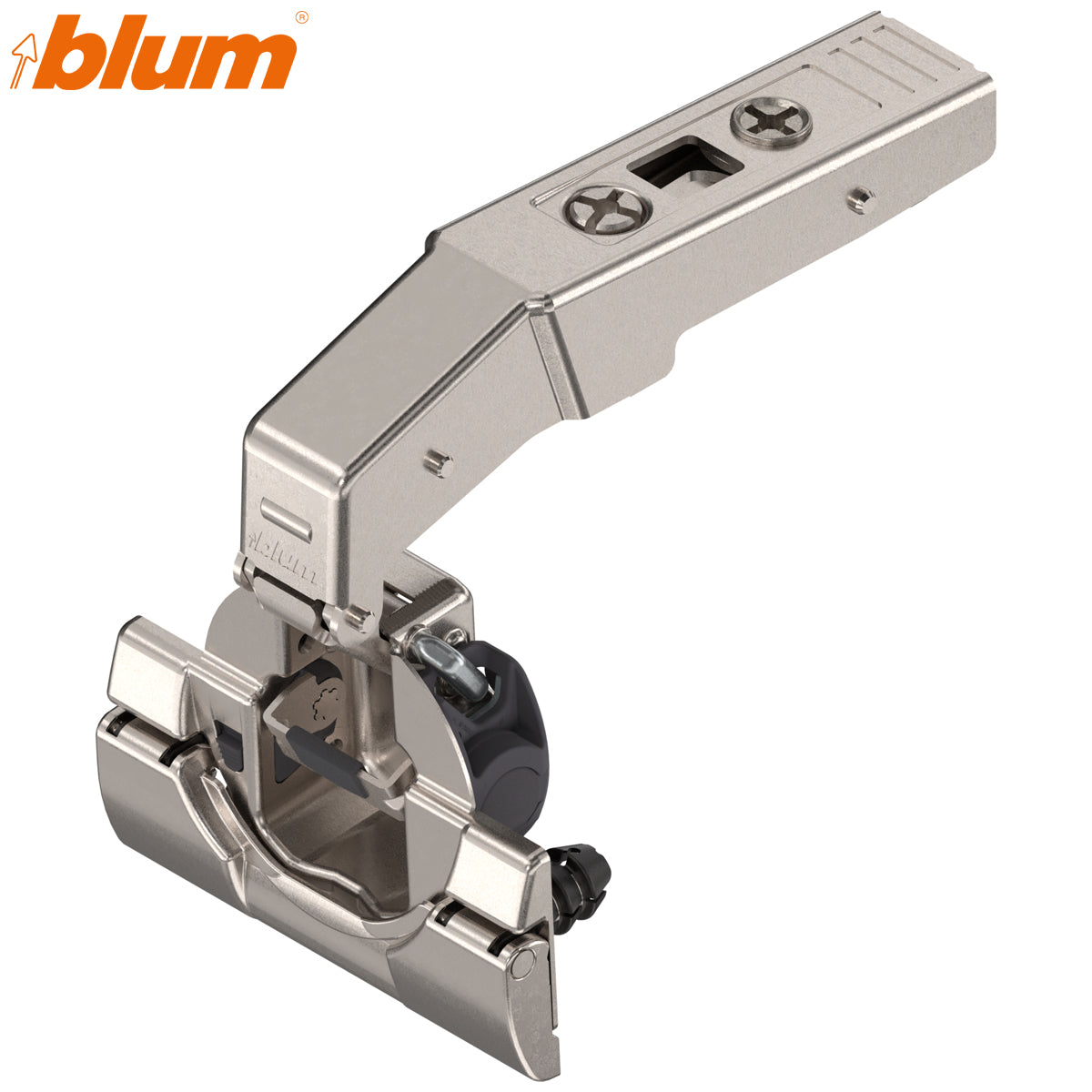

  • Blum 79B9590 95° inset blind-corner INSERTA BLUMOTION hinge in nickel
1 1

Blum 79B9590 CLIP top BLUMOTION 95° Inset Blind-Corner INSERTA Hinge – Nickel

Blum 79B9590 CLIP top BLUMOTION 95° Inset Blind-Corner INSERTA Hinge – Nickel

Stock Code: HI79B9590

£4.76 GBP
Sale
View full details

PRODUCT DESCRIPTION

Blum 79B9590 CLIP top BLUMOTION 95° Blind-Corner Hinge

The Blum 79B9590 is a specialist 95° inset blind-corner hinge designed for mounting a cabinet door to an inset muntin or fixed blind-corner panel. It combines a nickel-plated finish with integrated soft closing and Blum's tool-free INSERTA hinge-cup fixing.

Integrated BLUMOTION slows the door during closing for smooth, controlled movement. The BLUMOTION function can be switched off at an individual hinge when required, helping to achieve the correct closing action on smaller or lighter doors.

Key features

  • Specialist hinge for inset blind-corner cabinet applications
  • 95° opening angle
  • Integrated, switchable BLUMOTION soft close
  • Sprung closing mechanism
  • Tool-free INSERTA hinge-cup installation
  • 35mm steel hinge cup
  • Nickel-plated hinge cup and arm
  • CLIP mechanism for tool-free door attachment and removal
  • Three-dimensional adjustment with a suitable mounting plate

Technical specifications

Manufacturer Blum
Manufacturer part number 79B9590
Blum item number 09350743
Hart SKU HI79B9590
Application Inset blind-corner door
Opening angle 95°
Closing mechanism Sprung with integrated, switchable BLUMOTION
Hinge-cup fixing Tool-free INSERTA
Hinge-cup diameter 35mm
Hinge-cup drilling depth 13mm
Fixing-hole diameter 8mm
Fixing-hole spacing 45mm
Fixing-hole offset 9.5mm
Permitted cup drilling distance 3–7mm
Side adjustment ±2.5mm
Depth adjustment ±1mm
Height adjustment ±3mm through the mounting plate
Specified gap 3mm
Finish Nickel plated
GTIN/EAN 9002617794427
Pack contents 1 hinge

Blind-corner installation requirements

This hinge must be combined with a 3mm-spaced standard Blum CLIP mounting plate. For the blind-corner application, Blum specifies that the standard mounting-plate fixing positions are moved 15.5mm towards the edge of the muntin. This produces a mounting setback of 21.5mm.

The required reveal is calculated using F = 8mm minus the hinge-cup drilling distance (TB). Door thickness, cup drilling distance and mounting position must therefore be planned together. Blum provides planning values for fronts from 16–32mm thick, with trial fitting recommended for some thicker-front combinations.

Please note: The mounting plate is not supplied with the hinge and must be ordered separately. Check the complete cabinet construction against Blum's blind-corner planning information before production drilling.

Related hinges

Frequently asked questions

What is the Blum 79B9590 used for?

It is used to hinge an inset cabinet door from a muntin or fixed panel within a blind-corner cabinet. It is not a standard inset hinge for a conventional cabinet side.

Does the 79B9590 include soft closing?

Yes. BLUMOTION soft close is built into the hinge and can be switched off on an individual hinge when necessary.

What does INSERTA mean?

INSERTA is Blum's tool-free hinge-cup fixing system. The hinge cup is secured in a prepared 35mm cup hole with two 8mm fixing holes, without separate fixing screws.

Which mounting plate is required?

The blind-corner application requires a compatible 3mm-spaced Blum CLIP mounting plate. The mounting plate is sold separately.

How deep should the hinge-cup hole be?

The 35mm hinge-cup hole requires a drilling depth of 13mm.
