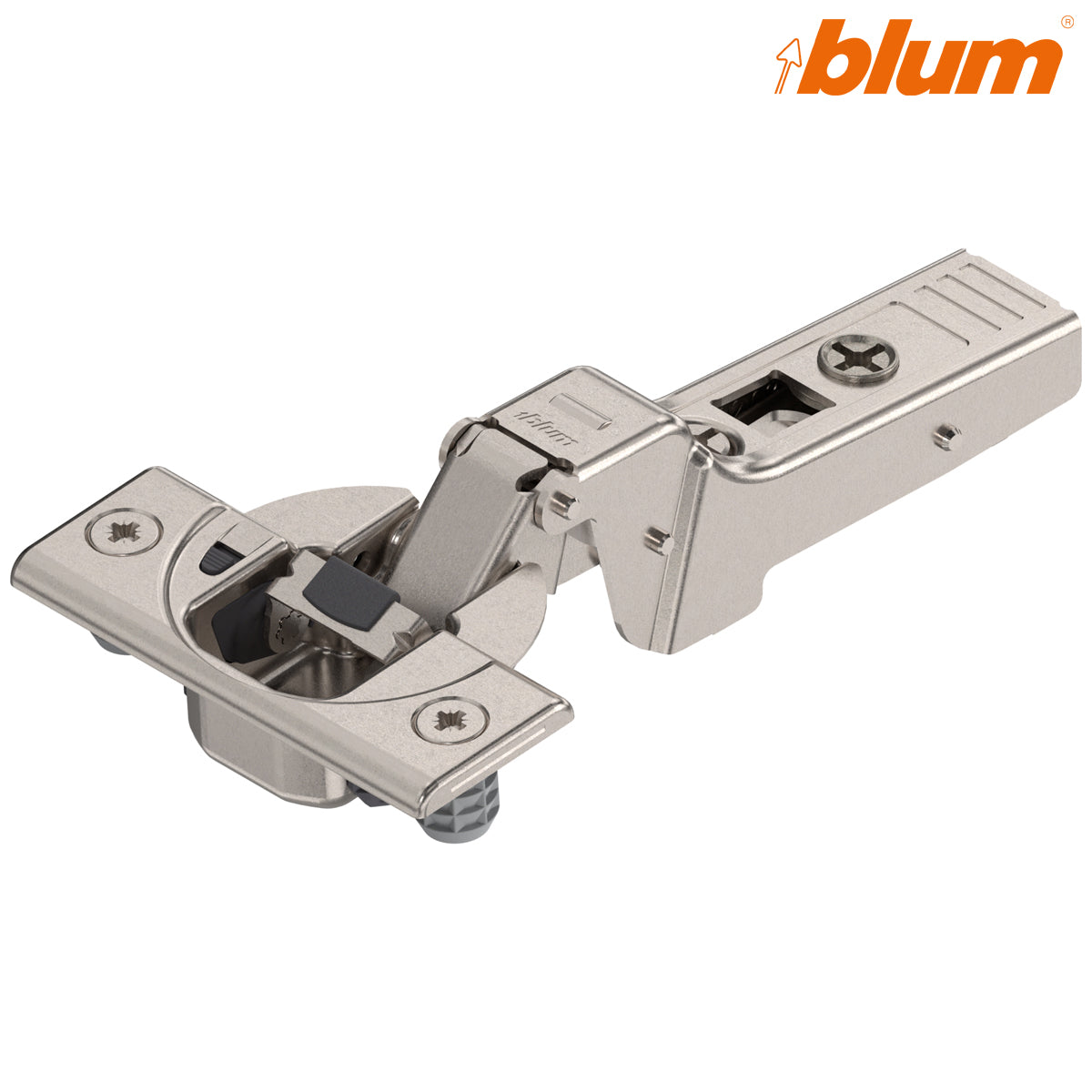

Name: Blum 71B9680 BLUMOTION 95° Thick-Door Half Overlay Knock-In Hinge – Nickel
Brand: JULIUS BLUM UK LTD
SKU: HI71T9680
Price: 3.66 GBP
Availability: InStock

PRODUCT DESCRIPTION

Blum 71B9680 CLIP top BLUMOTION 95° Half Overlay Knock-In Hinge

The Blum 71B9680 is a nickel-plated CLIP top BLUMOTION hinge designed for thick and profiled cabinet doors in a dual, commonly called half-overlay, application. Its cranked hinge arm allows two doors to be fitted to opposite sides of the same central cabinet partition.

The hinge opens to 95° and incorporates Blum's BLUMOTION soft-close mechanism for smooth, controlled door closing. Its knock-in 35mm hinge cup uses pre-fitted dowels for fast and repeatable workshop assembly into a correctly prepared drilling pattern.

Key features

95° opening angle
Dual or half-overlay cabinet-door application
Designed for thick and profiled furniture fronts
Suitable for front thicknesses from approximately 16mm to 32mm, subject to application planning
Integrated BLUMOTION soft-close mechanism
BLUMOTION can be deactivated for smaller or lightweight doors
Knock-in 35mm hinge cup with pre-fitted fixing dowels
Tool-free CLIP connection between the hinge and mounting plate
Three-dimensional door adjustment
Sprung, self-closing hinge action
Nickel-plated steel construction
Supplied as one hinge

Dual or half-overlay application

A dual or half-overlay hinge is generally used where two cabinet doors share a central partition. Each door covers part of the cabinet panel edge when closed.

The correct mounting-plate height and drilling position must be selected according to the required overlay, door thickness, edge profile and clearance throughout the 95° opening movement.

Knock-in hinge-cup fixing

The knock-in cup has pre-fitted dowels that are pressed into two correctly drilled 8mm holes beside the 35mm hinge-cup recess. This provides a consistent fixing arrangement without separate cup-fixing screws.

Suitable insertion equipment or an appropriate workshop assembly method is required. Knock-in fixing should not be confused with Blum's lever-operated, tool-free INSERTA system.

The knock-in specification applies to the hinge-to-door connection. A separate Blum CLIP mounting plate is required on the cabinet.

Technical specifications

Hart stock code	HI71T9680
Blum part number	71B9680
Blum item number	09350053
EAN/GTIN	9002617794298
Application	Dual / half overlay
Opening angle	95°
Hinge cup diameter	35mm
Cup drilling depth	13mm
Fixing-hole diameter	8mm
Distance between fixing holes	45mm
Fixing-hole offset	9.5mm
Cup drilling distance	3–7mm
Side adjustment	Approximately ±2mm
Depth adjustment	Approximately +3/−2mm
Finish	Nickel plated

Please note: A compatible Blum CLIP mounting plate is required and sold separately. Suitable drilling and insertion equipment is required for the knock-in cup fixing.

Blum advises that CLIP top BLUMOTION and standard non-BLUMOTION CLIP top hinges should not be combined on the same door.

Frequently asked questions

Does this hinge include BLUMOTION soft close?

Yes. The correct Blum part number is 71B9680, which has integrated and deactivatable BLUMOTION soft closing.

Why is Hart's stock code HI71T9680?

HI71T9680 is Hart Wholesale's internal stock code. The confirmed Blum manufacturer part number for the product is 71B9680.

What is a half-overlay hinge?

It is normally used where two doors share a central cabinet panel. Each door covers only part of the panel edge when closed.

Is knock-in the same as INSERTA?

No. A knock-in hinge uses pre-fitted dowels and suitable insertion equipment. INSERTA has a lever-operated, tool-free cup-fixing mechanism.

Is the mounting plate included?

No. A compatible Blum CLIP mounting plate must be selected and ordered separately.

Is this suitable for thick doors?

Yes. It is designed for thick and profiled fronts, with Blum's planning information covering thicknesses from approximately 16mm to 32mm subject to application geometry.

TECHNICAL DETAILS

Application: Dual
Finish: Nickel Plated
Colour: Nickel
Material: Steel
