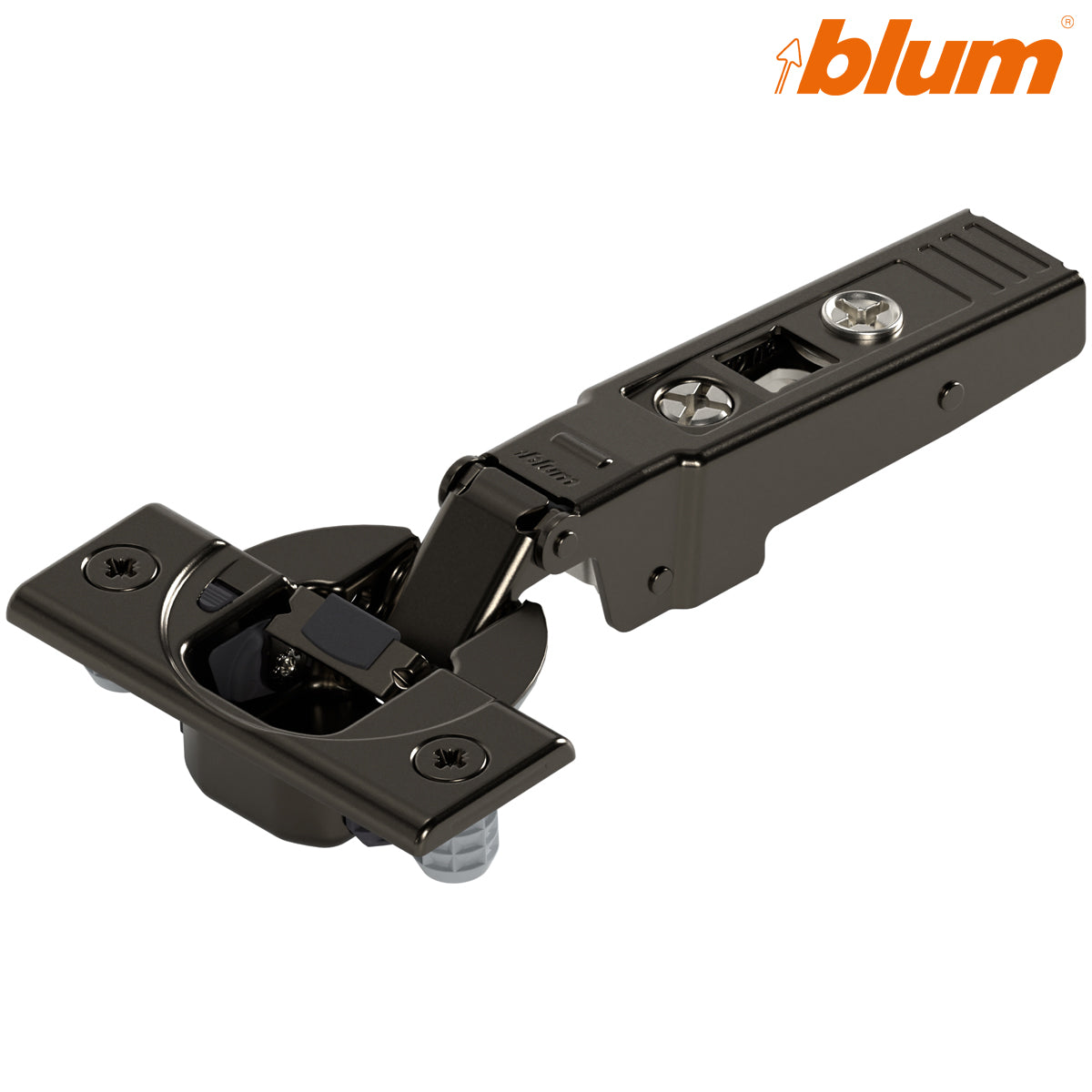

  • Blum 71B9580 CLIP top BLUMOTION 95 degree thick door overlay knock-in hinge in Onyx Black
1 1

Blum 71B9580 BLUMOTION 95° Thick-Door Overlay Knock-In Hinge – Onyx Black

Blum 71B9580 BLUMOTION 95° Thick-Door Overlay Knock-In Hinge – Onyx Black

Stock Code: HIO71B9580

£3.80 GBP
Sale
View full details

PRODUCT DESCRIPTION

Blum 71B9580 CLIP top BLUMOTION 95° Overlay Knock-In Hinge – Onyx Black

The Blum 71B9580 is a 95° CLIP top BLUMOTION overlay hinge designed for thick and profiled cabinet doors. Its straight hinge arm positions the closed door over the cabinet side panel, while the controlled opening angle makes it suitable for installations where a wider-opening hinge is unnecessary or could cause interference.

This version combines integrated BLUMOTION soft closing with a knock-in hinge cup and pre-fitted fixing dowels. The knock-in format is particularly suitable for repeat workshop and production assembly using correctly prepared drilling and appropriate insertion equipment.

The complete hinge has Blum's contemporary Onyx Black finish, allowing it to coordinate with dark cabinetry, black mounting plates and matching cover caps.

Key features

  • 95° opening angle
  • Overlay cabinet-door application
  • Straight hinge arm
  • Designed for thick and profiled furniture fronts
  • Suitable for front thicknesses from approximately 16mm to 32mm, subject to application planning
  • Integrated BLUMOTION soft-close mechanism
  • BLUMOTION can be deactivated for smaller or lightweight doors
  • Knock-in 35mm hinge cup with pre-fitted dowels
  • Tool-free CLIP connection between the hinge and mounting plate
  • Three-dimensional door adjustment
  • Sprung, self-closing hinge action
  • Steel construction with Onyx Black finish
  • Supplied as one hinge

Overlay-door application

An overlay hinge positions the closed cabinet door over the front edge of the cabinet side panel. It is commonly searched for as a full-overlay hinge, although the finished overlay dimension depends on the cup drilling distance and selected mounting-plate height.

The door thickness, edge profile, cup position, cabinet construction and required clearance throughout the 95° opening movement must all be considered during planning.

Knock-in hinge-cup fixing

The knock-in hinge cup uses pre-fitted dowels that are pressed into two correctly drilled 8mm fixing holes beside the 35mm cup recess. This creates a repeatable fixing arrangement without separate cup-fixing screws.

Knock-in installation should be completed using suitable Blum insertion equipment or an appropriate workshop assembly method. It should not be confused with Blum's lever-operated, tool-free INSERTA fixing system.

The knock-in specification applies to the hinge-to-door connection. A separate Blum CLIP mounting plate is still required on the cabinet.

Technical specifications

Blum part number 71B9580
Blum item number 04648348
EAN/GTIN 9009494202304
Application Overlay
Opening angle 95°
Hinge cup diameter 35mm
Cup drilling depth 13mm
Fixing-hole diameter 8mm
Distance between fixing holes 45mm
Fixing-hole offset 9.5mm
Cup drilling distance 3–7mm
Side adjustment Approximately ±2mm
Depth adjustment Approximately +3/−2mm
Finish Onyx Black

Please note: A compatible Blum CLIP mounting plate is required and sold separately. Suitable drilling and insertion equipment is required for the knock-in hinge-cup fixing.

Blum advises that CLIP top BLUMOTION and standard non-BLUMOTION CLIP top hinges should not be combined on the same door.

Related products

Frequently asked questions

What is a knock-in Blum hinge?

A knock-in hinge has pre-fitted fixing dowels that are pressed into correctly prepared holes in the door. This removes the need for separate hinge-cup fixing screws.

Is knock-in the same as INSERTA?

No. INSERTA uses a lever-operated, tool-free locking mechanism. A knock-in hinge uses pre-fitted dowels and normally requires suitable insertion equipment.

Is the Blum 71B9580 suitable for thick doors?

Yes. It is designed for thick and profiled fronts. Blum's planning information covers door thicknesses from approximately 16mm to 32mm, subject to the door profile and opening clearance.

Is the mounting plate included?

No. A compatible Blum CLIP mounting plate must be selected and ordered separately.

Can the BLUMOTION mechanism be deactivated?

Yes. The integrated BLUMOTION mechanism can be switched off when reduced closing resistance is required for a smaller or lightweight door.

Is this the nickel-plated version?

No. Hart stock code HIO71B9580 is finished in Onyx Black.

TECHNICAL DETAILS

  • Application: Overlay
  • Diameter: 35mm
  • Finish: Onyx Black
  • Colour: Onyx Black
  • Material: Steel
