PRODUCT DESCRIPTION
1.8kg Magnetic Pressure Catch for Single Glass Doors – Black
A black magnetic pressure catch designed for single glass doors. The plastic housing is screw fixed and includes slots for positioning during installation.
Technical specifications
| Part number | 24567310 |
|---|---|
| Application | Single glass doors |
| Approximate magnetic pull | 1.8 kg |
| Material | Plastic |
| Colour | Black |
| Installation | Screw fixing |
| Adjustment | Slots |
| Body dimensions | 41 × 31 × 16 mm |
| Fixing centres | 32 mm |
| Counterplates | Order the appropriate glass-door counterplates separately |
Fitting and use
Screw the catch to the cabinet and use the slots to position it. Fit suitable counterplates to the glass doors and check the pressure-release action before final tightening. Counterplates are separate components and must be selected for the glass-door installation.

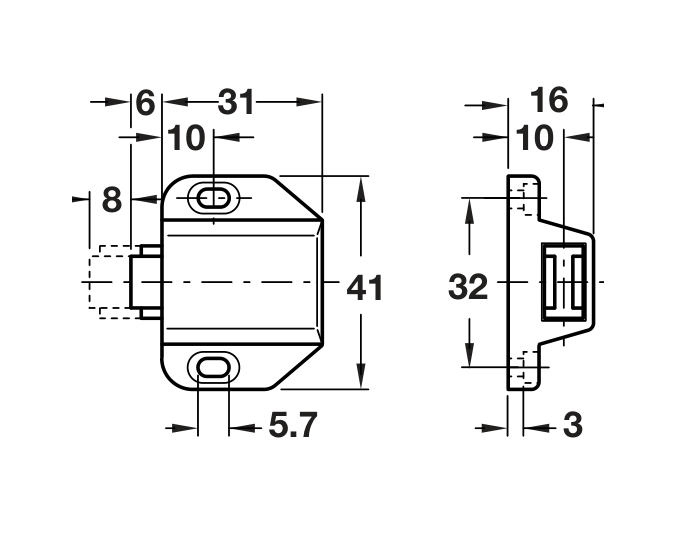

Dimension drawing
Dimensions are in millimetres. Check the drawing and actual fitting before machining.
Frequently asked questions
Are the glass-door counterplates included?
The supplier catalogue specifies that counterplates must be ordered separately.
Is the kg figure a door weight rating?
No. It is the approximate magnetic pull, not the weight of a door that the fitting can support. Contact, alignment and the gap between the parts affect retention.
Related products
TECHNICAL DETAILS
- Application: Security
- Size: 41 × 31 × 16 mm; single glass doors
- Width: 31mm
- Height: 16mm
- Length: 41mm
- Finish: Black
- Capacity: 2
- Colour: Black
- Hole spacing: 32
- Material: Plastic
