PRODUCT DESCRIPTION
1.4kg Magnetic Push-to-Open Pressure Catch – Brown
A brown magnetic pressure catch for handleless cabinet doors. An extra-long throw releases the door when pressed, while the magnetic catch retains it when closed.
Technical specifications
| Part number | 24561330 |
|---|---|
| Approximate magnetic pull | 1.4 kg |
| Catch housing | ABS plastic |
| Counterplate | Yellow galvanised steel |
| Fixing | Screw fixing; fixing screws included |
| Catch dimensions shown | 45 × 36 × 15 mm |
| Counterplate dimensions | 23 × 12 × 1.4 mm |
| Overlay door operating gap | 3 mm between the door and cabinet frame |
| Operation | Press door to release; light pressure closes it |
| Colour | Brown |
Fitting and use
Screw the catch to the cabinet and align the counterplate on the door. For an overlay door, allow the specified 3 mm operating gap. Check the drawing for the plunger and screw positions, then test the push action before final tightening.

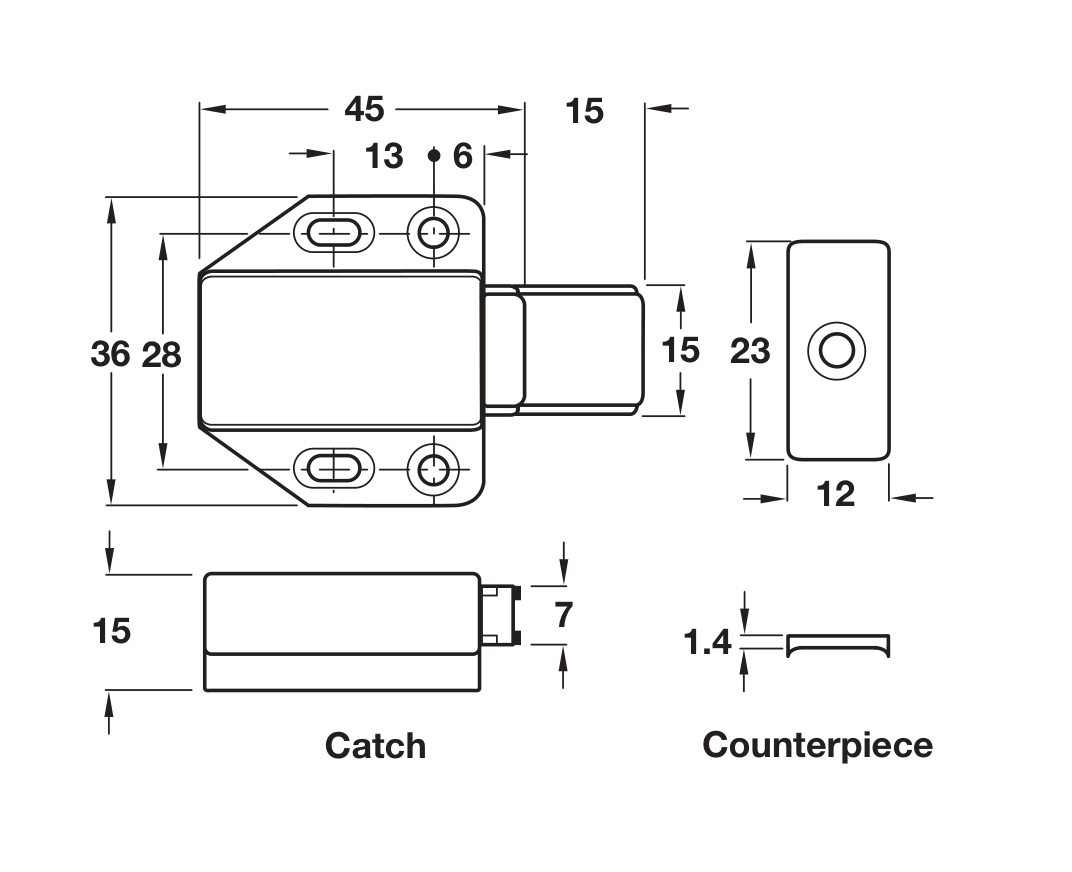

Dimension drawing
Dimensions are in millimetres. Check the drawing and actual fitting before machining.
Frequently asked questions
How is the counterplate fitted?
The steel counterplate is screw fixed to the door. This part number identifies a complete magnetic pressure catch.
Is the kg figure a door weight rating?
No. It is the approximate magnetic pull, not the weight of a door that the fitting can support. Contact, alignment and the gap between the parts affect retention.
Related products
TECHNICAL DETAILS
- Application: Security
- Size: Catch 45 × 36 × 15 mm; 3 mm overlay operating gap
- Width: 36mm
- Height: 15mm
- Length: 45mm
- Finish: Brown
- Colour: Brown
- Material: ABS plastic catch; galvanised steel counterplate
