PRODUCT DESCRIPTION
1.8kg Mortice Magnetic Cabinet Catch – Brown
A compact brown magnetic catch for a recessed installation in a cabinet face edge or shelf. The glued catch housing and screw-fixed steel counterplate provide a concealed magnetic closure for butt-closing doors.
Technical specifications
| Part number | 24600100 |
|---|---|
| Approximate magnetic pull | 1.8 kg |
| Catch housing | Plastic; fixed |
| Counterplate | Chromed steel; fixed, screw fixing |
| Catch installation | Glued into a Ø9 mm bore |
| Catch insertion length | 9 mm |
| Catch face diameter | 10.5 mm |
| Counterplate size | Ø11 × 2 mm |
| Colour | Brown |
Fitting and use
Prepare the Ø9 mm recess and bond the housing with an adhesive suitable for the substrate. Position the screw-fixed counterplate so that it meets the magnetic face squarely. Check the closed-door alignment before final tightening.

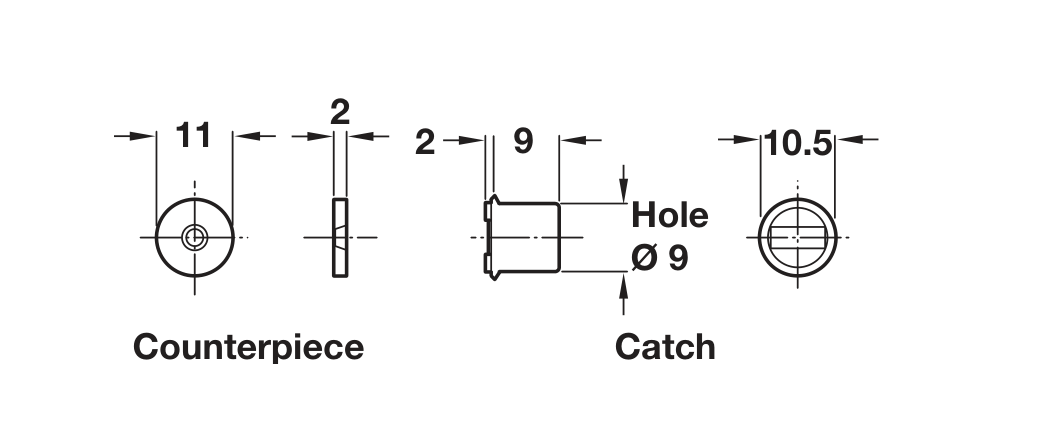

Dimension drawing
Dimensions are in millimetres. Check the drawing and actual fitting before machining.
Frequently asked questions
How is the catch fitted?
The catch is glued into the recess; the counterplate is secured separately with a screw.
Is the kg figure a door weight rating?
No. It is the approximate magnetic pull, not the weight of a door that the fitting can support. Contact, alignment and the gap between the parts affect retention.
Related products
TECHNICAL DETAILS
- Application: Security
- Size: Ø9 mm bore; 9 mm insertion length; Ø10.5 mm face
- Length: 9mm
- Diameter: 10.5mm
- Finish: Brown
- Capacity: 2
- Colour: Brown
- Material: Plastic catch; chromed steel counterplate
