PRODUCT DESCRIPTION
1.4kg Mortice Magnetic Catch – White
This white mortice magnetic catch combines a press-fit plastic housing with a movable steel counterplate that knocks into the door. It provides a compact recessed magnetic closure with an approximate 1.4 kg pull.
Technical specifications
| Part number | 24619710 |
|---|---|
| Approximate magnetic pull | 1.4 kg |
| Catch housing | Plastic; fixed, press fit |
| Counterplate | Steel; movable, knock-in fixing |
| Drill hole diameter | 12 mm |
| Housing face diameter | 14.5 mm |
| Housing length shown | 14.5 mm |
| Insertion length shown | 13 mm |
| Counterplate diameter | 15 mm |
| Counterplate pin length shown | 15 mm |
Fitting and use
Press fit the catch into the Ø12 mm recess. Position and knock in the steel counterplate so that it can meet the magnetic face. Check the pin and housing clearances against the drawing before installation.

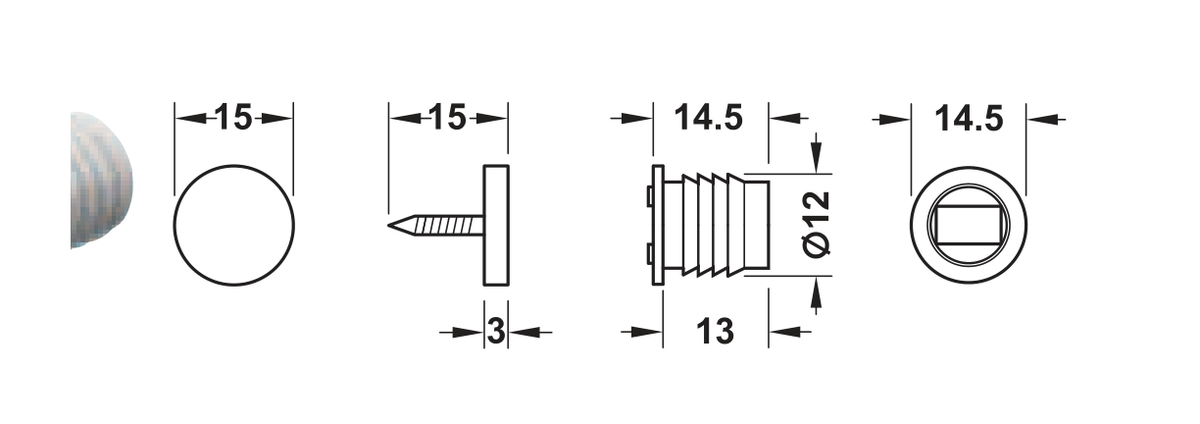

Dimension drawing
Dimensions are in millimetres. Check the drawing and actual fitting before machining.
Frequently asked questions
Does the counterplate screw on?
This version has a knock-in counterplate rather than a screw-fixed plate.
Is the kg figure a door weight rating?
No. It is the approximate magnetic pull, not the weight of a door that the fitting can support. Contact, alignment and the gap between the parts affect retention.
Related products
TECHNICAL DETAILS
- Application: Security
- Size: Ø12 mm bore; Ø14.5 mm face; 14.5 mm housing length
- Length: 14.5mm
- Diameter: 14.5mm
- Finish: White
- Capacity: 1
- Colour: White
- Material: Plastic catch; steel counterplate
