Blum D35 x 30 Fittings Drill Bit M01.ZB35.33 is a specialist 35 mm boring bit for preparing fitting holes in cabinet and furniture components when used with compatible drilling equipment.

The 35 mm cutting diameter is commonly required for concealed-hinge cup and other furniture-fitting applications. This is an individual replacement bit, so buyers should match the full Blum reference, size designation, rotation direction and machine connection before ordering.

Key features

• Genuine Blum fittings drill bit
• Listed Blum reference: M01.ZB35.33
• Hart stock code: JIG1010
• Nominal cutting diameter: 35 mm
• Product size designation: D35 x 30
• Specialist furniture-fitting boring geometry
• Supplied as one replacement drill bit

What is this bit used for?

This bit is intended to produce a 35 mm fitting bore in suitable cabinet-board or furniture components. A common 35 mm application is the main cup hole used by many concealed hinges. The fitting instructions determine drilling depth, pattern and edge distance; these must not be inferred from the D35 x 30 designation.

Use it only in compatible machinery after checking the spindle connection and required rotation. Do not present it as a universal handheld-drill bit.

Check compatibility before ordering

Blum bits vary by diameter, length, connection and rotation. Similar-looking parts may not interchange. Compare:

• Complete reference M01.ZB35.33
• 35 mm cutting diameter and D35 x 30 designation
• Right-hand or left-hand rotation
• Shank shape, diameter and connection length
• Machine or drilling-head model
• Whether a centring point is required

If any detail differs, do not assume the bit fits. Contact Hart Wholesale with the machine model and reference on the old bit for identification help.

How to use it

1. Confirm reference, rotation and connection before installation.
2. Isolate the machine and fit the bit using its instructions.
3. Set drilling depth from the fitting plan.
4. Support the workpiece and test on matching scrap material.
5. Check diameter, depth, edge distance and position before drilling finished parts.

Wear suitable eye and hearing protection, use dust extraction where provided and replace damaged or blunt tooling. Follow all machine, tooling and fitting instructions.

Technical specifications

• Brand: Blum
• Type: Fittings drill bit
• Blum reference: M01.ZB35.33
• Hart SKU: JIG1010
• Nominal diameter: 35 mm
• Size designation: D35 x 30

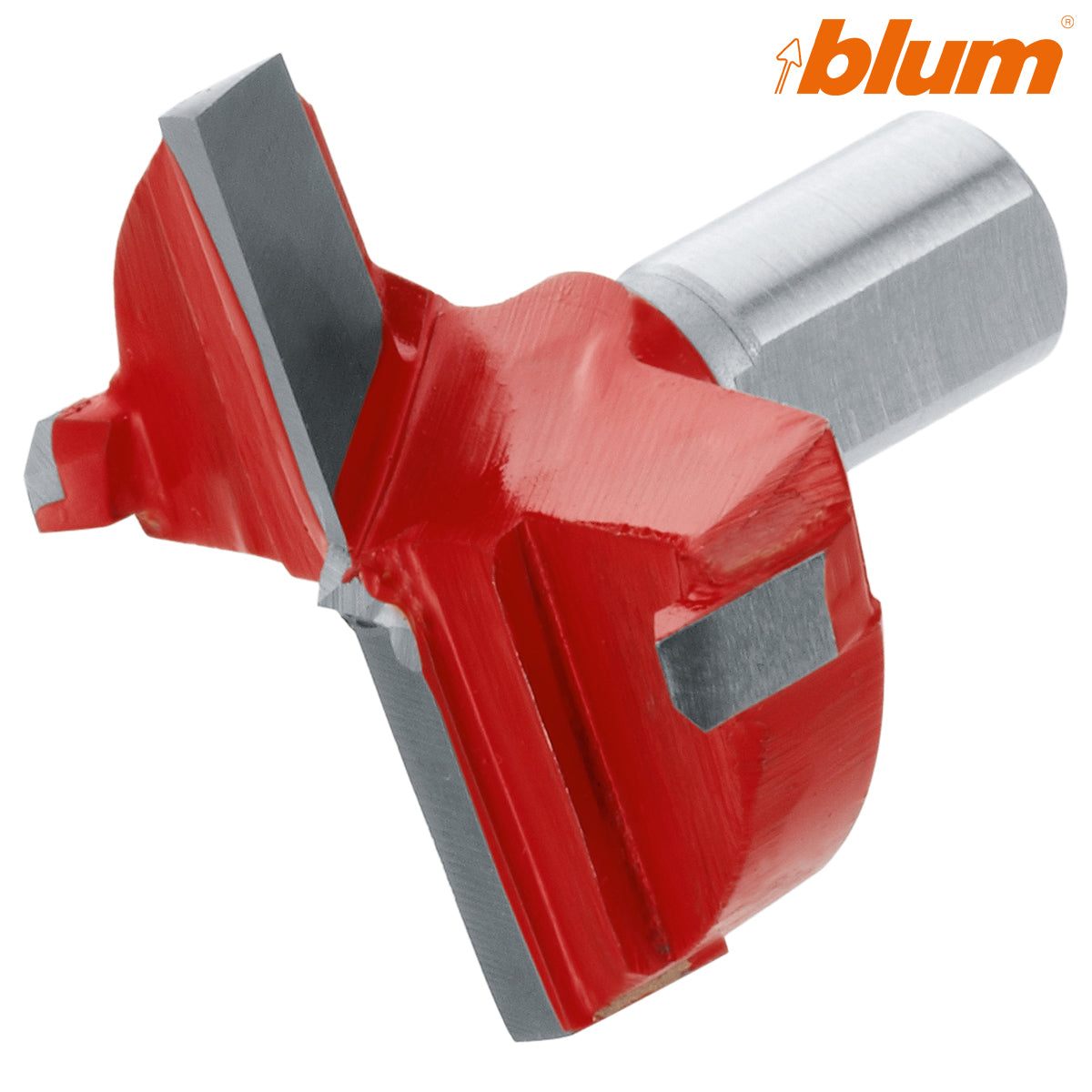

• Visible colour: Red body with silver cutting edges and shank
• Quantity: 1
• Rotation: Confirm before ordering
• Connection: Confirm before ordering
• Compatible machine: Confirm from machine documentation
• GTIN: Not verified

Package contents

• 1 × Blum D35 x 30 fittings drill bit, M01.ZB35.33

Machine, drill head, jig, hinges and other tooling are not included.

Related Blum drilling products

• Blum ECODRILL 35 mm right-hand fittings bit — a different size and reference; check the required system.
• Blum ECODRILL 8 mm right-hand drill bit
• All Blum assembly tools, jigs and drilling accessories

Frequently asked questions

Need help? Send Hart Wholesale the existing bit reference and machine or drilling-head model before ordering.
