The Blum AVENTOS HL top 22Q080Z connecting-piece set joins two Ø20 mm cross-stabiliser rod sections in wide parallel-lift cabinets. Blum specifies this arrangement from an internal cabinet width of 1190 mm and a cabinet width of 1228 mm, providing the central connection required when the stabiliser uses two cut rod sections.

This genuine Blum set contains the connector, fixing, cover caps and rod adapters. The 22Q1076U round cross-stabiliser rod is not included and must be ordered separately.

For wide AVENTOS HL top cabinets

Use 22Q080Z when the internal cabinet width LW is at least 1190 mm and overall cabinet width KB is at least 1228 mm. It is a connecting set for the cross stabiliser, not a substitute for the rod, lift mechanisms or lever arms.

Cutting calculation

Blum specifies the cutting length for each rod section as:

LW ÷ 2 − 105 mm

LW means internal cabinet width. Measure the finished cabinet and follow current Blum planning and assembly information before cutting either rod.

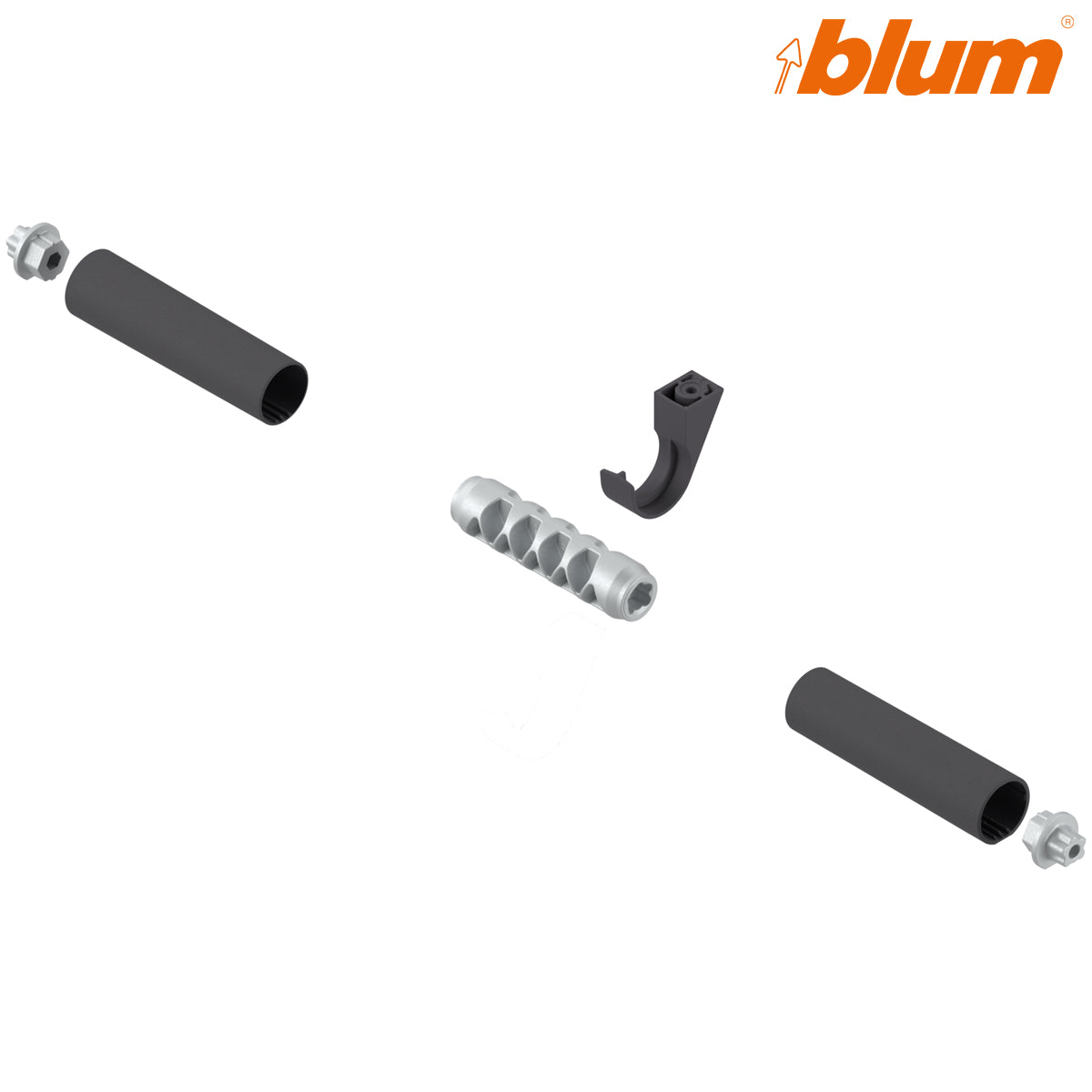

What is included?

• 1 × cross-stabiliser connecting piece
• 1 × fixing
• 2 × cross-stabiliser cover caps
• 2 × adapters for the cross-stabiliser rod

The 22Q1076U rod, lift mechanisms, lever arms, front-fixing brackets, decorative mechanism covers and any SERVO-DRIVE components are sold separately.

Product specifications

Selection checklist

1. Confirm the system is current AVENTOS HL top.
2. Verify internal width is at least 1190 mm and cabinet width is at least 1228 mm.
3. Match MPN 22Q080Z, ID 02272763, SKU HI22Q080Z and GTIN 9009494773491.
4. Order sufficient 22Q1076U rod and calculate two sections using LW ÷ 2 − 105 mm.
5. Confirm all remaining mechanisms, arms, brackets and covers using current Blum planning data.

Frequently asked questions

Is the cross-stabiliser rod included?

No. Order the 22Q1076U round rod separately and cut it to the documented dimensions.

When is this connecting set required?

Blum documents it from internal cabinet width 1190 mm and cabinet width 1228 mm, where two stabiliser-rod sections are joined centrally.

Is this one component?

No. The package contains one connecting piece, one fixing, two cover caps and two rod adapters.

Does it replace the lever arms?

No. It connects the stabiliser-rod sections within a separately planned HL top installation.

Order the matching rod and related parts from the Blum AVENTOS HL top range.
