The Blum AVENTOS HL top 22L2500 lift-mechanism set is the screw-fixed mechanism pair for parallel-lift cabinets from 390 to 580 mm high. AVENTOS HL top raises a single front vertically while keeping it parallel to the cabinet, leaving the storage area accessible without folding the front.

The set contains two symmetrical zinc-plated steel mechanisms with Blum's positioning system and eight 4×35 mm chipboard screws. Lever arms and other installation parts are selected separately.

For 390-580 mm AVENTOS HL top cabinets
Use 22L2500 where the planned cabinet height is within 390-580 mm and chipboard-screw fixing is required. Do not confuse it with 22L2510, which covers the same height range but uses pre-mounted system screws.

Select the lever-arm set by cabinet height and front weight including the handle. This is not a complete kit.

What is supplied?

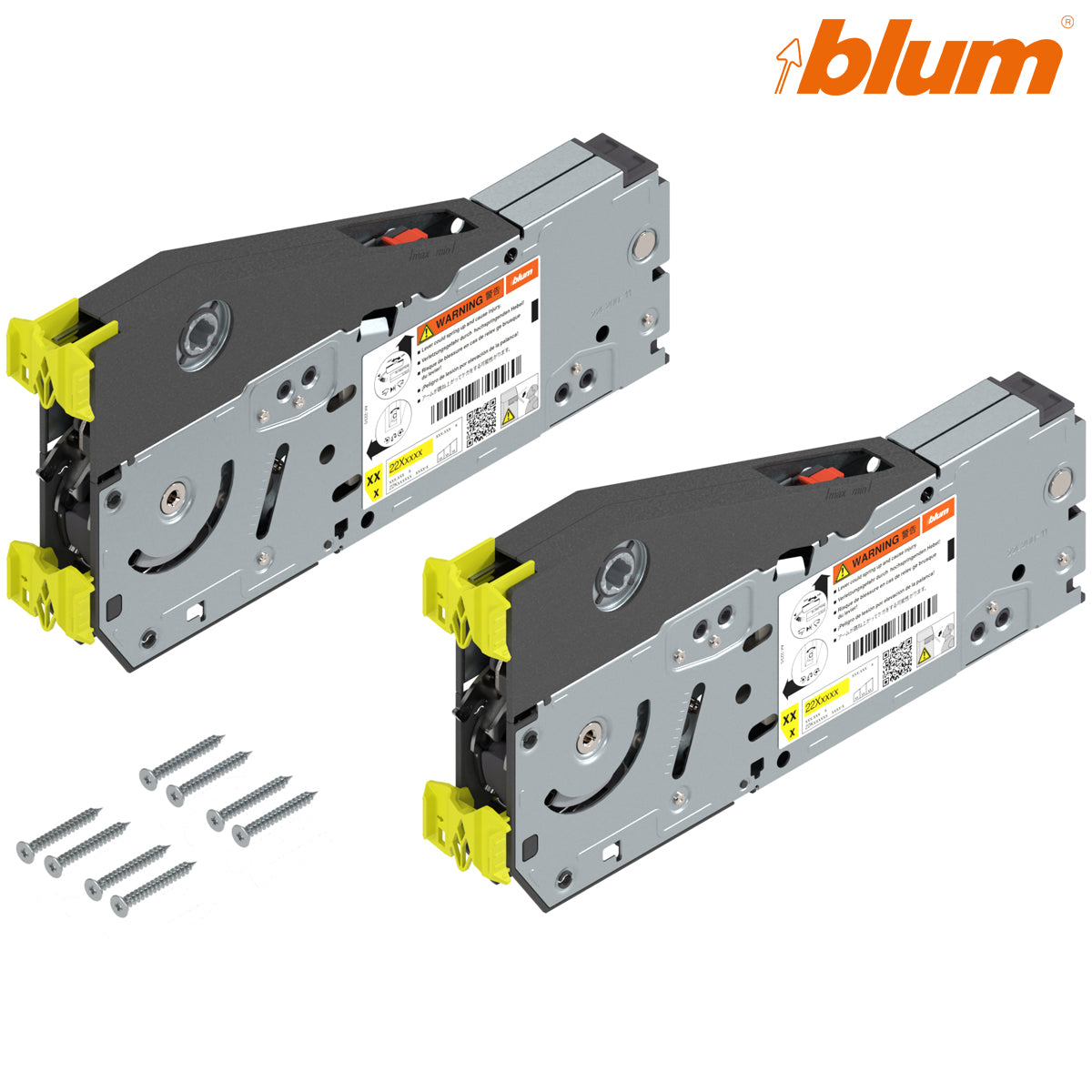

• 2 × symmetrical AVENTOS HL top 22L2500 lift mechanisms
• Integrated positioning system
• 8 × chipboard screws, 4×35 mm

Lever arms, cross-stabiliser parts, front-fixing brackets, cover caps, hinges and SERVO-DRIVE electrical components are not included.

Technical attributes

Select the matching lever arms
Pair the mechanisms with the appropriate AVENTOS HL top arm set. Blum documents 22L3800 for cabinet heights 390-540 mm and front weights 2.00-12.25 kg, and 22L3900 for 480-580 mm and 2.50-14.00 kg; stated weights include the handle. Use current planning data for the final selection.

Complete the HL top installation
Installation also requires the specified arms and cross stabiliser, front brackets and 22.8000 covers. Powered operation needs separately planned SERVO-DRIVE parts.

Selection checklist

1. Confirm the system is AVENTOS HL top and requires parallel movement.
2. Verify cabinet height is within 390-580 mm.
3. Confirm chipboard-screw fixing is required rather than pre-mounted system screws.
4. Match MPN 22L2500, ID 06119711, SKU HI22L2500 and barcode 9009494771626.
5. Select arms and remaining components from Blum's current planning data.

Frequently asked questions

Are two mechanisms included?
Yes. The package contains two symmetrical mechanisms, the positioning system and eight chipboard screws.

Are lever arms included?
No. Choose the correct arm set separately using cabinet height and front weight including the handle.

What is the difference between 22L2500 and 22L2510?
Both cover 390-580 mm cabinet heights. Part 22L2500 uses chipboard screws and a positioning system; 22L2510 has pre-mounted system screws.

Is SERVO-DRIVE supplied?
No. The mechanisms are suitable for a planned SERVO-DRIVE application, but all powered components are separate.
