The Blum AVENTOS HS 20S2F00.05 Type F lift-mechanism set is the highest-capacity mechanism option for original-generation AVENTOS HS cabinets from 526 to 675 mm high. It forms part of an up-and-over lift system that moves a large single-piece front upwards and over the cabinet.

The mechanisms incorporate BLUMOTION for soft and controlled closing when installed as part of a correctly specified AVENTOS HS system. Spring-force adjustment allows the completed installation to be matched to the cabinet height and total front weight, including the handle.

Pack contents

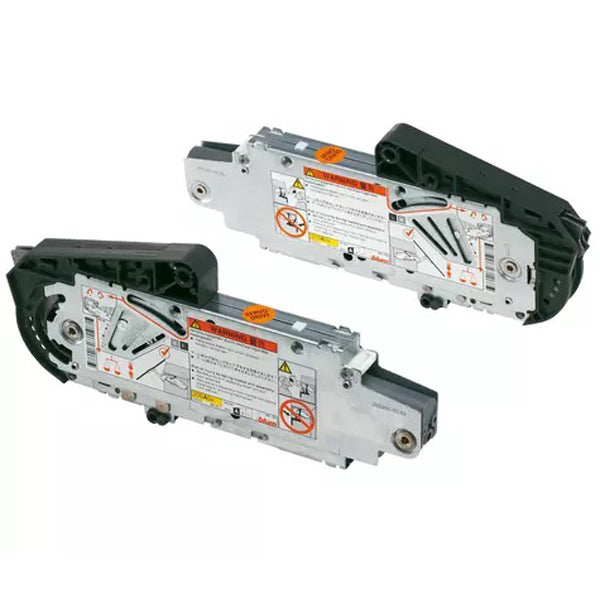

• 2 x symmetrical AVENTOS HS lift mechanisms
• 10 x chipboard fixing screws, 4 x 35 mm

Key features

• Original-generation Blum AVENTOS HS lift-mechanism set
• Type F mechanism for the highest front-weight range in the 526–675 mm cabinet-height group
• Creates an up-and-over movement for a single-piece cabinet front
• Integrated BLUMOTION for soft and effortless closing
• Infinitely adjustable spring force
• Mechanisms are symmetrical and can be installed on either cabinet side
• Minimum internal cabinet depth: 276 mm
• Suitable for correctly configured cabinets up to 1800 mm wide

Front-weight selection

The permitted total front weight changes according to the exact cabinet height. Blum specifies the following reference points for the Type F mechanism:

These figures are reference points rather than one continuous weight range. Blum provides separate values at 5 mm cabinet-height intervals. Use the Blum Product Configurator to verify the correct mechanism for the precise cabinet height, front construction and total front weight.

Required separately

This mechanism set is not a complete AVENTOS HS installation. The following components must be selected separately:

• 20S3500.06 standard lever-arm set, or the appropriate SERVO-DRIVE lever-arm set
• 20Q1061UN round cross-stabiliser rod, cut to the required cabinet width
• 20Q153ZN connecting set for internal cabinet widths of 1190 mm and above
• Suitable front fixing brackets
• Compatible AVENTOS HS cover-cap set

Standard and SERVO-DRIVE installations

The 20S2F00.05 lift mechanisms can form part of either a standard mechanical or correctly specified SERVO-DRIVE installation. The required lever arms, covers and electrical components depend on the selected system:

• Use 20S3500.06 lever arms for a standard mechanical installation
• Use 21S3500.01 lever arms and the appropriate electrical components for SERVO-DRIVE
• The SERVO-DRIVE motor, switches, power supply and cabling are not included

Compatibility warning

Check the system generation before ordering: 20S2F00.05 belongs to the original AVENTOS HS range. It must not be confused with current-generation AVENTOS HS top mechanisms.

AVENTOS HS creates an up-and-over movement. It is not an AVENTOS HL parallel lift or an AVENTOS HF bi-fold lift. The original HS system requires the round 20Q1061UN cross stabiliser; do not substitute the oval AVENTOS HL stabiliser.

Product details

• Brand: Blum
• Range: Original AVENTOS HS
• Component: Type F lift-mechanism set
• Movement: Up-and-over lift for a single-piece front
• Cabinet-height application: 526–675 mm
• Maximum cabinet width: 1800 mm
• Minimum internal cabinet depth: 276 mm
• Manufacturer part number: 20S2F00.05
• Hart SKU: HI20S2F00
• Finish/colour: Zinc
• Motion technology: BLUMOTION soft close; suitable for a separately configured SERVO-DRIVE installation
• Supplied as: One set containing two mechanisms and fixing screws
• Complete lift system: No — lever arms and other system components are required separately

Browse the Blum AVENTOS lift systems and components or use the Blum Product Configurator to verify the complete installation specification.
