Convert compatible MOVENTO runners and LEGRABOX drawer components to handleless push-to-open operation with this TIP-ON BLUMOTION L1 set. Pressing the drawer front activates the mechanical opening support, while BLUMOTION provides controlled soft closing.

The L1 unit is designed for compatible 40kg cabinet profiles and pull-outs with a recommended total weight of up to 20kg. It is suitable for nominal runner lengths from 350–600mm. Confirm the runner type, length and expected total drawer weight before ordering.

Push-to-open with soft closing

TIP-ON BLUMOTION combines mechanical push-to-open convenience with soft-close control. It is suitable for handleless kitchen drawers, fitted furniture, bedroom storage and utility units where clean, uninterrupted drawer fronts are required.

The system operates mechanically and requires no electrical connection. Correct component selection, accurate installation and front-gap adjustment are essential for reliable opening and closing.

L1 unit for lighter pull-outs

The L1 operating range is recommended for a total pull-out weight of up to 20kg. Total pull-out weight means the combined weight of the drawer, drawer front and expected contents. The L1 set must be used with a compatible 40kg cabinet profile.

• System: TIP-ON BLUMOTION
• Unit: L1
• Recommended total pull-out weight: Up to 20kg
• Compatible runner lengths: 350–600mm nominal length
• Cabinet profile: Compatible 40kg profile
• Compatible systems: Selected MOVENTO and LEGRABOX applications
• Opening: Mechanical push-to-open
• Closing: Soft-close BLUMOTION

Set contents

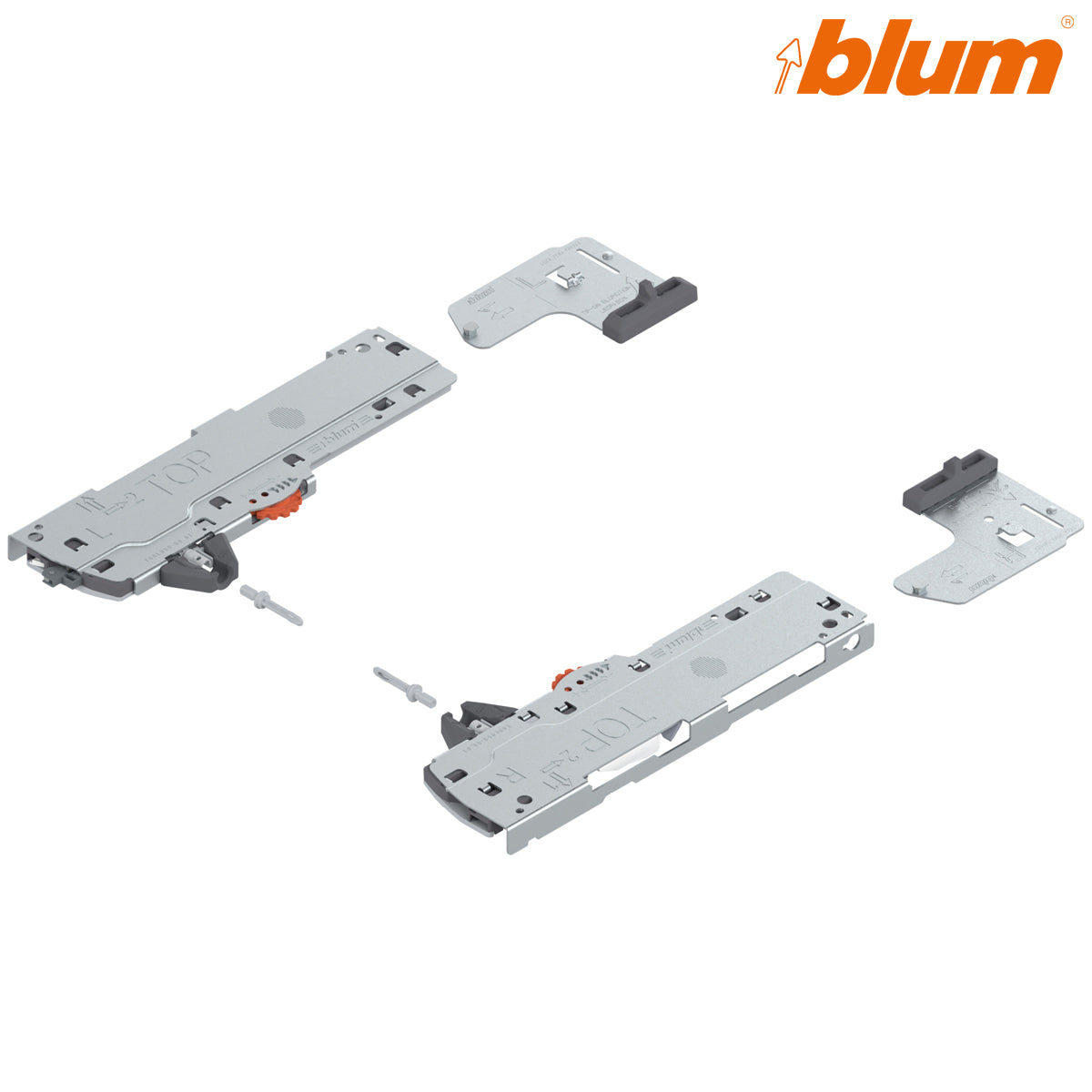

• TIP-ON BLUMOTION operating units for the left and right sides
• TIP-ON BLUMOTION latches for the left and right sides
• Two synchronisation adapters

Please note: Drawer runners and the synchronisation connecting bar are not included. The correct connecting bar must be ordered separately when required.

Synchronised opening

Synchronisation enlarges the trigger area across the drawer front, helping the push-to-open action respond consistently when the front is pressed away from the centre. The included adapters connect the operating units to the separately available synchronisation bar.

Check the internal cabinet width and relevant system requirements before selecting and cutting the bar. Follow the correct MOVENTO or LEGRABOX fitting instructions.

Compatibility checks

Before ordering, verify that the drawer uses compatible MOVENTO runners or LEGRABOX drawer components, a suitable 40kg cabinet profile and a nominal runner length between 350mm and 600mm. Calculate the expected total weight of the completed pull-out to ensure it does not exceed the recommended L1 range.

This is a system-specific conversion set and is not a universal push-to-open attachment. Do not use it with unverified drawer runners.

Frequently asked questions

What does this set do?

It adds mechanical push-to-open operation and controlled soft closing to compatible MOVENTO or LEGRABOX drawer runners.

Which drawer weights is the L1 unit designed for?

It is recommended for a total pull-out weight of up to 20kg, including the drawer, drawer front and contents.

Which runner lengths are compatible?

The L1 set is intended for compatible nominal runner lengths from 350mm to 600mm.

Which cabinet profile is required?

The L1 unit must be combined with a compatible 40kg cabinet profile.

Are the drawer runners included?

No. This is the TIP-ON BLUMOTION operating set. Compatible MOVENTO or LEGRABOX runners must be purchased separately or already installed.

Is the synchronisation connecting bar included?

No. Two synchronisation adapters are included, but the connecting bar is a separate product.

Does the system require electricity?

No. The opening support is entirely mechanical.
