Convert compatible MOVENTO runners and LEGRABOX drawer components to handleless push-to-open operation with this TIP-ON BLUMOTION S1 set. Pressing the drawer front activates the mechanical opening support, while BLUMOTION provides controlled soft closing.

The S1 unit is designed for compatible 40kg cabinet profiles with nominal runner lengths of 270–300mm. Its recommended total pull-out weight is above 10kg and up to 20kg. Confirm the runner type, nominal length and expected total drawer weight before ordering.

Push-to-open with soft closing

TIP-ON BLUMOTION combines mechanical push-to-open convenience with soft-close control. It is ideal for compact handleless kitchen drawers, fitted furniture, bedroom storage and utility units where clean, uninterrupted fronts are required.

The system operates mechanically and requires no electrical connection. Correct component selection, accurate installation and front-gap adjustment are essential for reliable opening and closing.

S1 unit for compact drawer applications

The S1 operating range is recommended for a total pull-out weight above 10kg and up to 20kg. Total pull-out weight means the combined weight of the drawer, drawer front and expected contents. The S1 set must be used with a compatible 40kg cabinet profile.

• System: TIP-ON BLUMOTION
• Unit: S1
• Recommended total pull-out weight: Above 10kg and up to 20kg
• Compatible runner lengths: 270–300mm nominal length
• Cabinet profile: Compatible 40kg profile
• Compatible systems: Selected MOVENTO and LEGRABOX applications
• Opening: Mechanical push-to-open
• Closing: Soft-close BLUMOTION

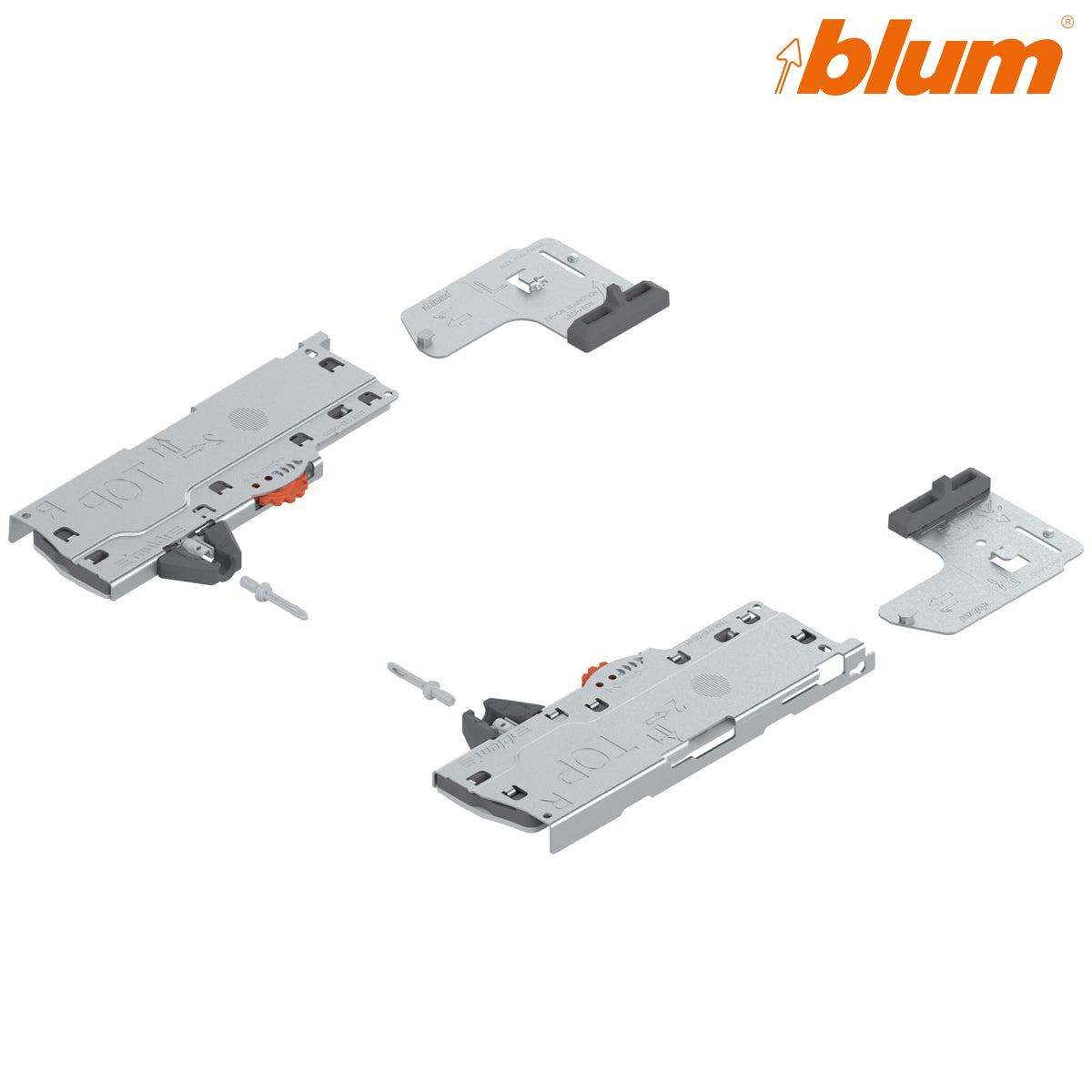

Set contents

• TIP-ON BLUMOTION operating units for the left and right sides
• TIP-ON BLUMOTION latches for the left and right sides
• Two synchronisation adapters

Please note: Drawer runners and the synchronisation connecting bar are not included. The correct connecting bar must be ordered separately when required.

Synchronised opening

Synchronisation enlarges the trigger area across the drawer front, helping the push-to-open action respond consistently when the front is pressed away from the centre. The included adapters connect the operating units to the separately available synchronisation bar.

Check the internal cabinet width and relevant system requirements before selecting and cutting the bar. Follow the correct MOVENTO or LEGRABOX fitting instructions.

Compatibility checks

Before ordering, verify that the drawer uses compatible MOVENTO runners or LEGRABOX drawer components, a suitable 40kg cabinet profile and a nominal runner length of 270mm or 300mm. Calculate the expected total pull-out weight to ensure that it is above 10kg and no more than 20kg.

This is a system-specific conversion set and is not a universal push-to-open attachment. Do not use it with unverified drawer runners.

Frequently asked questions

What does this set do?

It adds mechanical push-to-open operation and controlled soft closing to compatible MOVENTO or LEGRABOX drawer runners.

Which drawer weights is the S1 unit designed for?

It is recommended for a total pull-out weight above 10kg and up to 20kg, including the drawer, front and contents.

Which runner lengths are compatible?

The S1 set is intended for compatible 270mm and 300mm nominal runner lengths.

Which cabinet profile is required?

The S1 unit must be combined with a compatible 40kg cabinet profile.

Are the drawer runners included?

No. This is the TIP-ON BLUMOTION operating set. Compatible MOVENTO or LEGRABOX runners must be purchased separately or already installed.

Is the synchronisation connecting bar included?

No. Two synchronisation adapters are included, but the connecting bar is a separate product.

Does the system require electricity?

No. The opening support is entirely mechanical.
